CONNECTORS QUICK GUIDE

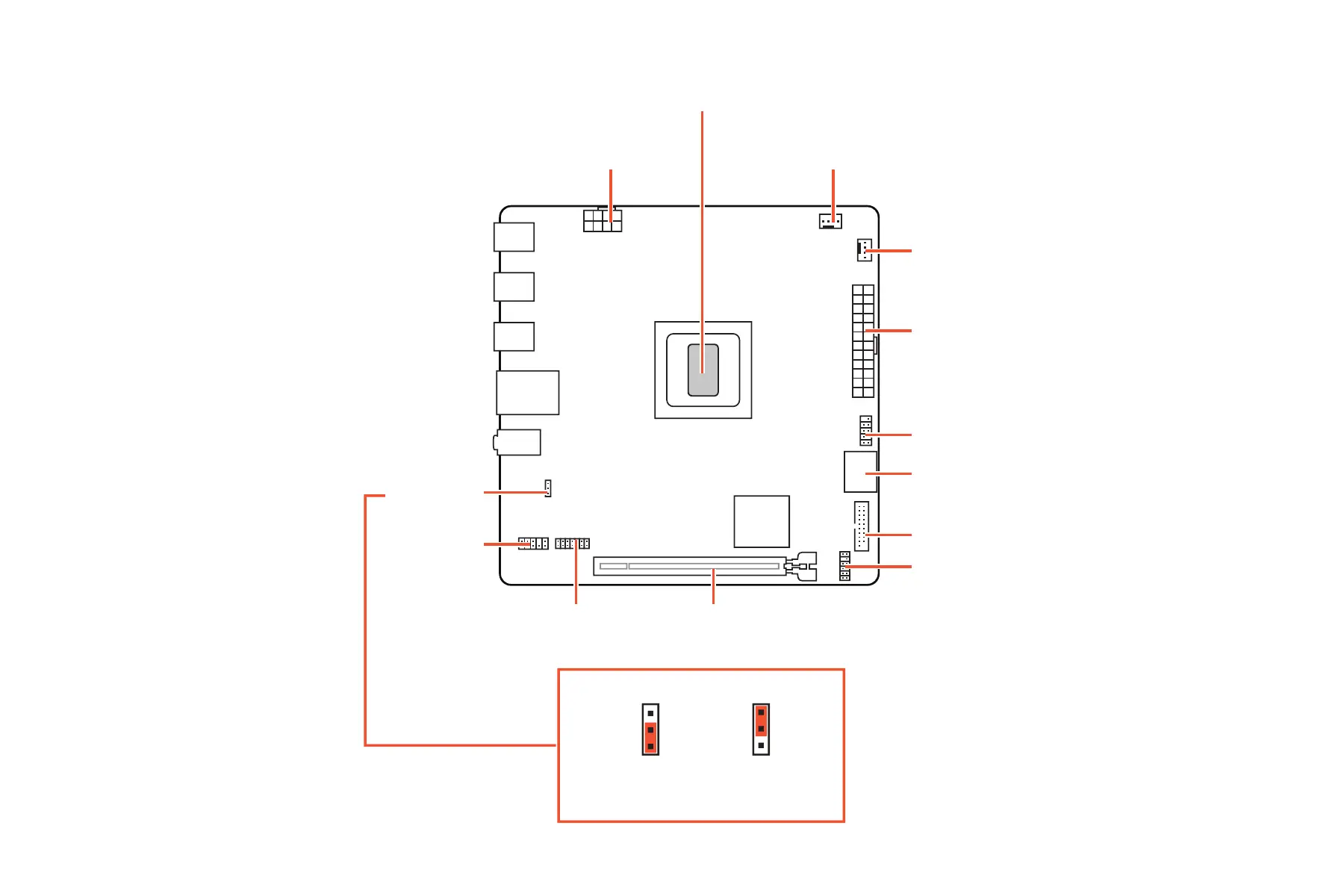

OVERVIEW OF COMPONENTS
AMD4700S Desktop Kit Quick Guide
Overview of Components
Rear I/O Panel
SYS_FAN
CPU_FAN
CPU
CLR_CMOS
F_AUDIO
ATX_PWR
CPU_PWR
F_PANEL
PCI_E
JSPI
SATA
JUSB
USB3.2 Gen2 10Gbps
USB3.2 Gen1 5Gbps
USB2.0
Mic-in
Line-in
Line-out
1G LAN
JTPM
Specifications
CPU AMD 4700S 8-Core processor
Memory
16G GDDR6 or 8G GDDR6
(Depend on BOM option)
FCH AMD A77E Fusion Controller Hub
Super I/O ITE IT8772E
LAN Asix AX88179 Gigabit Ethernet controller
Audio Codec Realtek ALC897
BIOS ROM 16MB
Expansion Slot 1x PCIe x16 slot, supports x4 signal
Internal
connectors
· 1x 24-pin ATX main power connector
· 1x 8-pin ATX 12V power connector
· 2x SATA 6Gb/s connectors
· 1x USB3.2 Gen1 5Gbps connector
· 1x 4-pin CPU fan connector
· 1x 4-pin system fan connector
· 1x Front panel audio connector
· 1x System panel connector
· 1x Clear CMOS jumper
· 1x Dubug 80 port connector
Rear I/O
· 4x USB2.0 Type-A ports
· 3x USB3.2 Gen2 10Gbps Type-A ports
· 1x LAN (RJ45) port
· 1x USB3.2 Gen1 5Gbps Type-A ports
· 3x audio jacks
1
10 11
20
JUSB
1 FJUSB3 11 USB12P
2USB_SS_RX3N 12 USB12N
3USB_SS_RX3P 13 Ground
4 Ground 14 USB_SS_TX2P_R
5USB_SS_TX3N_R 15 USB_SS_TX2N_R
6USB_SS_TX3P_R 16 Ground
7 Ground 17 USB_SS_RX2P
8USB13N 18 USB_SS_RX2N
9USB13P 19 FJUSB3
10 NC 20 No Pin
1
210
9
F_AUDIO
1
MIC2 _L & F_MIC2_L
2 Ground
3
MIC2 _R & F_MIC2_R 4NC
5
LINE2_R & F_LINE2_R 6MIC_JD
7 HPON8No Pin
9
LINE2_L & F_LINE2_L
10 LINE2_JD
1
214
13
JTPM
1LPC_CLK0 2 3VSB
3A_RST# 4VCC3
5LAD06SERIRQ
7LAD18VCC5
9LAD210 No Pin
11 LAD3 12 Ground
13 LFRAME#14 Ground
12
10 9
F_PANEL
1 HDD LED+ 2 Power LED+
3 HDD LED- 4Power LED-
5 Reset switch -6Power switch+
7 Reset switch +8Power switch-
9NC10 No Pin
12
12 11
JSPI
1 +3.3V_SPI 2 +3.3V_SPI
3FCH_SPI_DATAIN 4FCH_SPI_DATAOUT
5FCH_SPI_CS#R6FCH_SPI_CLK
7 Ground 8 Ground
9FCH_PWRGD 10 No Pin
11 FCH_SPI_WP#R 12 SPI_HOLD#
11
Normal Clear CMOS
G52-XXXXXXX

AMD 4700S Specifications

General

Memory Type	GDDR6
Memory Capacity	16GB
Ethernet	1 x Gigabit Ethernet
CPU	AMD 4700S
PCIe Slots	1 x PCIe x16
USB Ports	4 x USB 3.2 Gen1, 4 x USB 2.0
Audio	Realtek ALC887
Chipset	Custom AMD
CPU Socket	Soldered
Memory Slots	None (Soldered)
Expansion Slots	1 x PCIe x16
