8 | AMD 4700S 8-CORE DESKTOP KIT USER MANUAL

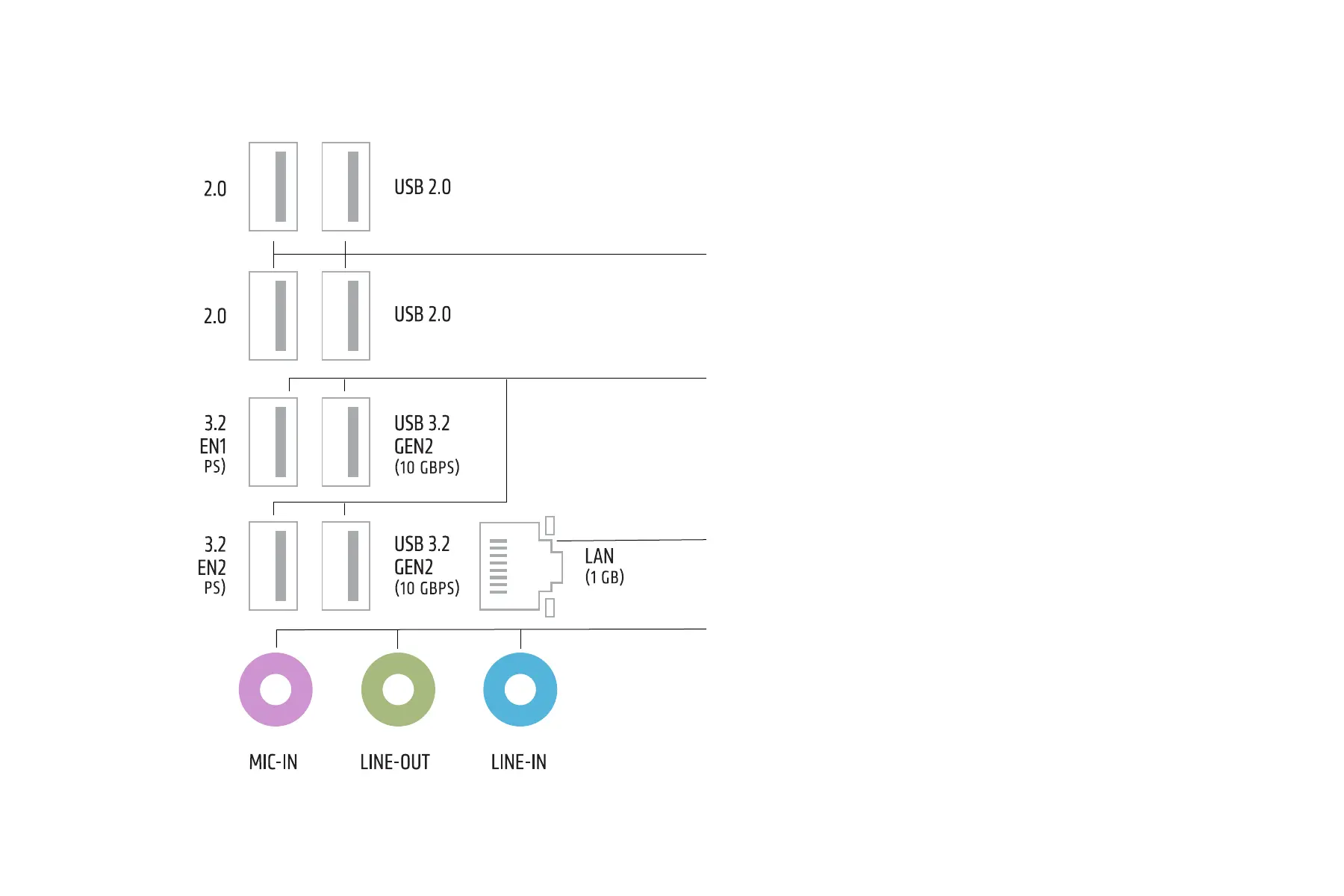

REAR I/O PANEL QUICK GUIDE
USB 2.0 Port–USB 2.0 port is for attaching USB
2.0 devices such as keyboard, mouse, or other USB
2.0-compatible devices.
USB 3.2 Port– USB 3.2 port is backward-compatible with
USB 2.0 devices. It supports data transfer rate up to 5
Gbit/s for Gen 1 and up to 10 Gbit/s for Gen 2.
In order to use USB 3.2 devices, you must connect to a
USB 3.2 port. If a USB cable is used, it must be USB 3.2
compliant.
LAN Port–The standard RJ-45 LAN jack is for connecting
to a Local Area Network (LAN).
Audio Ports–These connectors are used for audio devices.
The color of the jack refers to the function of the connector.
– PINK- Mic-In: Used as a connector for a microphone.
– GREEN- Line Out: Used as a connector for speakers or
headphone.
– BLUE- Line-In: Used for connecting external audio
outputting devices.
