Chapter 4
Display Configuration
This section describes how to configure displays and lists available display
connections for your graphics card.
4.1 AMD Radeon HD 79xx Connections
The following figure shows the display connections available on your AMD Radeon
HD 79xx graphics card.
Note: The baseplate may not appear exactly as depicted.

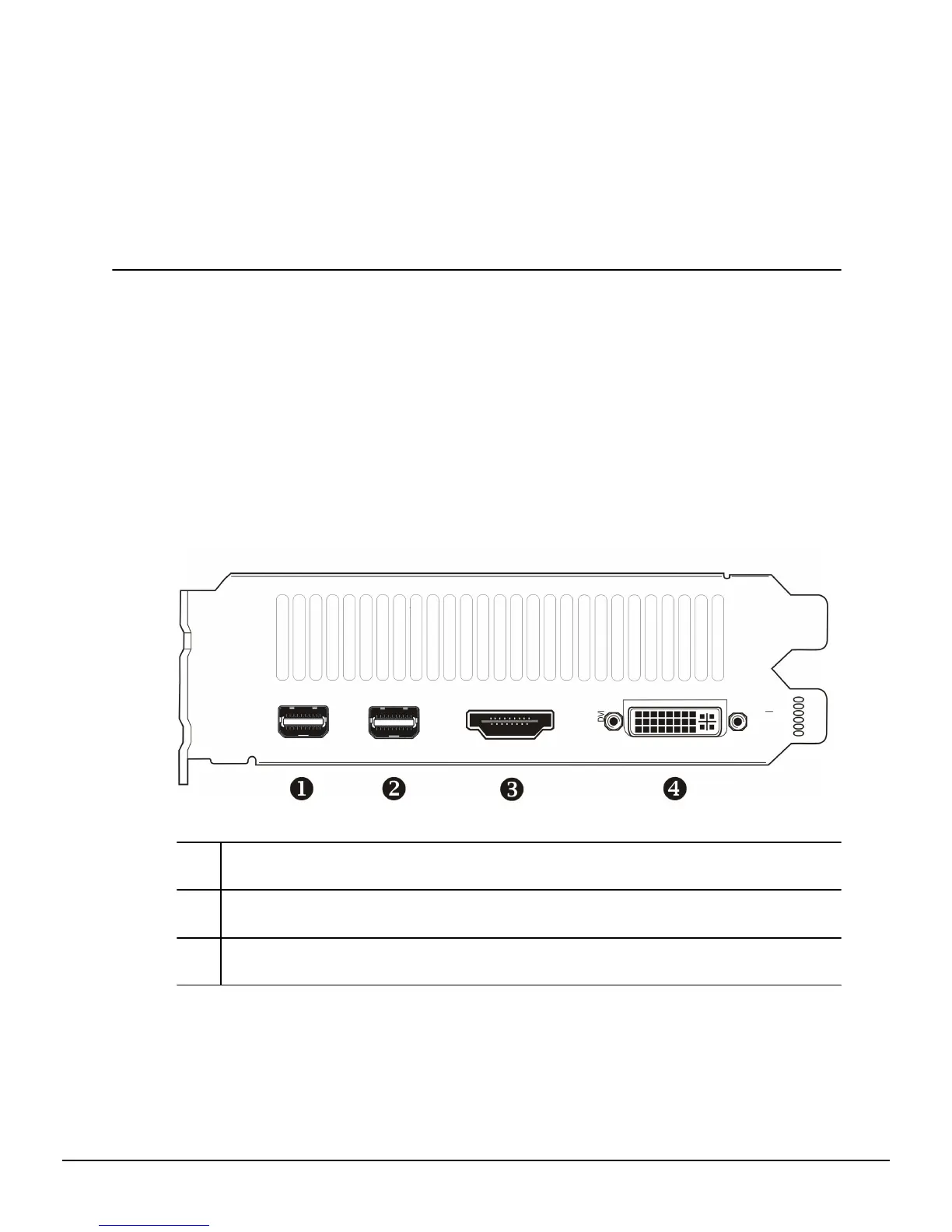

Figure 4–1 AMD Radeon HD 79xx Display Connections
1, 2 Mini DisplayPort (DP+) connection. Carries video and audio signals to
DisplayPort-compliant devices.
3 HDMI™ connection (Type A). Carries video and audio signals to HDMI-
compliant devices.
4 Dual-link DVI-I connection. Provides video digital signals and HDMI output
that is compatible with most HDMI-compliant devices.
4.2 Display Configurations
The following table lists options for attaching displays that are indirectly supported by
the connections on your graphics card.
©
