American Flame: AF-LMF Series Valve Kits
Rev. 4-26-21 Page 2
Table of Contents
Description & Contents Page 2
Installing into a pre-existing log set Page 4
Installing with a new log set Page 4
Clearances and Pilot Installation Page 5
Connecting a Remote Control Page 6
Lighting Instructions Page 7
Replacement Parts Page 8
Troubleshooting Page 10
Warranty Page 10
INSTALLER: Each valve kit is supplied with a (UR3-68) adapter that provides an option to
convert the inlet or outlet gas connection from 3/8” to a 1/2” flared fitting. Simply thread
the UR3-68 on to the inlet/outlet gas flared fitting as shown in Fig. 1. Note: No pipe joint
compound or thread tape is necessary. Ensure fittings are tight and test for gas leaks.

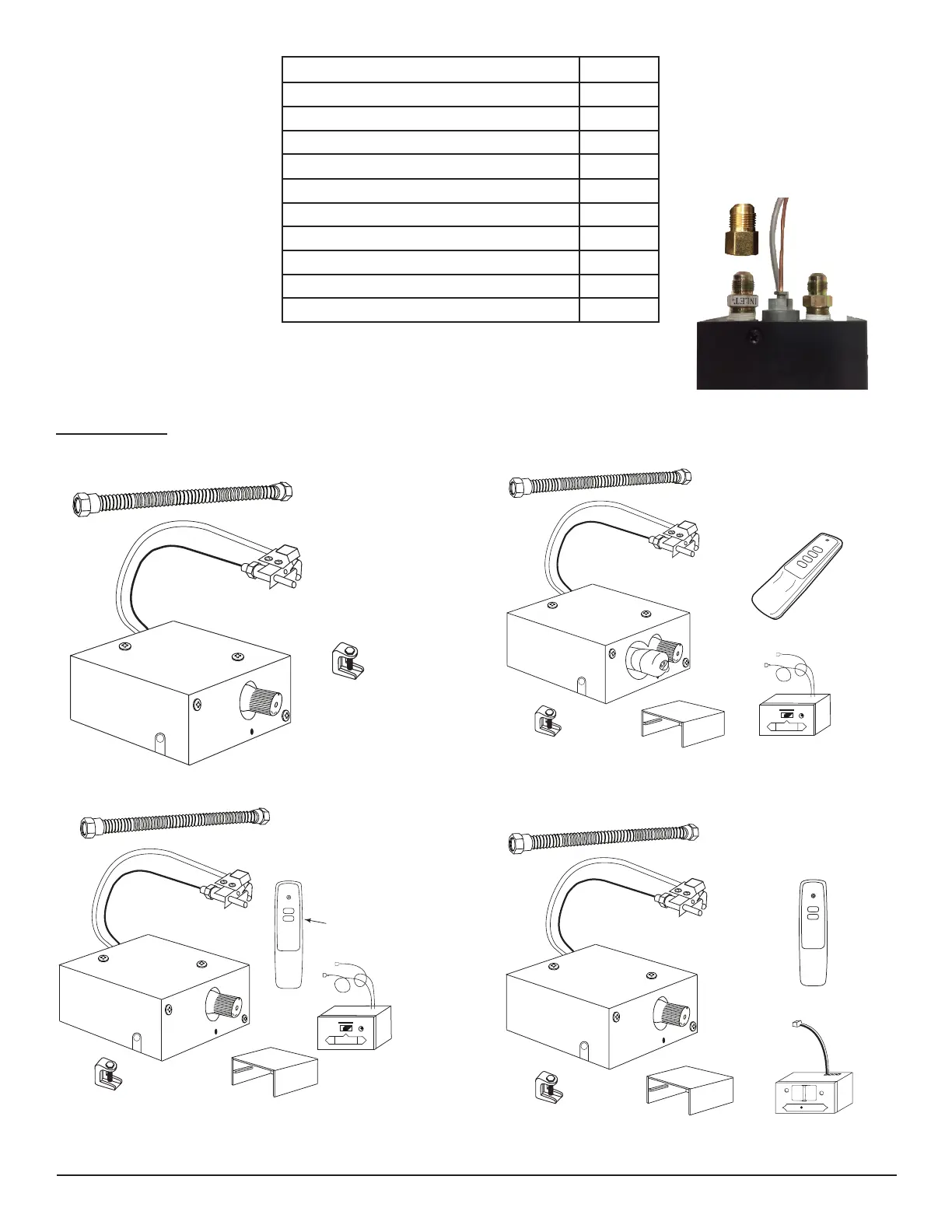

DESCRIPTION: This installation manual covers the four (4) valve kits. See Figs. 2-5. Read the description of each kit to
understand how each one operates. See each kit below and their contents.
Fig. 2 AF-LMF: Manual ON/OFF gas valve kit.
Fig. 1 Adapter installation.
ON
OFF
Stainless Flex Line to Burner
Thermocouple & Pilot assembly
Damper Clamp
ON
OFF
Stainless Flex Line to Burner
Thermocouple & Pilot assembly
Receiver Shield
Damper Clamp
Receiver
OFF
REMOTE
ON
LEARN
L
O
W
H
I
O
F
F
O
N
Transmitter
(RCAF-1020)
ON
OFF
Stainless Flex Line to Burner
Thermocouple & Pilot assembly
Receiver Shield
Damper Clamp
Receiver
Transmitter
(RCAF-1035)
ON/OFF
HML
REMOTE
OFF
LEARN
ADJ.
Fig. 3 AF-LMF-R: Manual ON/OFF gas with solenoid
and ON/OFF remote control.
Fig. 4 AF-LMF-RV: Manual ON/OFF gas with motor
drive and ON/OFF (Hi/Lo) remote control.
Fig. 5 AF-LMF-RVS: Manual ON/OFF gas with step
motor and ON/OFF (Hi/Med/Lo) remote control.
Damper Clamp
ON
OFF
Receiver Shield
Receiver
ON
OFF
Stainless Flex Line
Thermocouple & Pilot assembly
Transmitter
(CON-1001)
OFF
REMOTE
ON
LEARN
