american flame AF-LMF - Replacement Part List

American Flame: AF-LMF Series Valve Kits
Rev. 4-26-21 Page 7
ON
OFF
REMOTE
OFF
LEARN
ADJ.
1
4
6
7
9
8
12 13
12V
14
(Attached to Valve)
10
11
ON/OFF
HML
15
5
ON/HI
OFF
LO
16
19
18
17
2123

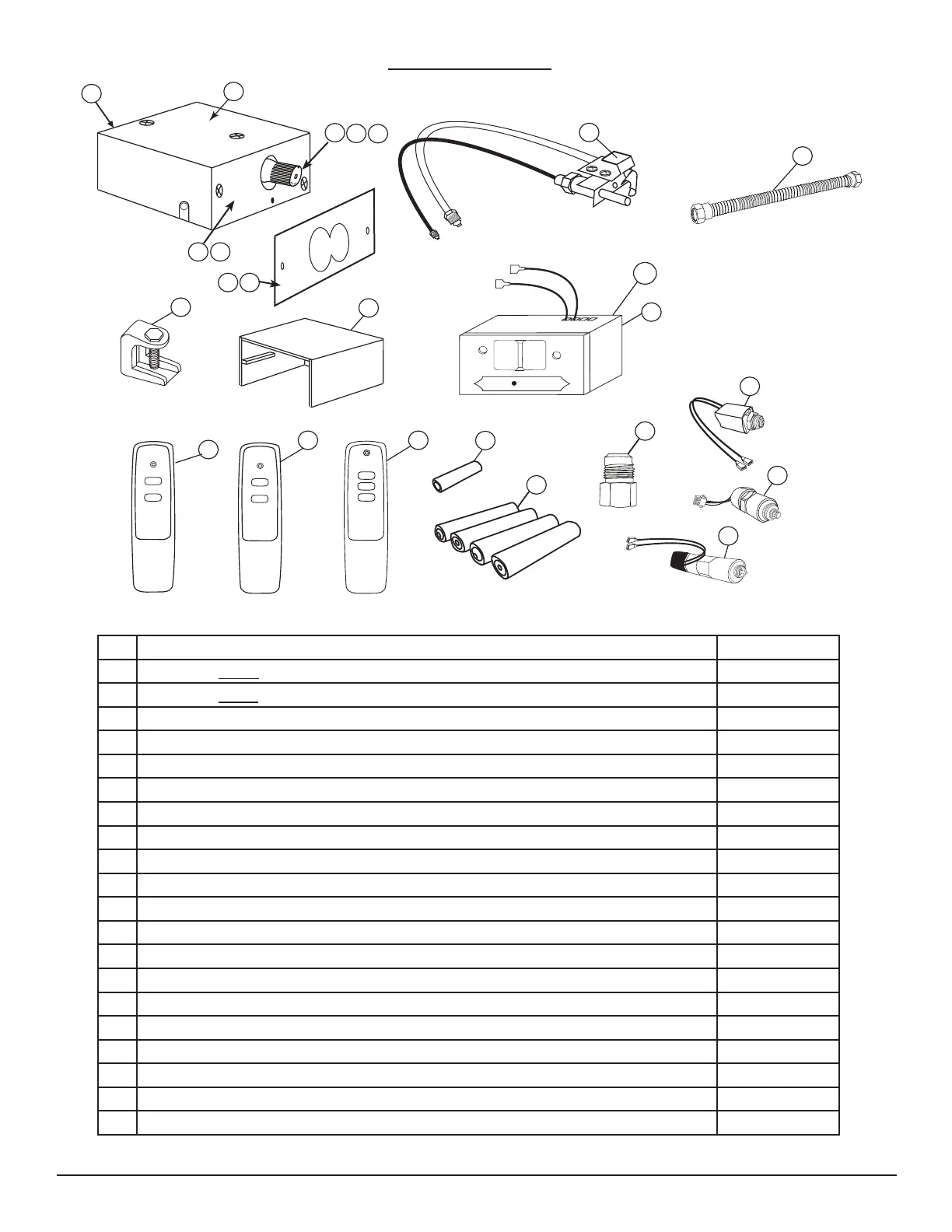

Replacement Part List
2
3
1. Manual Valve Assembly AF-LMF
2A. Gas Valve ONLY: Used on AF-LMF, AF-LMF-R, AF-LMF-RV AF-1000
2B. Gas Valve ONLY; Used on AF-LMF-RVS AF-1005
3A. Metal Face Plate for AF-LMF, AF-LMF-R, AF-LMF-RV 563-1
3B. Metal Face Plate for AF-LMF-RVS 563-8
4. 3/8” NPT to 3/8” Flared Connector U1-6C-S
5. PSE Pilot Assembly 2385-P
6. 10-inch Black Stainless Flex Connector T102-9898-10
7. Damper Clamp 685-14
8. Receiver Shield RS-1A
9. 6-volt DC Receiver (For AF-LMF-R & AF-LMF-RV) UN3-RX
10. 6-volt DC Receiver (For AF-LMF-RVS) RCAF-1035RX
11. ON/OFF Transmitter (For AF-LMF-R) CON1001TX
12. ON/OFF Hi/Med/Lo Transmitter (For AF-LMF-RVS) RCAF-1035TX
13. ON/OFF Hi/Lo Transmitter (For AF-LMF-RV) RCAF-1020TX
14. 12-volt Battery (For AF-LMF-R, RV & RVS Transmitters) BATT12VOLT
15. AA Batteries (4 Required on all 6-volt Receivers) BATTAA
16. 3/8” to 1/2” Adapter (Increases 3/8” flare to 1/2” flare) UR3-68
17. Solenoid (Used on AF-LMF-R gas valve) AF-1000S
18. Step Motor ( Provides Hi/Med/Lo on AF-LMF-RVS gas valve) AF-1000MOT
19. Motor Drive (Provides Hi/Lo on AF-LMF-RV gas valve) AF-1000MVH-L
Description
Item#
Part Number
AA
AA
AA
AA
ON
OFF
A
B
A
B
3
