AMERICAN Flow Control

Series 2500 Resilient Wedge Gate Valve

Page 3A-5

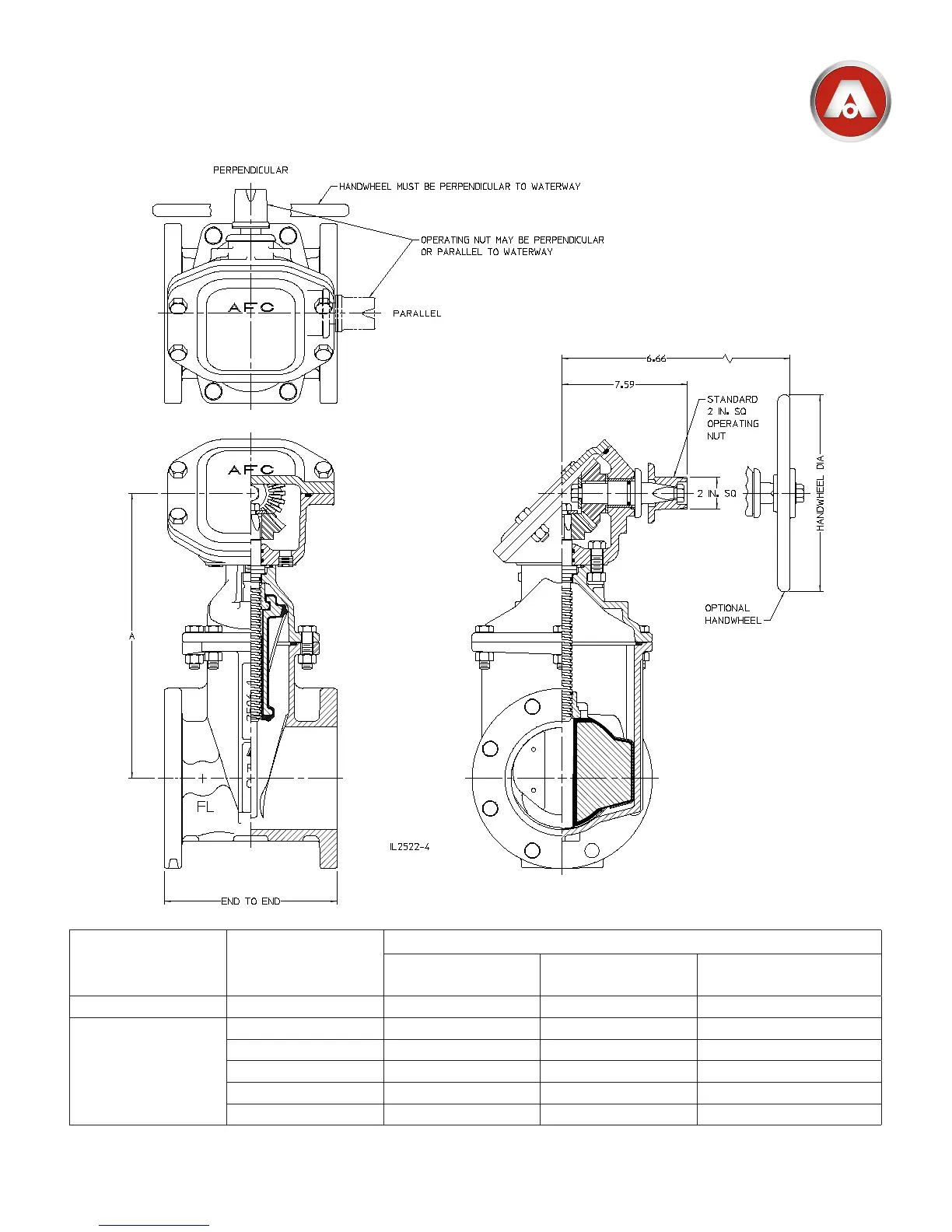

SERIES 2500 - NRS WITH ENCLOSED MITER GEARING DIMENSIONS, 3”–12” SIZES

Model Valve Size

Dimension

End to End

Flange x Flange

Handwheel Diameter

Series 2500 3” 12.72 8.00 8.00

Series 2500-1

4” 14.16 9.00 10.00

6” 17.03 10.50 12.00

8” 20.59 11.50 14.00

10” 24.22 13.00 14.00

12” 27.66 14.00 14.00
