Heritage & Titan Gas Ranges
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
12

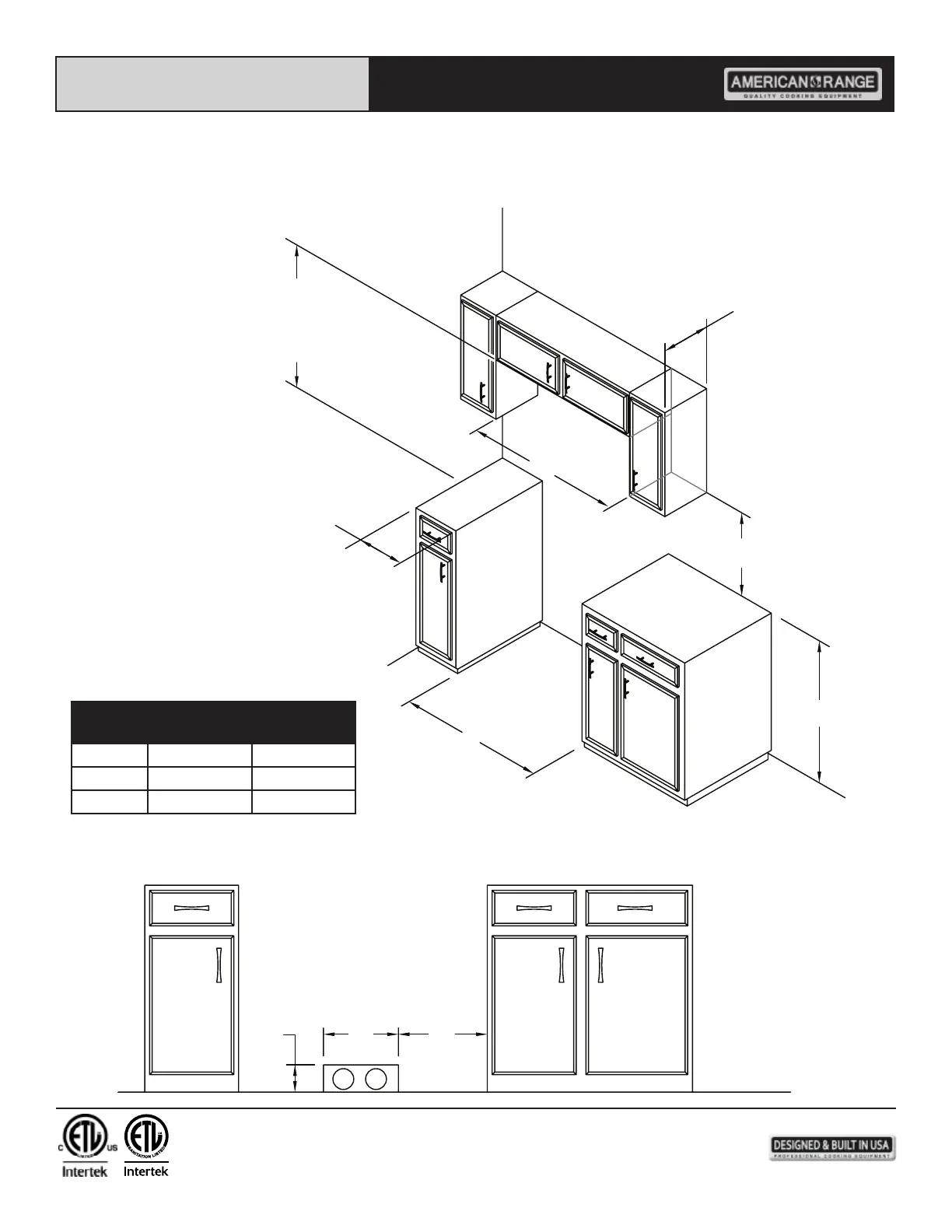

OVERALL DIMENSIONS
TITAN GAS RANGES
A
8" MIN.
24" MIN TO
NON-COMBUSTIBLE MATERIAL
30" MIN TO
COMBUSTIBLE MATERIAL
B
18" MIN.
13" MAX
36"
CABINET DEPTH
10" 14"
3-1/2"
ELECTRICAL & GAS
SUPPLY LOCATION
EG
RANGE
WIDTH
"A"
DIMENSION
"B"
DIMENSION
23-7/8" 24" 30"
29-7/8" 30" 36"
35-7/8" 36" 42"
