14

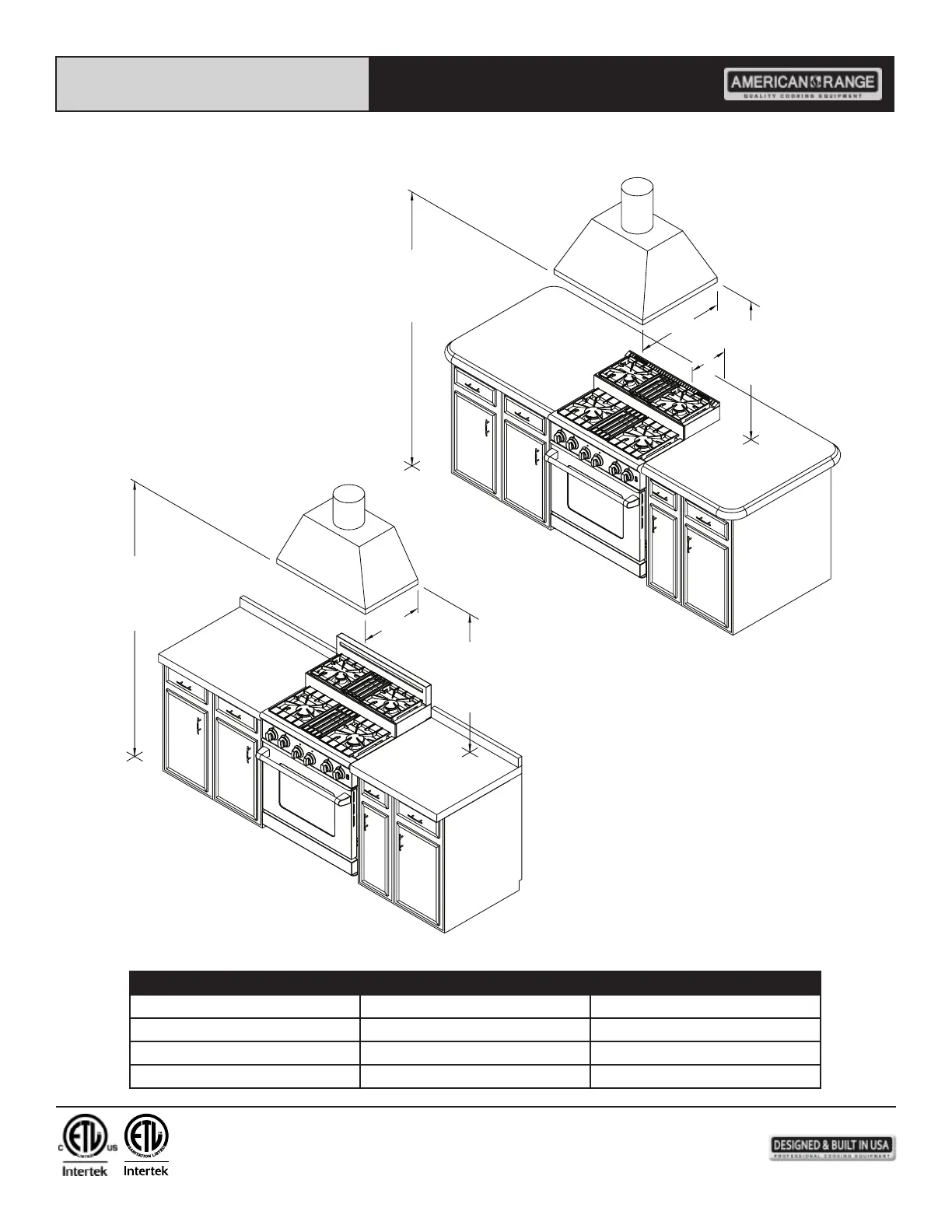

TITAN - VENT HOOD CLEARANCE DIMENSIONS
6"
30"
66" min.
TO
72" max.
30" min.
TO
36" max.
66" min.
TO
72" max.
30" min.
TO
36" max.
24"
VENT HOOD REQUIREMENTS & RECOMMENDATIONS
UNIT STANDARD COUNTER ISLAND INSTALLATION
24" Deep 30" Deep
48" Range 800-1200 CFM 800-1200 CFM
36" Range 600-800 CFM 600-1200 CFM
30" Range 500 CFM 500 CFM
