N(1)
L1
L2
2
3
These diagrams are subject to change without notice, please refer to the diagram supplied with the unit.
N(1)
L1
L2
2
3
1
2
1
2

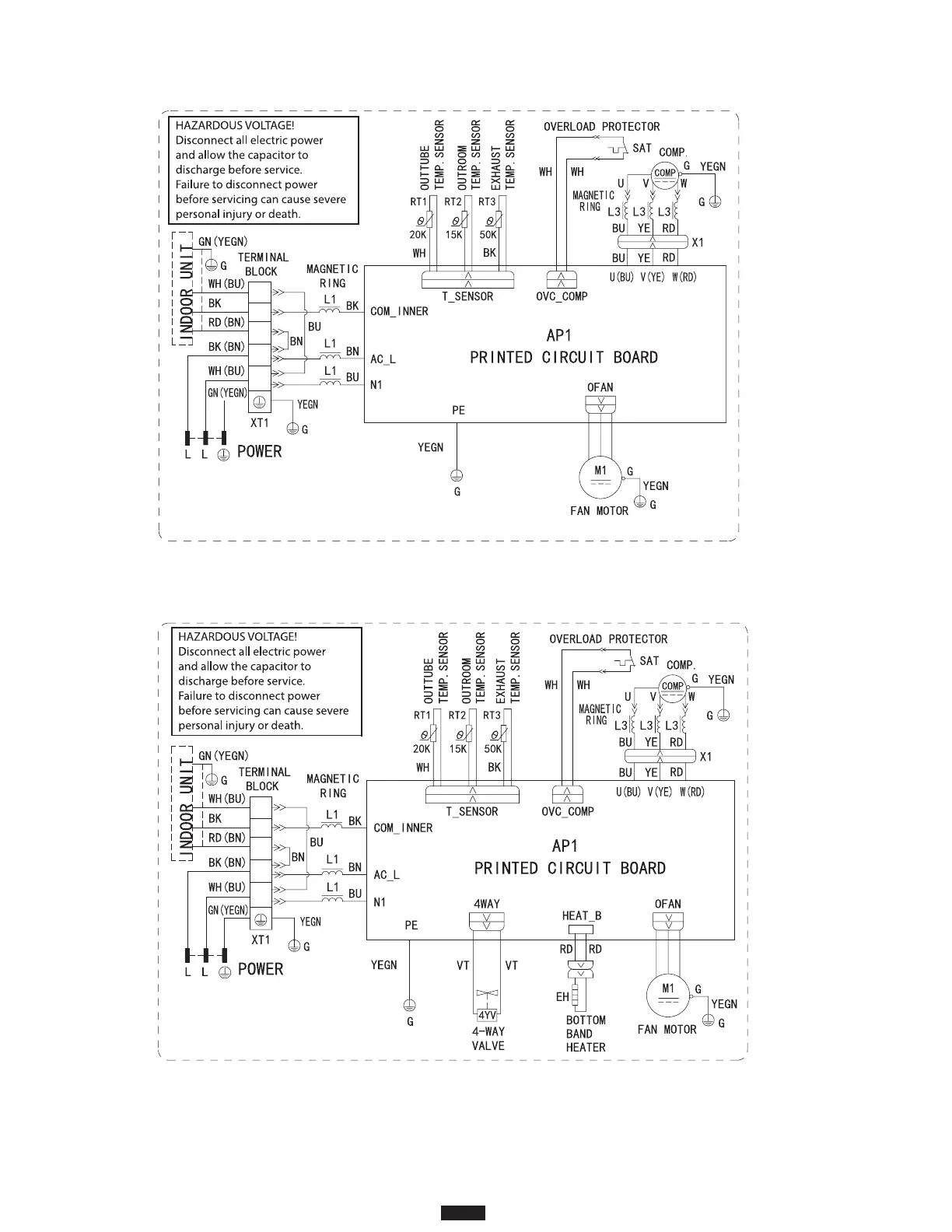

Outdoor Cooling Only Unit 18K-24K
Outdoor Heat Pump Only Unit 18K-24K
NOTE: The wiring diagrams in this guide are included as a reference. The manufacturer
has a policy of continuous product and product data improvement and reserves the
right to change design and speciļ¬cations without notice. Always check the unit
nameplate and wiring diagram for the actual unit requirements.
31
15 SEER Mini-Split
