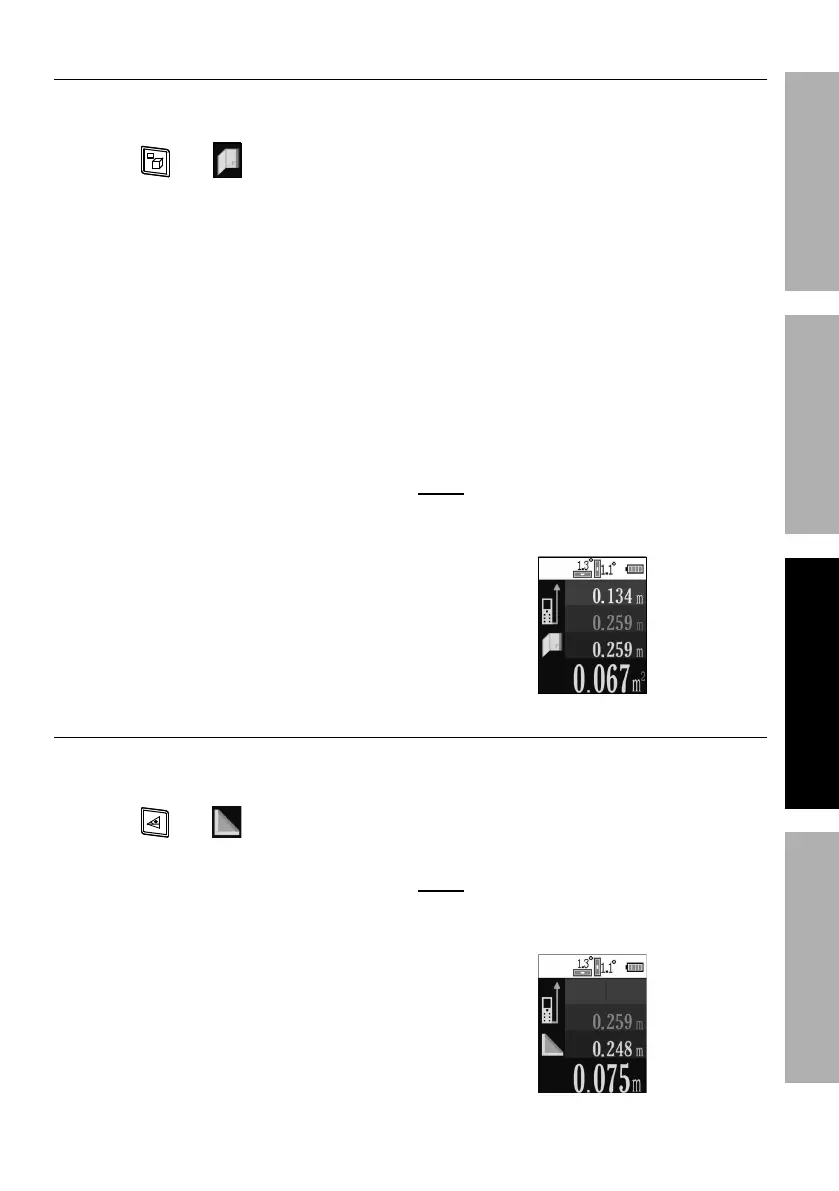

AMES 57013 - Area - Multiple Surfaces; Indirect Height;Length - Single Pythagorean

Page 11;&(%$*4.8"4,7%<'*#$"&8#=%/7*,#*%4,77%>?@@@?@AA?BCDC1Item 57013
EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
F(*,%?%N'7$"/7*%E'(2,4*#%%
1. Press ULEG%button to turn Meter on.
2. Set Laser Reference Point.
3. Press until appears.
4. ;"(#$%E'(2,4*-
a. Press ULEG%button to activate laser.
b. Pink measurement - Place Meter
against first surface, pointing at
opposite surface, then press ULEG%
button to take first measurement.
c. Blue measurement - Place
Meter against second surface,
pointing at opposite surface,
then press ULEG%button to
take second measurement.
d. Yellow measurement -
Area of first surface.
e. White measurement -
Area of first surface.
5. E*4&89%E'(2,4*-
a. Press ULEG%button to activate laser.
b. Pink measurement - Place Meter
against first surface, pointing at
opposite surface, then press ULEG%
button to take first measurement.
c. Blue measurement - Place
Meter against second surface,
pointing at opposite surface,
then press ULEG%button to
take second measurement.
d. Yellow measurement - Area
of second surface.
e. White measurement -
Combined area of first surface
and second surface.
M&$*- Keep taking measurements
to add more surfaces. White
measurement will indicate total area.
2
L89"(*4$%X*"3.$0T*83$.%?%E"837*%JV$.,3&(*,8
1. Press ULEG%button to turn Meter on.
2. Set Laser Reference Point.
3. Press until appears.
4. Press ULEG%button to activate laser.
5. Pink measurement - Place Meter
on the ground. Tilt Meter up,
point at top reference point on
surface, then press ULEG%button.
6. Blue measurement - Keep Meter
on the ground, point at bottom
reference point on surface,
then press ULEG%button.
7. Yellow measurement - Height.
M&$*- Measurement may also
be performed on horizontal
surface to measure length.
