Battery State of Charge Icon:
Indicates battery state at a
glance.
Each bar indicates the State of Charge (SOC) in 20% increments,
along with colors.
-Red – Start of Charge at battery connect
-Orange – SOC < 80%
-Yellow - > 80%
-Green – Finish to Charge Complete, Bars will flash
during equalize.
SOC text will indicate current status as follows:
-SOC will be displayed while charging is in progress
-CC is displayed when the it is Charge Complete
-EQ is displayed when battery has completed the initial
charge & is now Equalizing.
7. Battery Temperature Icon: Touching this icon will cycle
display between Celsius and Fahrenheit.
8. Help Icon: Pressing this icon twice while on the home
screen will show a table of system firmware revision
9. S
tatus Icon:
Indicates the status of the charger and charge
cycle at a glance. Touching this icon will recall any active warn-
ings/errors for review.
10.
Charge VPC:
Indicates On Charge volts per cell
11.
Charge Amps:
Indicates On Charge DC Amps
12. D
ate & Time:
Indicates current date & time
13.
Wireless Icon:
Indicates connected

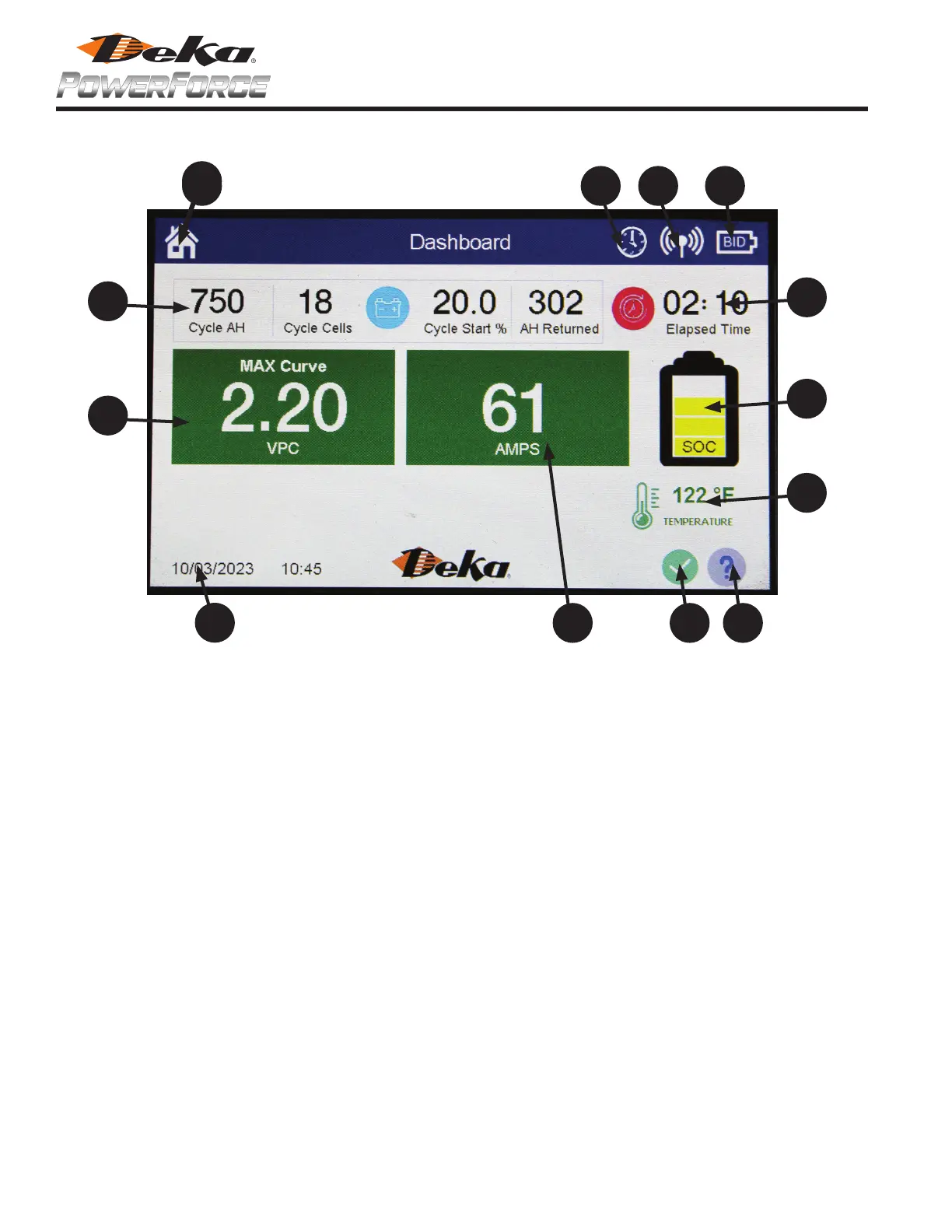

POWERFORCE DASHBOARD
1.
Home Icon:
Touching icon will automatically return the unit to
the Home screen from any other screen.
2.
Clock Icon:
Indicates the charger has stopped the charge cycle
temporarily for one or more of the following functions:
Start Mode Delay
No Gassing Delay
Battery Cool Down
Multi-Cell mode new battery delay
3.
Battery Icon:
Indicates the battery connection state.
- Battery with no text in the center means that a battery is
connected with no BID installed.
- Battery with the word BID in the center indicates the charger
has detected a BID on the connected battery.
- Battery with the word BID flashing indicates the charger is
attempting communication with the BID device.
4.
Battery Info Icon:
Indicates battery AH size, cell size, start
rate, and AH returned.
5.
Charge Time Icon:
Indicates the charge time, idle time, & time
since Charge Complete.
NOTE: the wireless icon is shown on the top bar toward
the left if connected.
11 9 8
12
10
4
1
1 13
5
6
7
2 3
To Next Page
