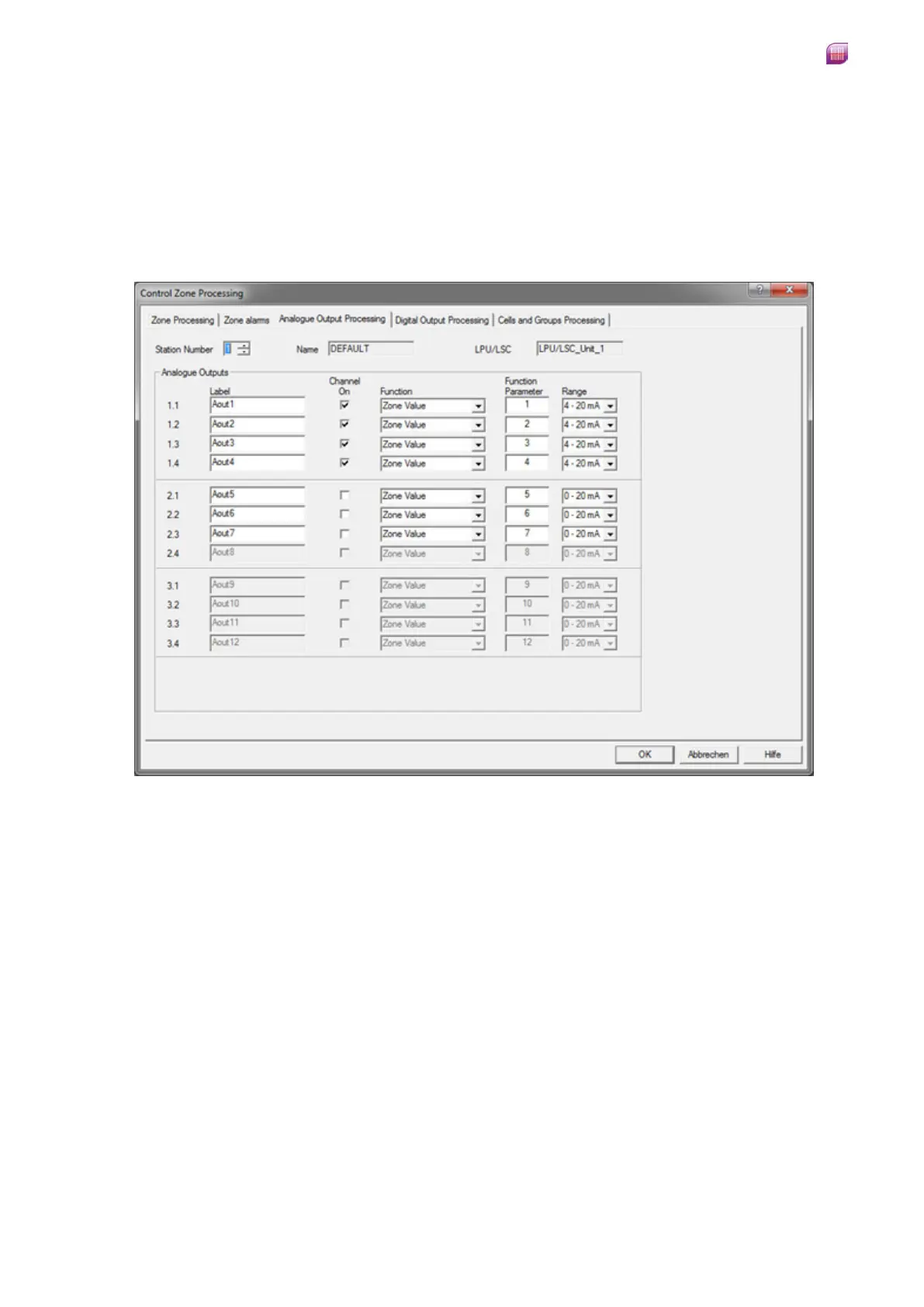

7.3.3 Data Processing - Analogue Output Processing
1) ToallocatethesetControlZonestoananalogueOutput,therelevantChannelshaveto
beactivated:Channel On.
2) Select Zone Value as the Function for the selected Channel.
3) The Function Parameter:1,2,3etc.indicatethereferencetotheindividualControl
Zone.
4) The Rangecanbeselectedaseither0or4to20mAoutputsignal.
