7.3 Data Processing
7.3.1 Control Zone Processing

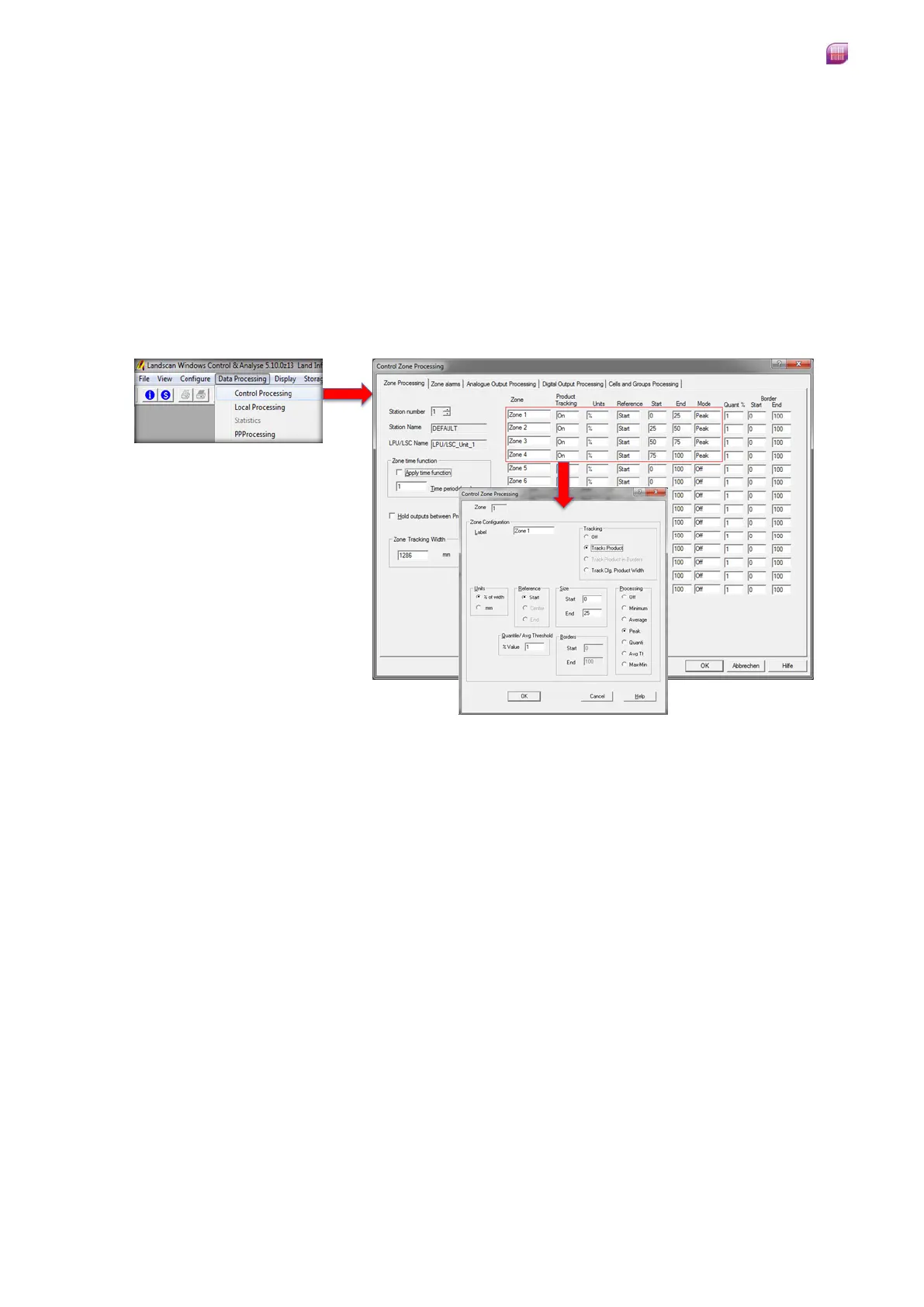

1) FromtheData Processingmenu,selectControl Processing to apply Control Zones.
2) Double-clickintothelineofeachZonetodisplaythedialog,whichallowsyoutosetthe
relevantZoneparameters:
• Units:either%ormm
• Reference:Start,CentreorEndofScanline
• Size:StartandEndPosition
• Tracking:withinHotEdgesorxedposition
• Processing:e.g.Peak,Minetc.
