AMGO 408-P - Installation Site Layout

6

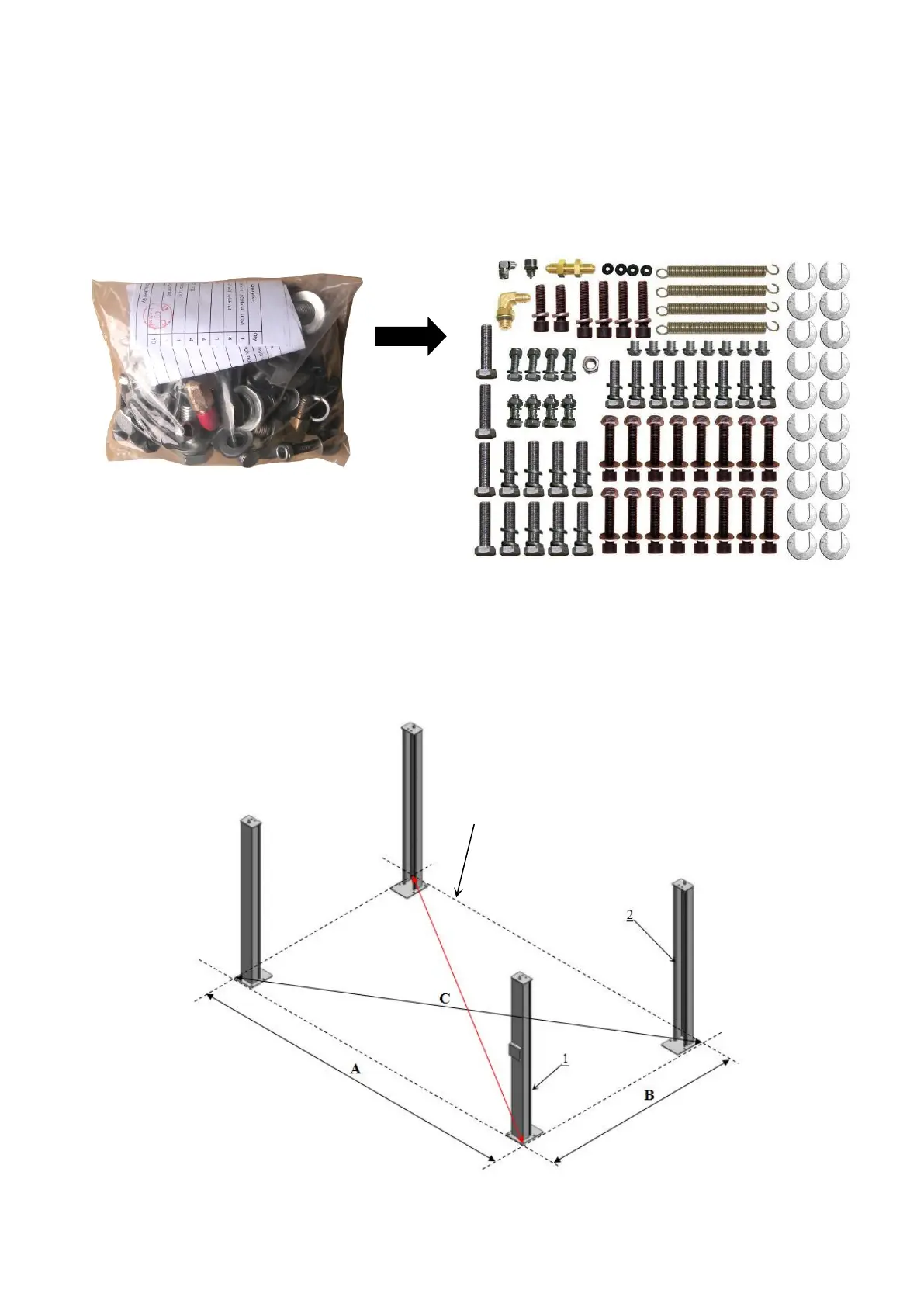

7. Check the parts of the parts bag according to the parts bag list (See Fig. 10).
B. Use a carpenter’s chalk line to establish installation layout as per Table 1
Make sure the size is right and base is flat (see Fig. 11).
Note: Reserve space front and behind the installation site.
Fig. 10
Fig. 11
Use a carpenter’s chalk line to establish
installation layout
Fig. 9
