11

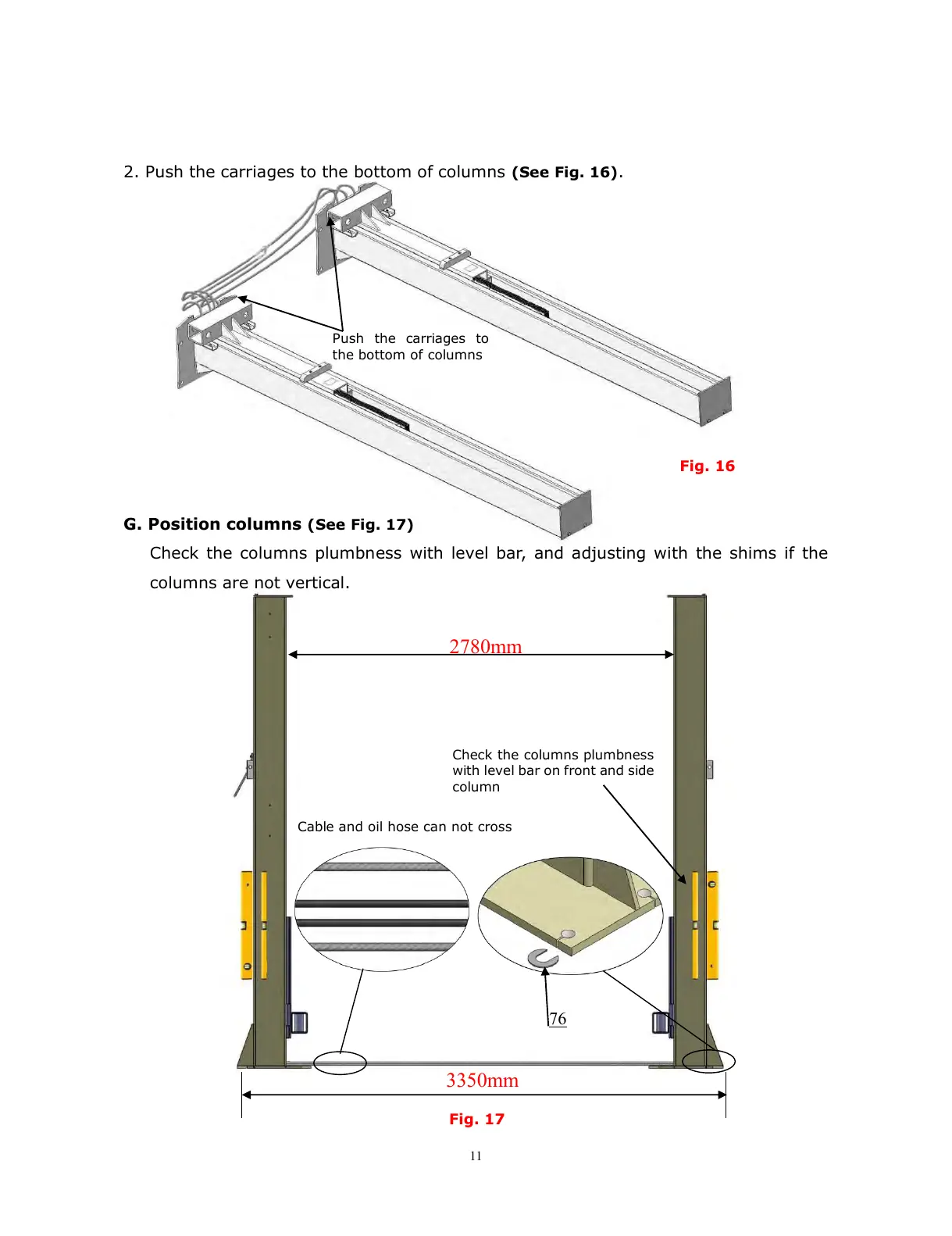

2. Push the carriages to the bottom of columns (See Fig. 16).
G. Position columns (See Fig. 17)
Check the columns plumbness with level bar, and adjusting with the shims if the
columns are not vertical.
Push the carriages to
the bottom of columns
2780mm
Cable and oil hose can not cross
Check the columns plumbness
with level bar on front and side
column
Fig. 16
Fig. 17
76
3350mm
