AMGO A240 - Securing Lift with Anchor Bolts

12

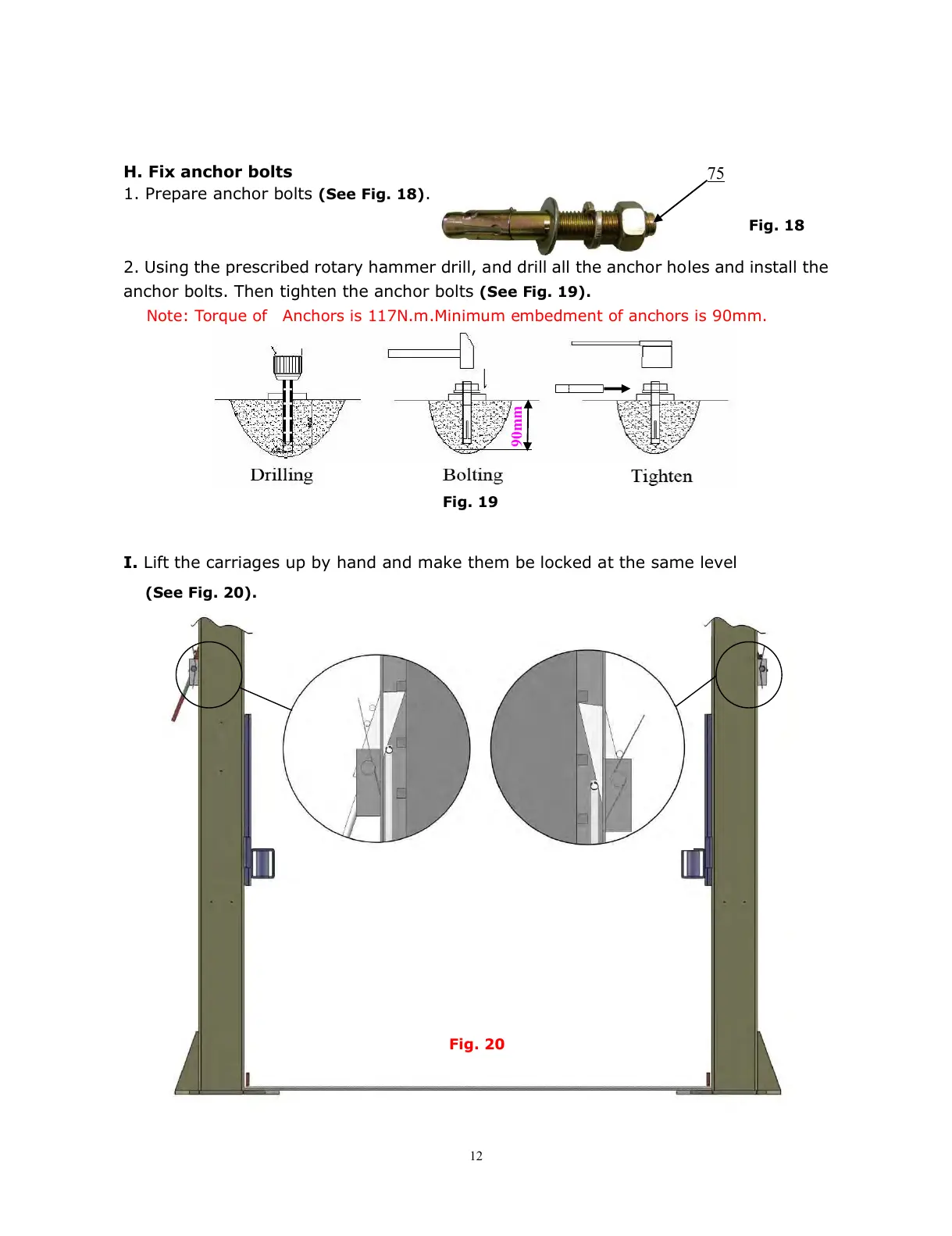

H. Fix anchor bolts
1. Prepare anchor bolts (See Fig. 18).
2. Using the prescribed rotary hammer drill, and drill all the anchor holes and install the
anchor bolts. Then tighten the anchor bolts (See Fig. 19).
Note: Torque of Anchors is 117N.m.Minimum embedment of anchors is 90mm.
I. Lift the carriages up by hand and make them be locked at the same level
(See Fig. 20).
75
Fig. 18
Fig. 19
Fig. 20
90mm
