AMGO A240 - Hydraulic Power Unit Installation

14

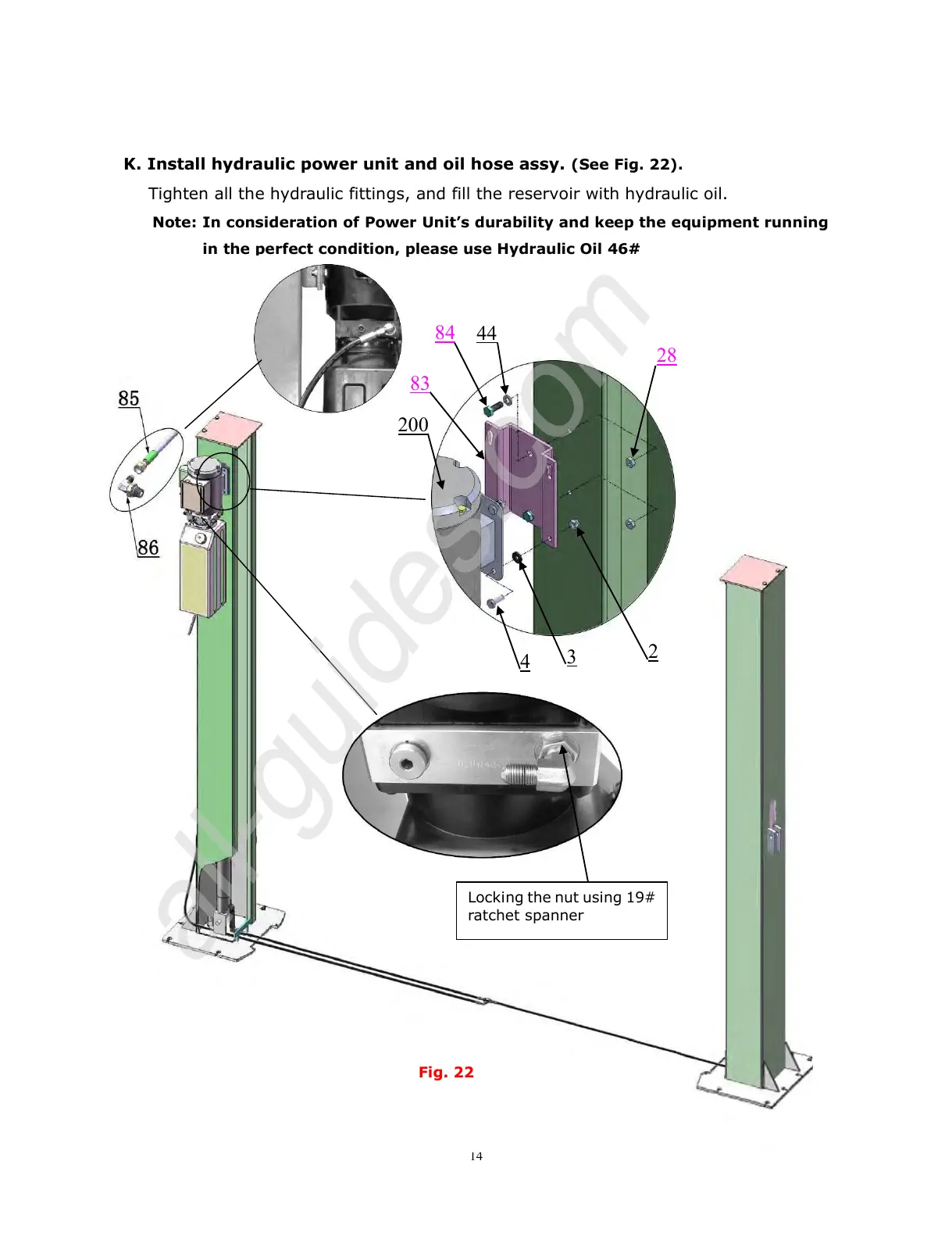

K. Install hydraulic power unit and oil hose assy. (See Fig. 22).
Tighten all the hydraulic fittings, and fill the reservoir with hydraulic oil.
Note: In consideration of Power Unit’s durability and keep the equipment running
in the perfect condition, please use Hydraulic Oil 46#
Fig. 22
Locking the nut using 19#
ratchet spanner
3
4
2
28
200
44
84
83
