AMGO A240 - Control Box and Limit Switch Installation

15
Chain cover pass
from the gap
between
carriage and
carriage
reinforce plate
Carriage reinforce plate
90
Carriage
Connecting 11# & 12#
(NC) of limit switch to
terminals 3# & 5# of
control box

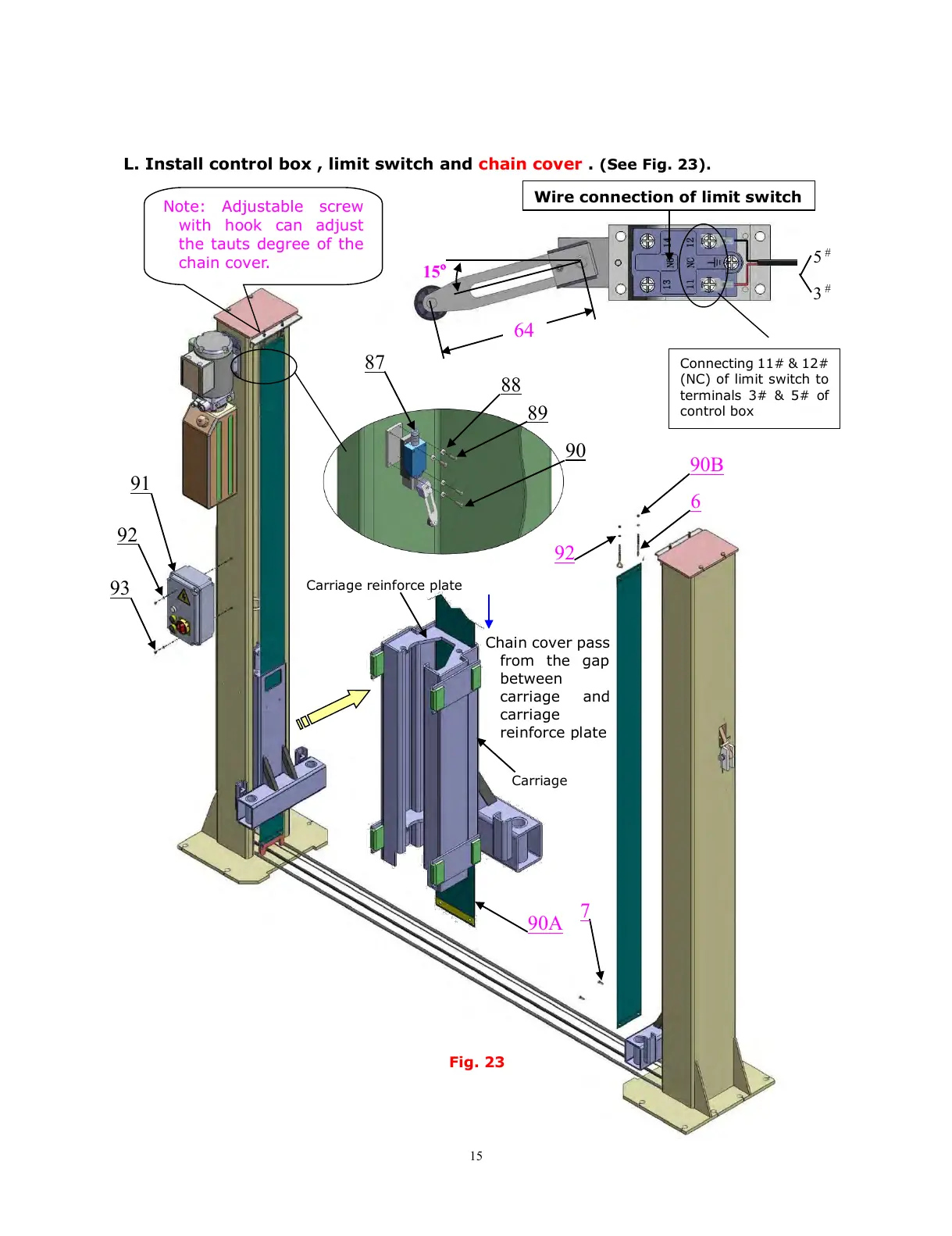

L. Install control box , limit switch and chain cover . (See Fig. 23).
Fig. 23
6
90B
91
92
93
7
90A
Wire connection of limit switch
92
Note: Adjustable screw
with hook can adjust
the tauts degree of the
chain cover.
87
89
88
3
#
5
#
15º
64
