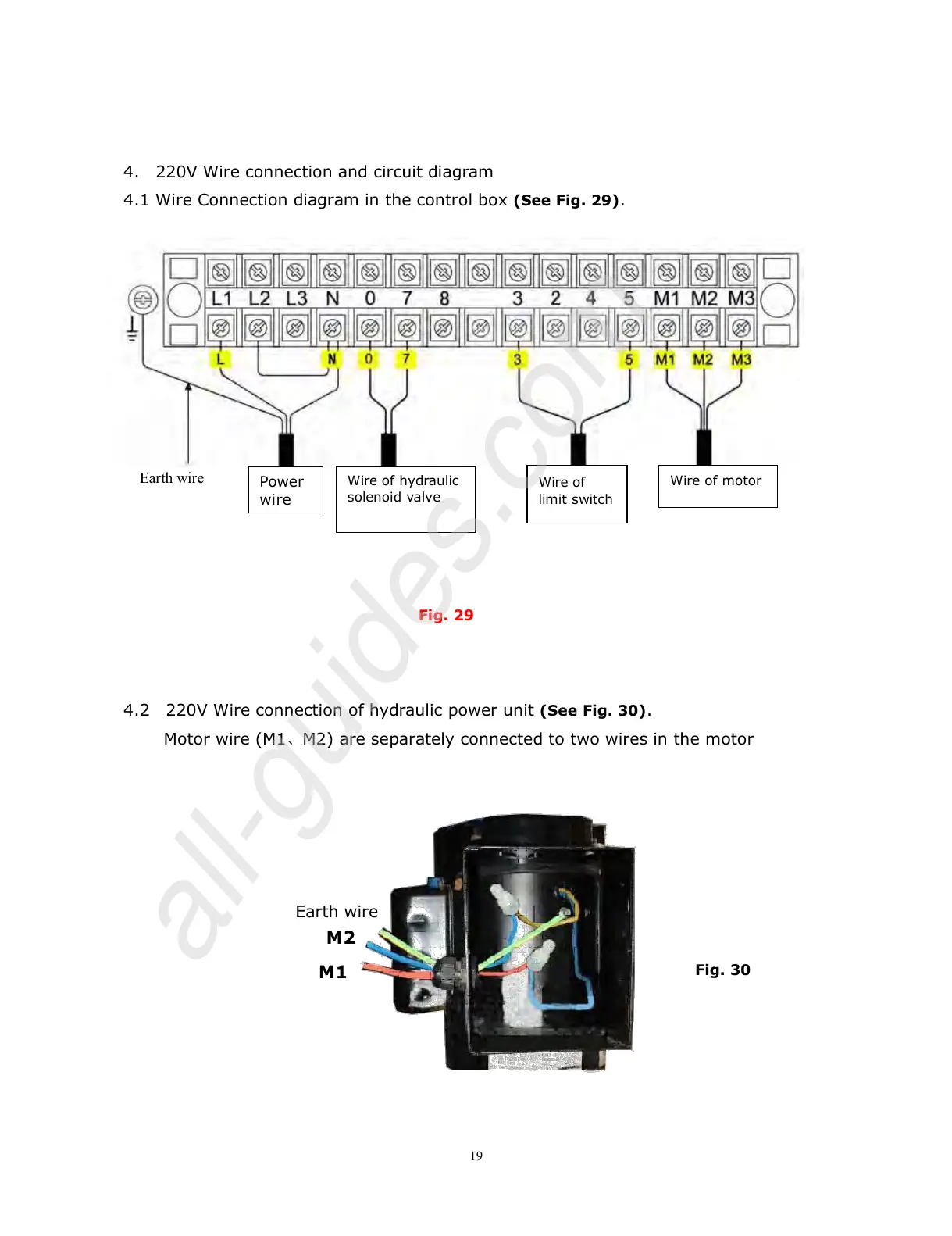

4. 220V Wire connection and circuit diagram
4.1 Wire Connection diagram in the control box (See Fig. 29).
4.2 220V Wire connection of hydraulic power unit (See Fig. 30).
Motor wire (M1、M2) are separately connected to two wires in the motor
Earth wire
M2
M1
Fig. 29
Fig. 30
Earth wire
Power
wire
Wire of hydraulic
solenoid valve
Wire of
limit switch
Wire of motor
