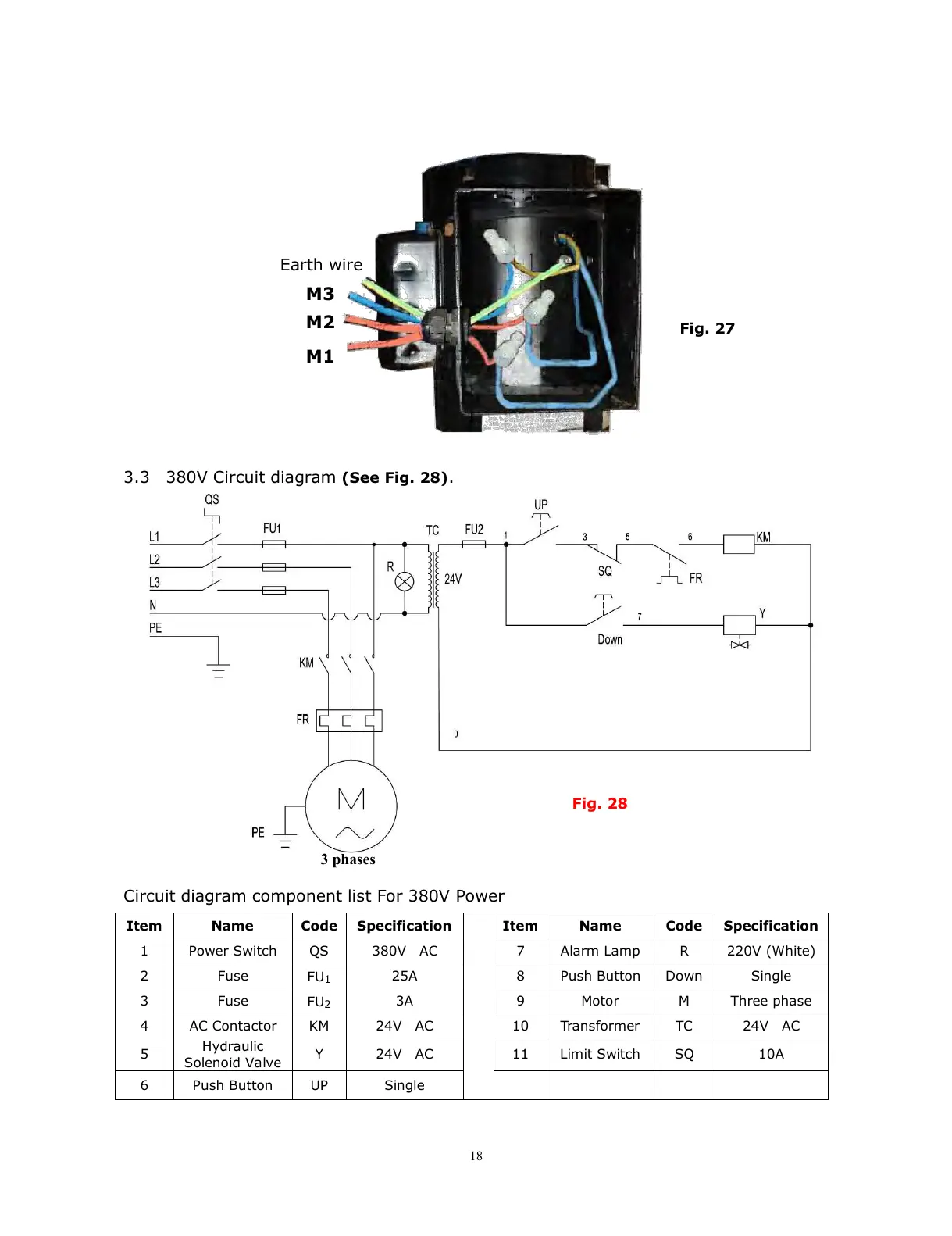

3.3 380V Circuit diagram (See Fig. 28).
Circuit diagram component list For 380V Power
Item
Name
Code
Specification
Item
Name
Code
Specification
1
Power Switch
QS
380V AC
7
Alarm Lamp
R
220V (White)
2
Fuse
FU
1
25A
8
Push Button
Down
Single
3
Fuse
FU
2
3A
9
Motor
M
Three phase
4
AC Contactor
KM
24V AC
10
Transformer
TC
24V AC
5
Hydraulic
Solenoid Valve
Y
24V AC
11
Limit Switch
SQ
10A
6
Push Button
UP
Single
Earth wire
M3
M2
M1
Fig. 27
Fig. 28
3 phases
