17

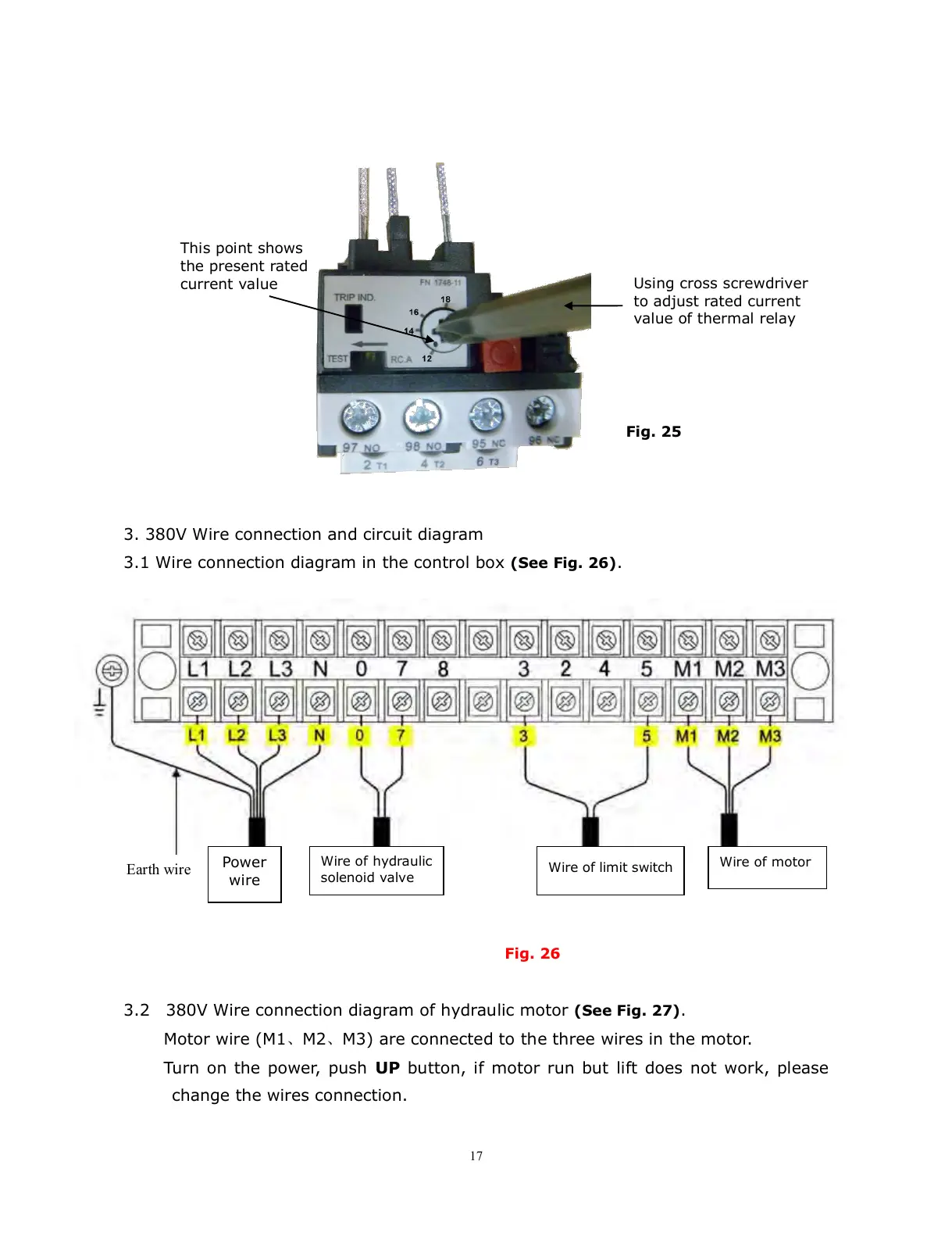

3. 380V Wire connection and circuit diagram
3.1 Wire connection diagram in the control box (See Fig. 26).
3.2 380V Wire connection diagram of hydraulic motor (See Fig. 27).
Motor wire (M1、M2、M3) are connected to the three wires in the motor.
Turn on the power, push UP button, if motor run but lift does not work, please
change the wires connection.
This point shows
the present rated
current value
Using cross screwdriver
to adjust rated current
value of thermal relay
Fig. 25
Power
wire
Wire of hydraulic
solenoid valve
Wire of limit switch
Wire of motor
Fig. 26
Earth wire
