Doc No. 740124 4
MODEL 9 SERIES WELD HEAD
OPERATION MANUAL
3.0 CABLE HOOK UP (contd.)

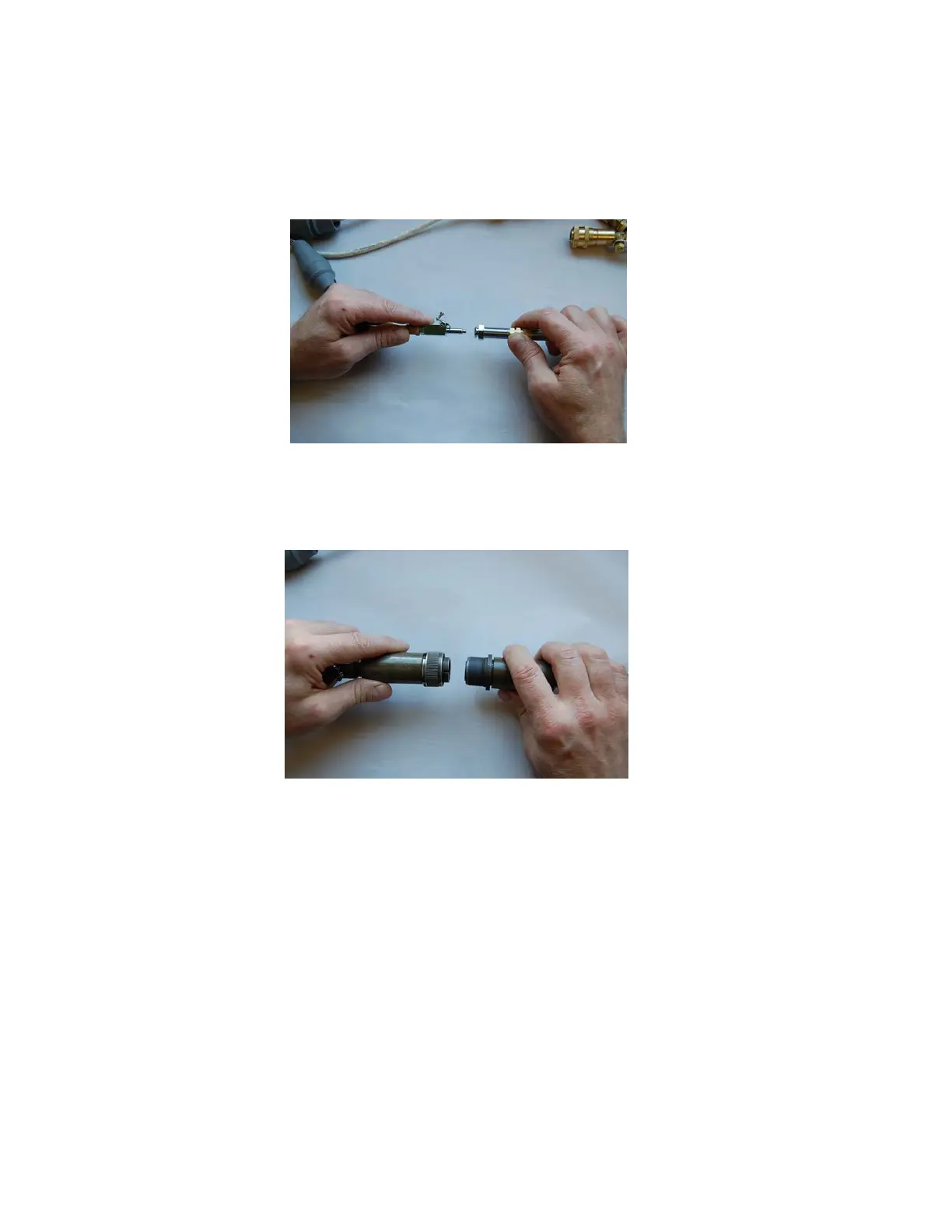

Fig. 2
To connect the male to female (chrome) gas fittings, unscrew the (4-40) socket
head screw to allow the latch to open far enough to fully seat the two fittings.
Lightly tighten this screw to prevent accidental disconnection of this fitting.
Fig. 3
Connect the motor control connector by aligning the key to the slot, and lightly
tightening the outer ring. Be careful not to cross-thread this ring.
