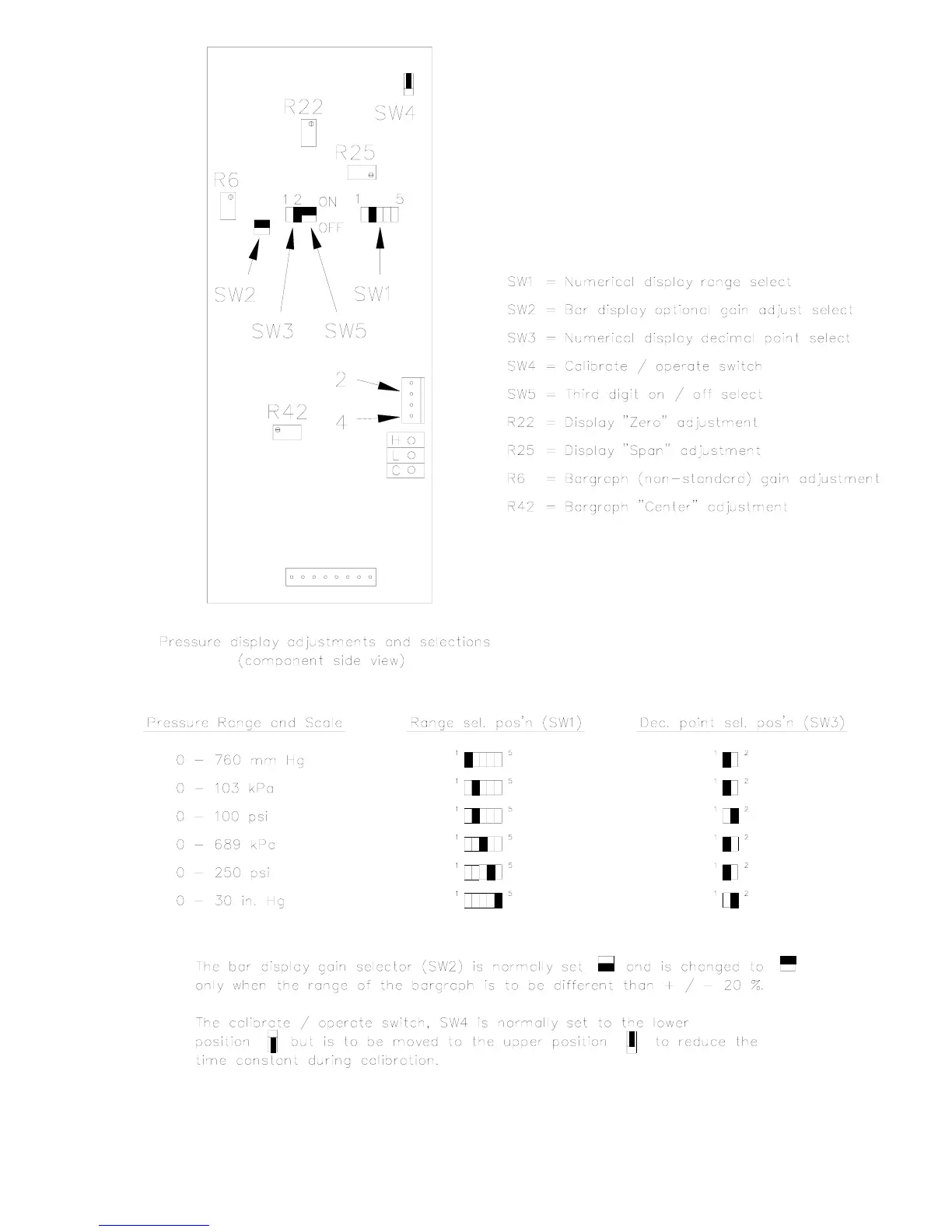

Pressure display adjustments and selections
(component side view)
Pressure Range and Scale
O 760 mm Hg
0 103 2Pa
O 100 psi
0 689 kPa
0 250 psi
O 30 in. Hg
SW1 Numerical display range select
SW2 Bar display optional gain adjust select
SW3 Numerical display decimal point select
SW4 Calibrate / operate switch
SW5 Third digit on / off select
R22 Display "Zero" adjustment
R25 Display "Span" adjustment
R6 Bargraph (non—standard) gain adjustment
R42 Bargraph "Center" adjustment
Range sel. pos'n (SW1) Dec point sel. pos'n (SW3)
1111
1 III
1 III
II II
III I
1111
El 2
The bar display gain selector (SW2) is normally set 6 and is changed to
only when the range of the bargraph is to be different than + / — 20 %.
The calibrate / operate switch, SW4 is normally set to the lower
position but is to be moved to the upper position to reduce the
time constant during calibration.
