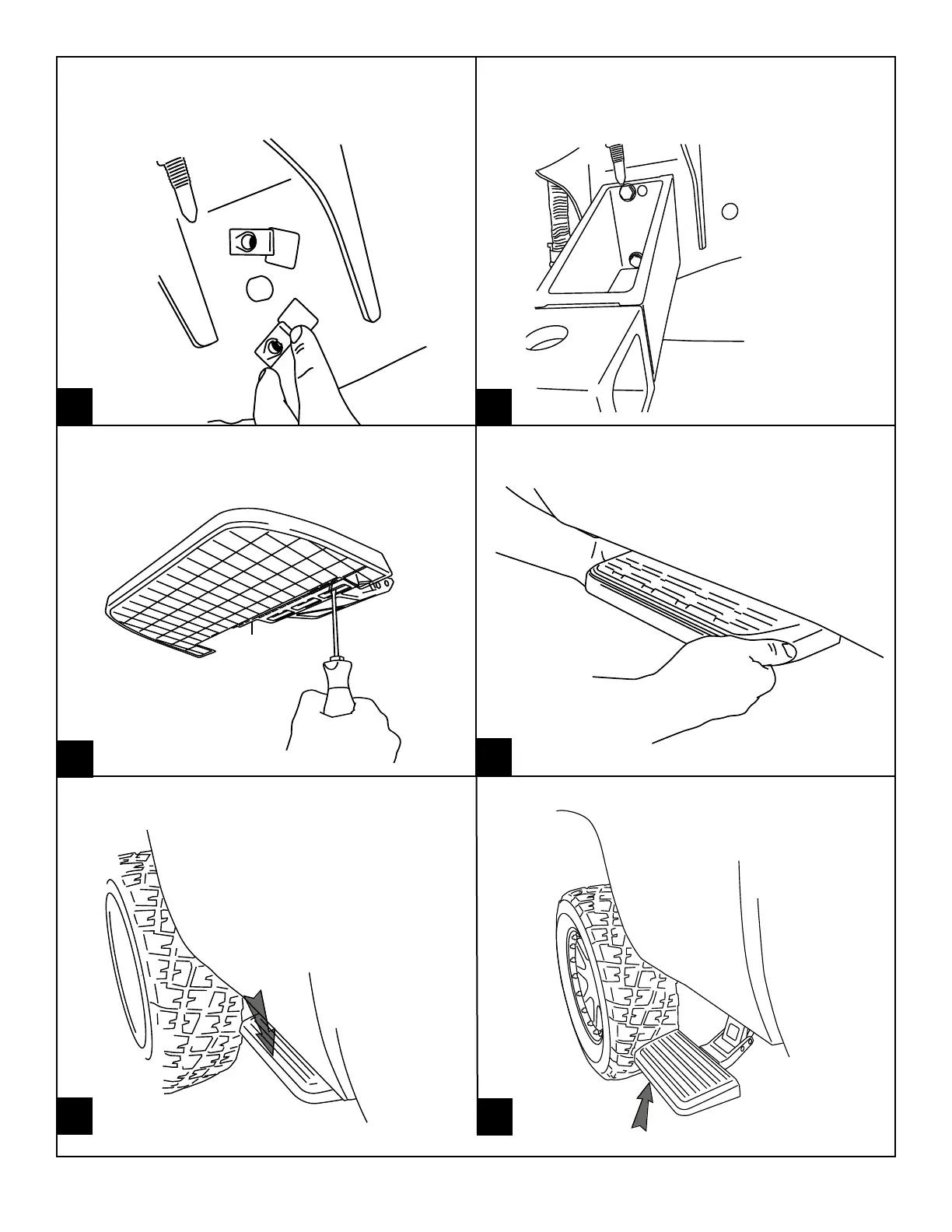

Insert two U clips into cutouts in frame. Mulitiple
cutouts will be present on some models. Use set
closest to rear tire.Note: Image shows Crew Cab
short bed. Bed mount may not be present in other
applications.
Set linkage in place and tighten bolts using a 15mm
socket. Torque bolts to 20 ft-lbs.
Note: Image shows Crew Cab short bed. Bed mount
may not be present in other applications.
Offset the step pad forward and secure using pro-
vided PT Screws. Tighten to 5 ft-lbs using T25 torx bit.
Note: Drivers side shown
Adjust step pad to be in line with fender and torque
bolts from Step 2 to 20ft-lbs.
To deploy the step, press down using your foot on the
outside edge of the step pad.
To retract, gently kick up on the underside of the step
pad.
4
6
5
7
8
9
