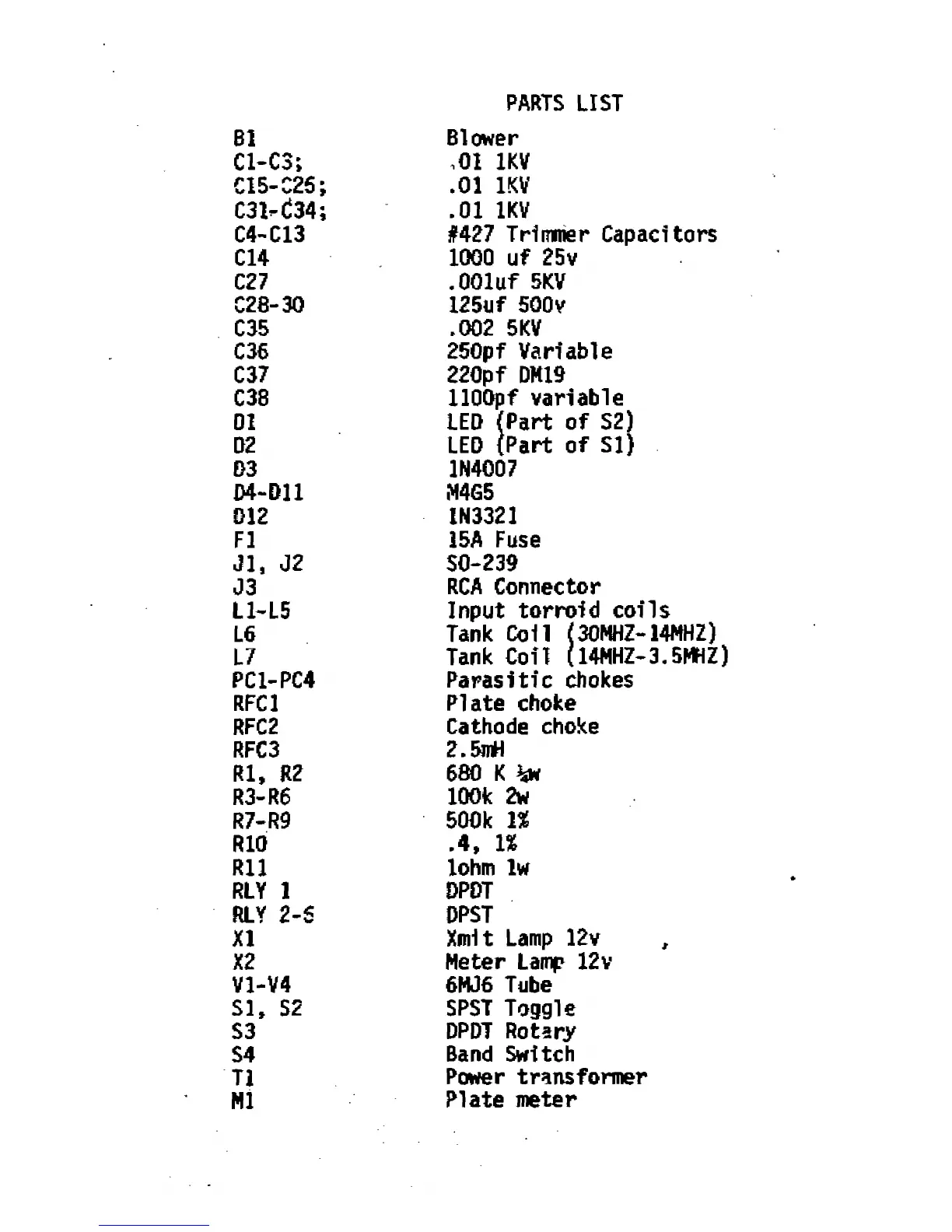

PARTS LIST
61
Blower
C1-C3;
,01 1KV
C15-C2S; .01 1KV
C31^(Î34;
.01 1KV
C4-C13 #427 Trimmer Capacitors
C14 1000 uf 25v
C27 .OOluf 5KV
C28-3G
125uf 500v
C35 .002 5KV
C36
250pf Variable
C37
220pf DM19
C38
llOOpf variable
01 LED (Part of S2)
02
LED {Part of SI)
03 1N4007
D4-D11 M4G5
012
IN3321
FI 15A Fuse
Jl, J2
$0-239
J3
RCA Connector
L1-L5
Input torroid coils
L6
Tank Coil (30MHZ-14MHZ)
L7
Tank Coil (14MHZ-3.5MHZ)
PC1-PC4 Parasitic chokes
RFC1
Plate choke
RFC2
Cathode choke
RFC3 2.5mH
RI, R2
680 K
R3-R6
100k 2w
R7-R9
500k 1%
RIO
.4, 1%
Rll
lohm lw
RLY 1
DPOT
RLY 2-S
OPST
XI
Xm1t Lamp 12v ,
n
Meter Lamp 12v
V1-V4 6MJ6 Tube
SI, S2
SPST Toggle
S3
DPDT Rotary
S4
Band Switch
T1
Power transformer
Ml
Plate meter
