Pull back on collar at one end of high pressure hose (N).
pulling on them. The hose is now securely attached to
spray gun.

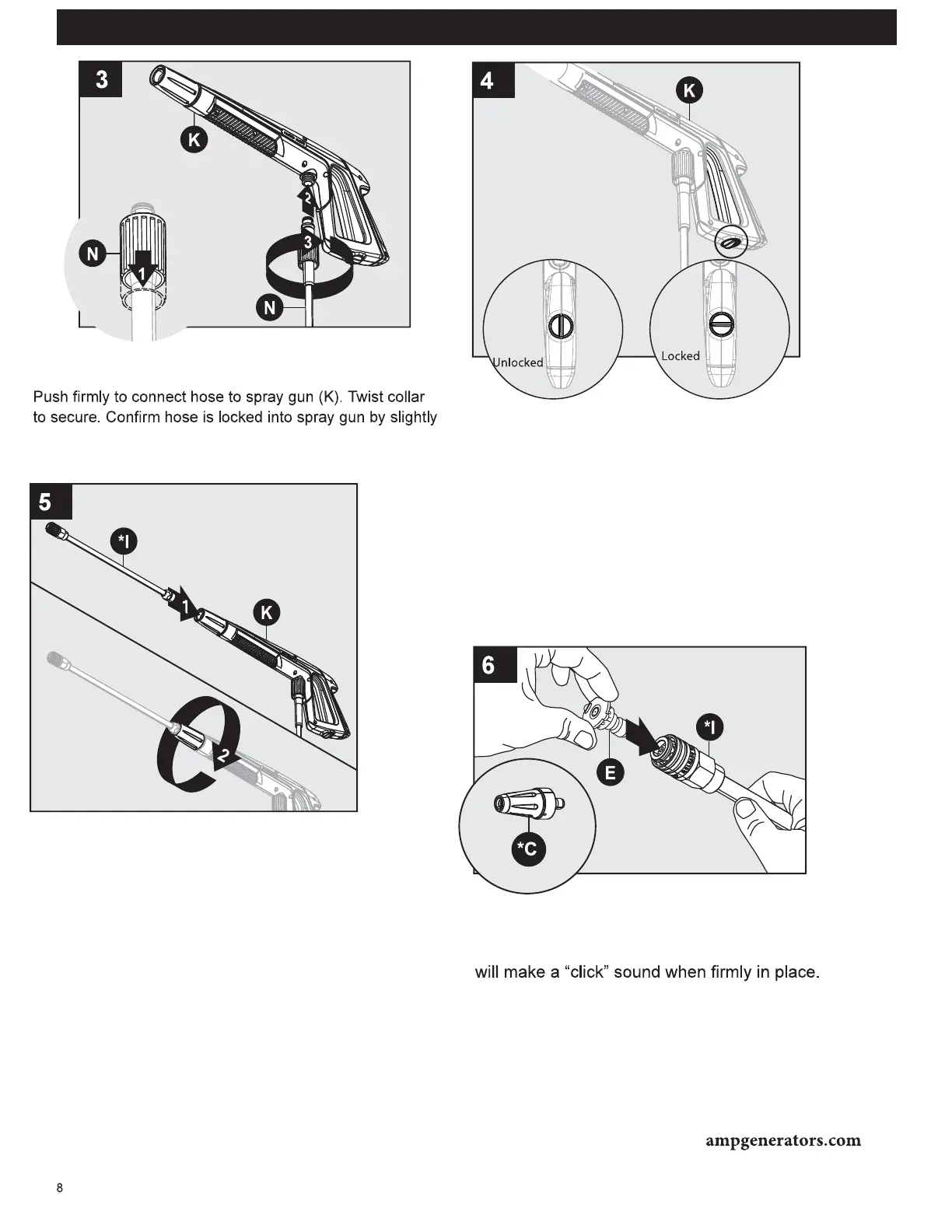

ASSEMBLY INSTRUCTIONS
Locking Spray Gun (before Lance installation) To lock
trigger of spray gun (K), point gun away from you and turn
dial to lock (“3” and “9” position). Squeeze or pull trigger
to make sure it is locked. Always leave in locked position
when not in use. This ensures the gun is in “safe” mode
until it is ready for use. Turn dial to unlock (“12” and “6”
position) to release spray gun trigger.
Note: The trigger lock prevents trigger from being
accidentally engaged.
Extension Lance Installation
While spray gun (K) is in the locked position, insert
lance (*I) into the end of spray gun by inserting and
turning clockwise until fully in place. To remove, turn
counterclockwise.
Attach nozzle (E) and Rotary nozzle (*C) into end of
lance (*I) by pressing selected nozzle into place. It
Note: Always push safety lock button to lock trigger
when changing lances and nozzles to ensure that
they do not accidentally eject with force during
removal.
