BA115HP/BA210 Bassamp Cube
6

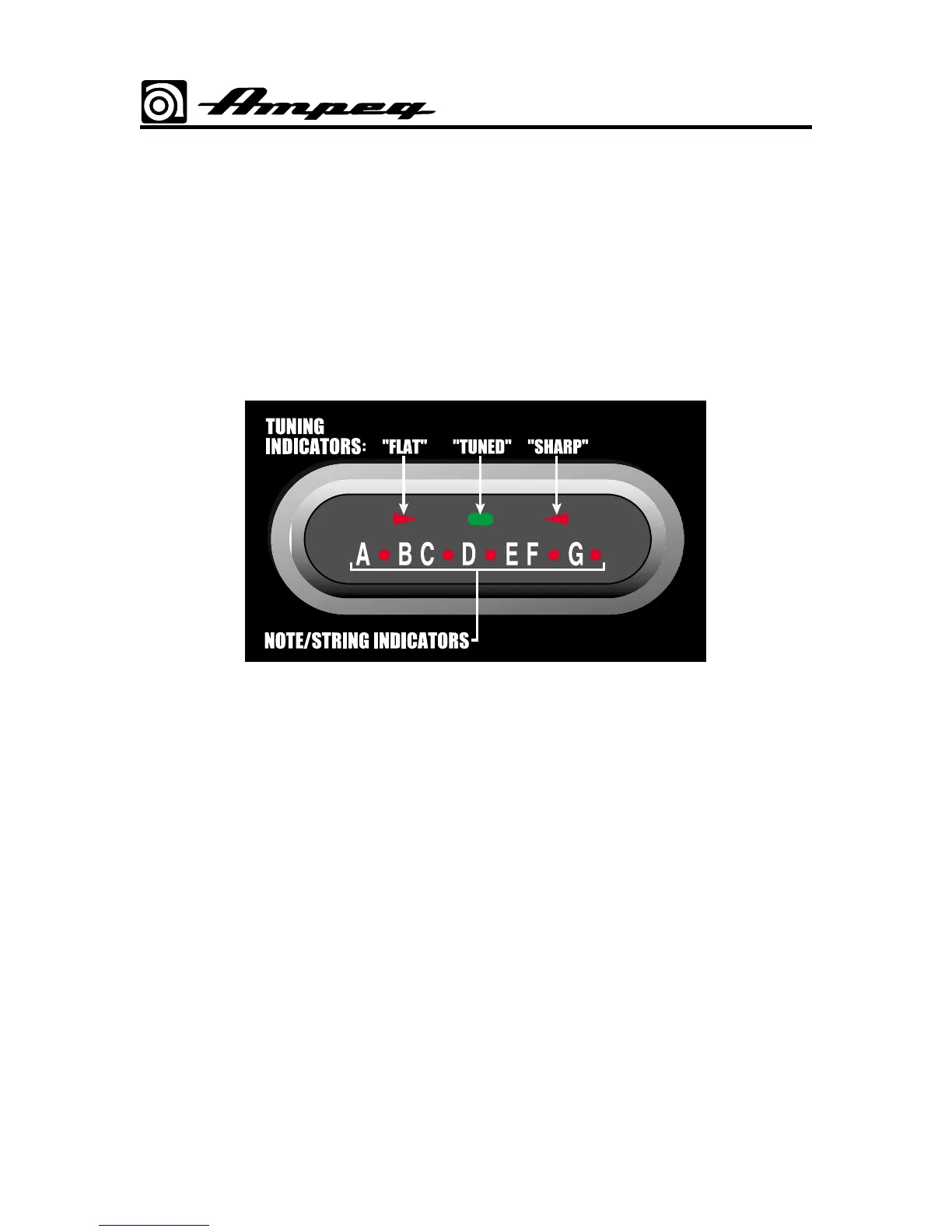

THE ELECRONIC TUNER:
The BA115HP/BA210 incorporate an active electronic tuner, built into the control panel.
The electronic tuner is active whenever the amplifier is turned on, providing constant,
“real-time” tuning. The bottom row of LEDs indicate which note (string) is being tuned.
The top row of LEDs provides directional queues to facilitate quick and precise tuning
of your instrument. The indicated note (string) is properly tuned when only the center
LED is illuminated

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ampeg BA115HP and is the answer not in the manual?

Ampeg BA115HP Specifications

BA115HP

Output and Input Levels IconOutput and Input Levels
output power rating220 Watts at 4 ohms @5% THD
max input level - 0dB input2.00V RMS
max input level - -15dB input8.00V RMS
max input level - CD input7.75V RMS
line out level1.78V RMS
headphone out level900mV RMS
Gain and Tone Controls IconGain and Tone Controls
gain46dB (input to speaker out, tones @5)
style 1-25dB @500Hz
style 2-12dB @500Hz
style 3flat
style 4+5dB @2kHz and above
style 5-6dB @50Hz and below
low40dB range @50Hz
mid30dB range @500Hz
high40dB range @10kHz
Speaker Specifications IconSpeaker Specifications
speaker configuration(1) 15”, 250W, 4 ohm, 2.5” voice coil dia, 56 oz. magnet
compression driver(1) 1” compression driver
Power Requirements IconPower Requirements
power requirements - 120VAC60Hz, 320VA
power requirements - 100/115VAC50/60Hz, 320VA
power requirements - 230VAC50/60Hz, 320VA
Size and Weight IconSize and Weight
dimensions21” W x 21” H x 15-1/2” D
weight86 lbs

BA210

Output and Input Levels IconOutput and Input Levels
output power rating220 Watts at 4 ohms @5% THD
max input level - 0dB input2.00V RMS
max input level - -15dB input8.00V RMS
max input level - CD input7.75V RMS
line out level1.78V RMS
headphone out level900mV RMS
Gain and Tone Controls IconGain and Tone Controls
gain46dB (input to speaker out, tones @5)
style 1-25dB @500Hz
style 2-12dB @500Hz
style 3flat
style 4+5dB @2kHz and above
style 5-6dB @50Hz and below
low40dB range @50Hz
mid30dB range @500Hz
high40dB range @10kHz
Speaker Specifications IconSpeaker Specifications
speaker configuration(2) 10”, 150W, 8 ohm, 2” voice coil dia, 30 oz. magnet
compression driver(1) 1” compression driver
Power Requirements IconPower Requirements
power requirements - 120VAC60Hz, 320VA
power requirements - 100/115VAC50/60Hz, 320VA
power requirements - 230VAC50/60Hz, 320VA
Size and Weight IconSize and Weight
dimensions21” W x 21” H x 15-1/2” D
weight86 lbs
