Ampeg PF-350 Owner's Manual

13
PF-350 / PF-500 / PF-800 Bass Guitar Amplifier

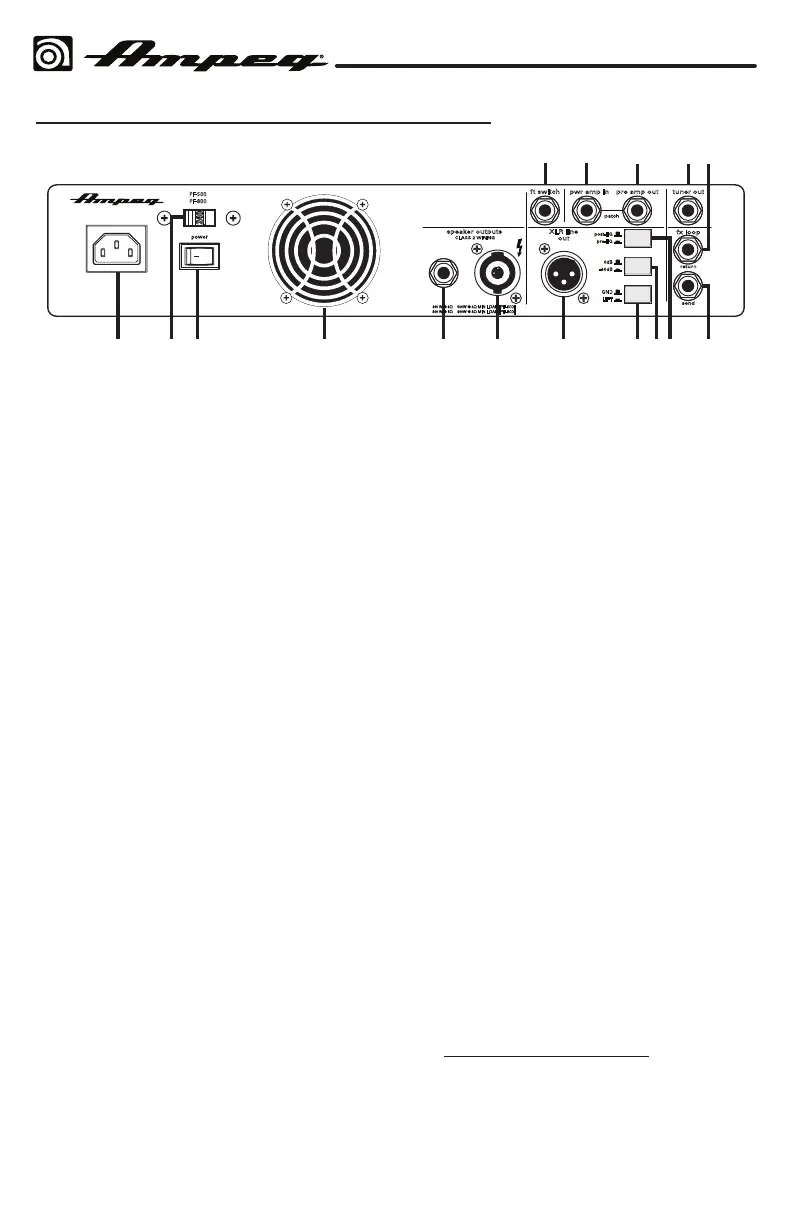

PF-500 / PF-800 Rear Panel - Continued
19 20 21 22 23 23 24 2625 27 28
29
3031
32
33
XLR line
out
pre-EQ
post-EQ
300 W @ 8Ω 500W @ 4Ω MIN LOAD [PF-500]
400 W @ 8Ω 800W @ 4Ω MIN LOAD [PF-800]
send
return
tuner outpwr amp in pre amp out
patch
power
LIFT
GND
-40dB
0dB
ft switch
speaker outputs
CLASS 2 WIRING
fx loop
PF 800
PF 500
25. GROUND / LIFT: Press this switch in to
engage the Ground Lift, if necessary, to
help eliminate hum at the XLR jack.
26. 0 dB (line level) / -40 dB (mic level):
Press this switch in to apply a –40 dB
cut to the signal at the XLR Line Out
[24].
27. POST-EQ/PRE-EQ: The signal at the
XLR Line Out [24] can be set to either
Pre-EQ or Post-EQ with this switch.
With the switch in the IN position, the
signal at the XLR Line Out is Pre-EQ,
making it a direct output not aected
by any EQ or boost settings. With the
switch in the OUT position, the signal is
Post-EQ and is controlled and modied
by the tone controls, and FX Loop.
28. FX SEND JACK: Use this 1/4" TS
unbalanced output to send a line level
output, for example, to an external
eects processor. This output is
aected by all controls except the
Volume.
Use the FX Return jack to feed the
returned, processed signals back into
the power amplier.
29. FX RETURN JACK: Use this 1/4"
TS unbalanced input to return the
processed, line level output of, for
example, an external eects processor.
The processor could be fed by signals
from the FX Send [28].
30. TUNER OUT: This jack acts as the only
live output when the Mute switch is
engaged. This allows for silent tuning
through an electronic tuner or killing the
house send with a monitor mixer send
still active.
31. PREAMP OUT: This jack is a direct post
Master preamp output for use with
an external power amp. Connect the
external amp’s input to this jack using a
shielded instrument cable.
32. POWER AMP IN: This jack connects
directly to the internal power amp for
use with an external preamp� When
using an external source, connect the
OUTPUT of the source to this jack using
a shielded instrument cable to feed the
signal into the power amp section. The
internal signal is disconnected when a
plug is inserted into this jack.
33. FOOTSWITCH: Connect a dual
footswitch to this jack for remote Mute
and FX On/O control.* On the stereo
(TRS) 1/4" plug, the tip controls Mute
and the ring controls FX On/O. The
Mute function is available from either
the front panel or the footswitch.
*NOTE: A footswitch (model #AFP2)
may be purchased at your local
Ampeg Dealer, or ordered directly from
the Ampeg website, at
https://shop.ampeg.com/�
