Amphitech PTC 500 - Scope of Delivery; Fixing the Base; Recommended Installation Height

15/NOTIC-000581-09F_p9/24
Installation Instructions Amphitech PTC 500
15/NOTIC-000581F 1/02/2018

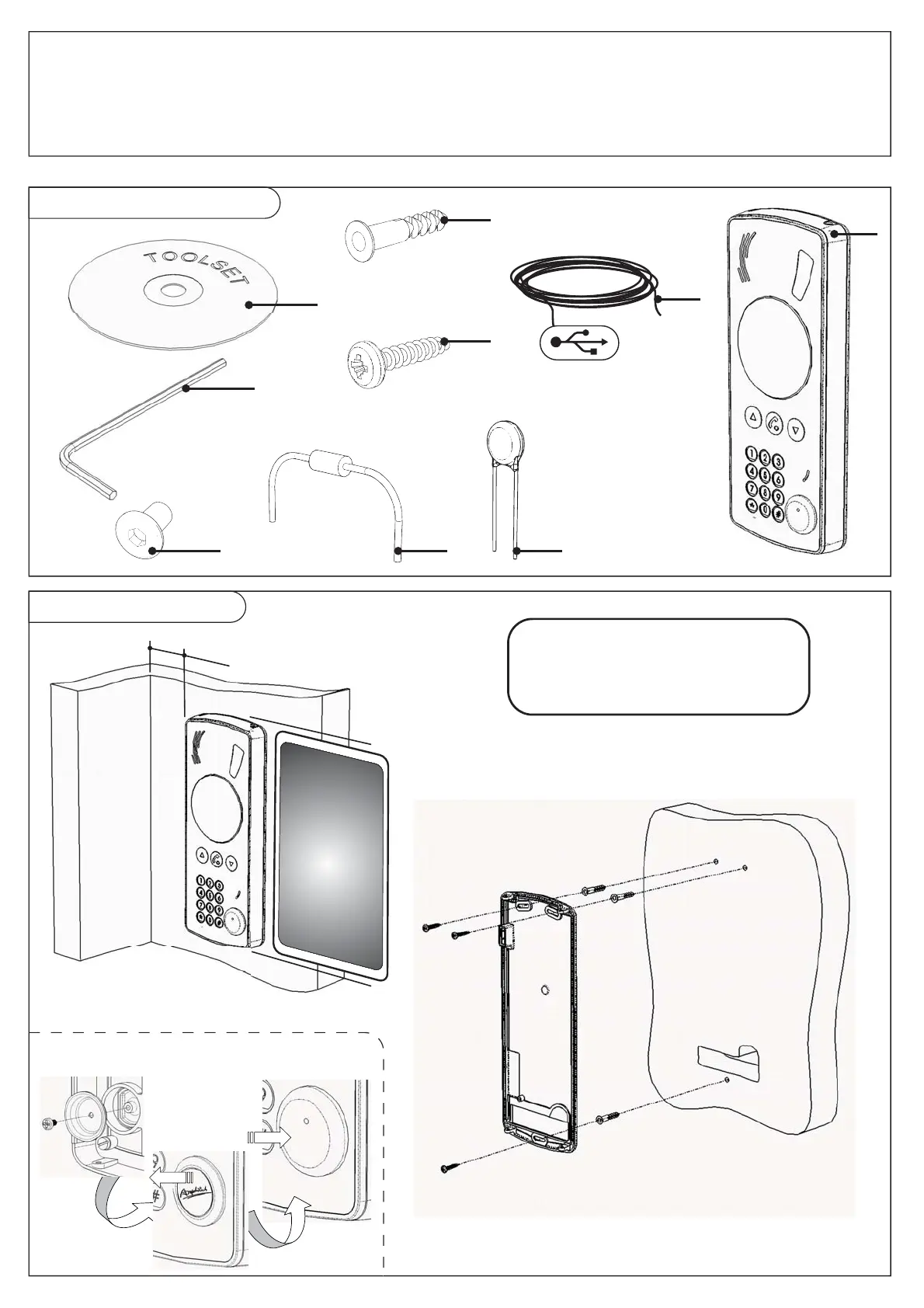

SCOPE OF DELIVERY
x1
x3
x3
x2x4
x1
x1
x1
x2
FIXING THE BASE
Minimum distance
to floor
0,9 m
Maximum distance
to floor
1,3 m
Distance to corner wall
0,4 m minimum
Handicapped
accessible
installation
area
RECOMMENDED
INSTALLATION HEIGHT
PLEASE NOTE
If a VIGIK access control system is installed,
remove the "AMPHITECH" plug
