11
16mm PRECISION PROJECTOR
REWINDING FILM

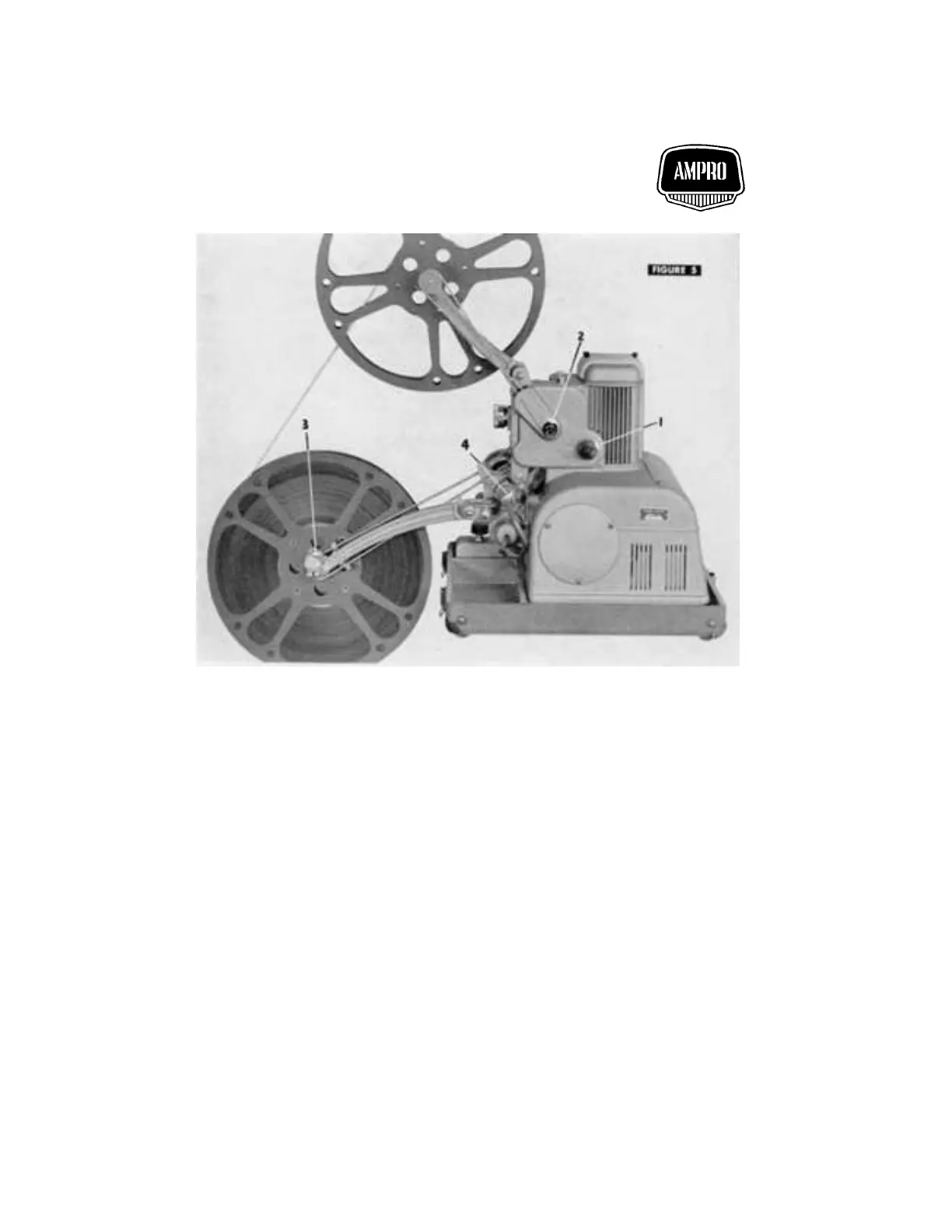

(See Fig. 5)
1. Thread the film from the lower reel to the upper reel as indicated. Insert the loose end
of the film in a slot in the upper reel and turn the reel clockwise (as viewed in Fig. 5)
two or three turns to wind up the slack in the film.
2. Turn the control switch (7 Fig. 3) to the “Motor” position.
3. Push in the rewind clutch (2) and after approximately 150 ft. of film have been
rewound, move the belt shifter (3) to the maximum clockwise position as indicated in
Fig. 5.
4. Turn off switch just as the last of film leaves the take-up reel so as to permit the
rewind clutch to restore to normal position. This will reduce the momentum of the
upper reel and will prevent the film end from flapping.
5. Rotate the belt shifter (3) to its maximum counter clockwise position.
