AMQ ZILO - ZILO Chair Assembly Instructions; Step 1: Attach Armrests to Seat; Step 2: Attach Backrest and Mechanism; Step 3: Install Base and Gas Lifter

ZILO ASSEMBLY INSTRUCTIONS | 3

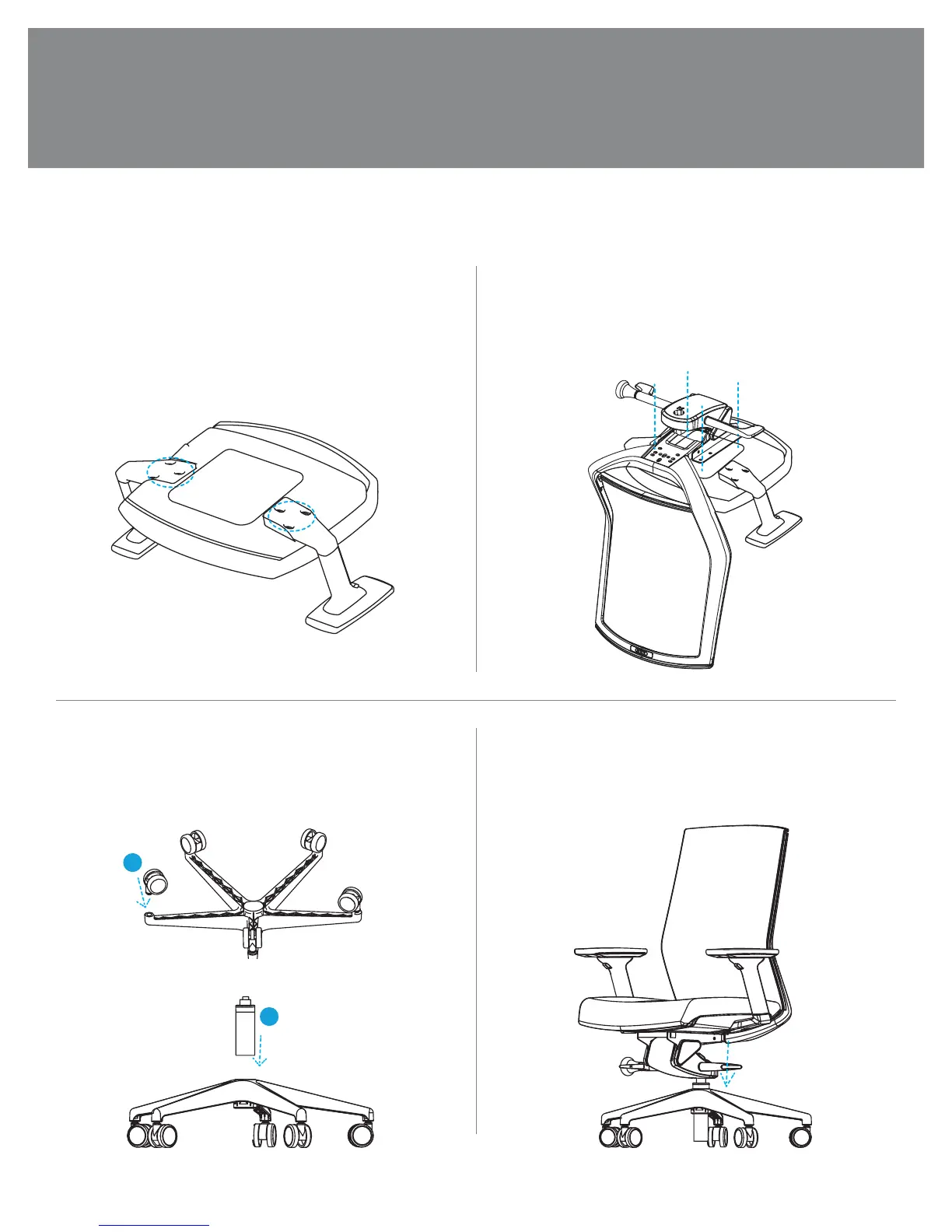

Step 3
Insert the castors onto the leg base (1), then
insert gas lifter onto the top of leg base (2).
Step 4
Combine chair body with gas lifter via the
hole on the mechanisim.
Step 2
Attach the backrest with seat mechanism
using 3pcs M8X35 allen key bolts, and tighten
the 4pcs M6X16 screws.
Note: You may choose to start with installing the seat cover – instructions on last page.
1
2
ZILO
assemblyINSTRUCTIONS
Step 1
Attach the armrest to the seat shell using
6pcs M6X32 bolts (1) and tighten the 4pcs
M6X16 screws (2).
