6. Lift the circuit boards slowly from the right side as shown in Figure 6. While lifting, remove the
strand of wires from the front panel. This is done by pulling the black connector straight up off
of the front panel as shown in Figure 7.

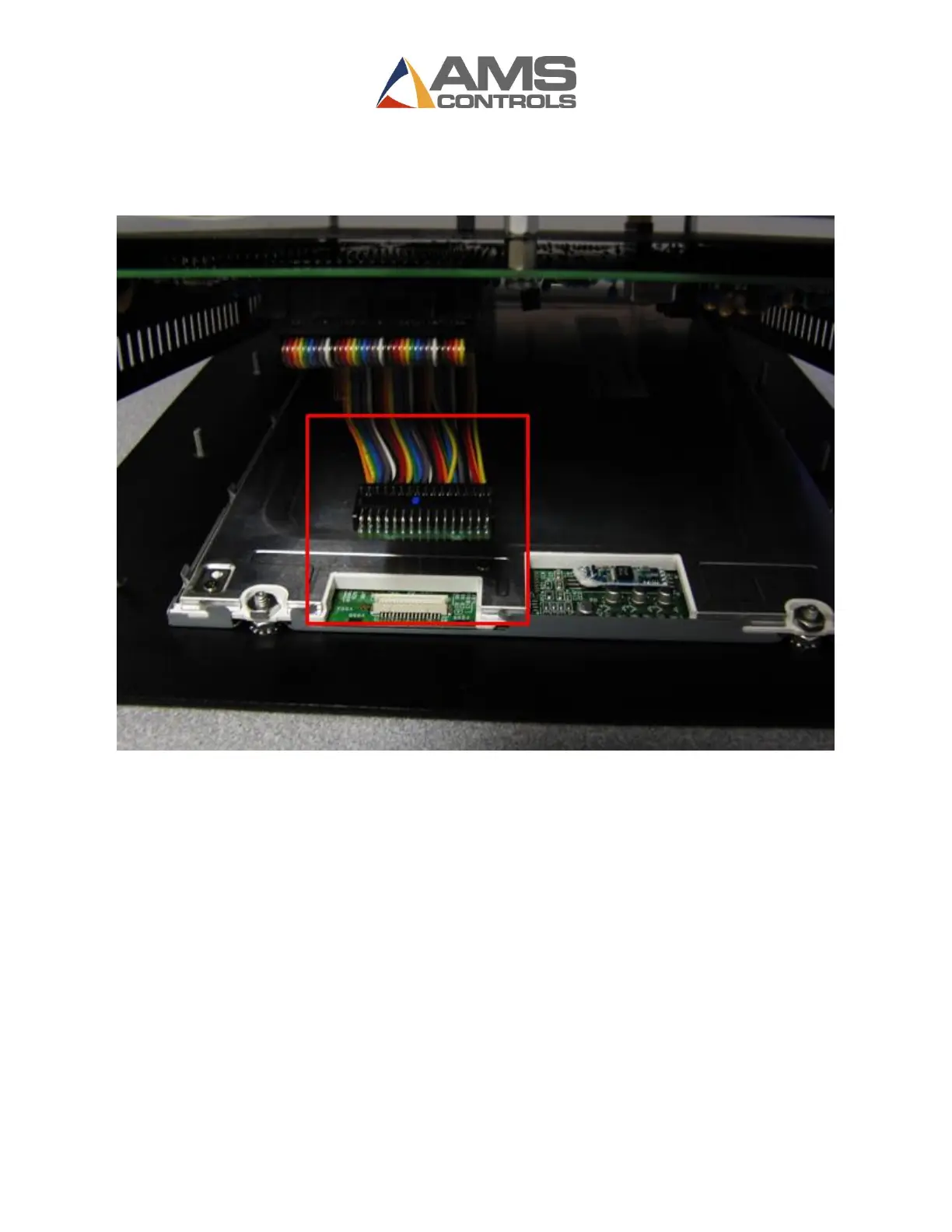

Figure 7- Black connector removed
