7. Open the boards as shown in Figure 8 while making sure not to pull apart the connections on

the other side of the board. Leave the circuit boards up as shown in Figure 8.

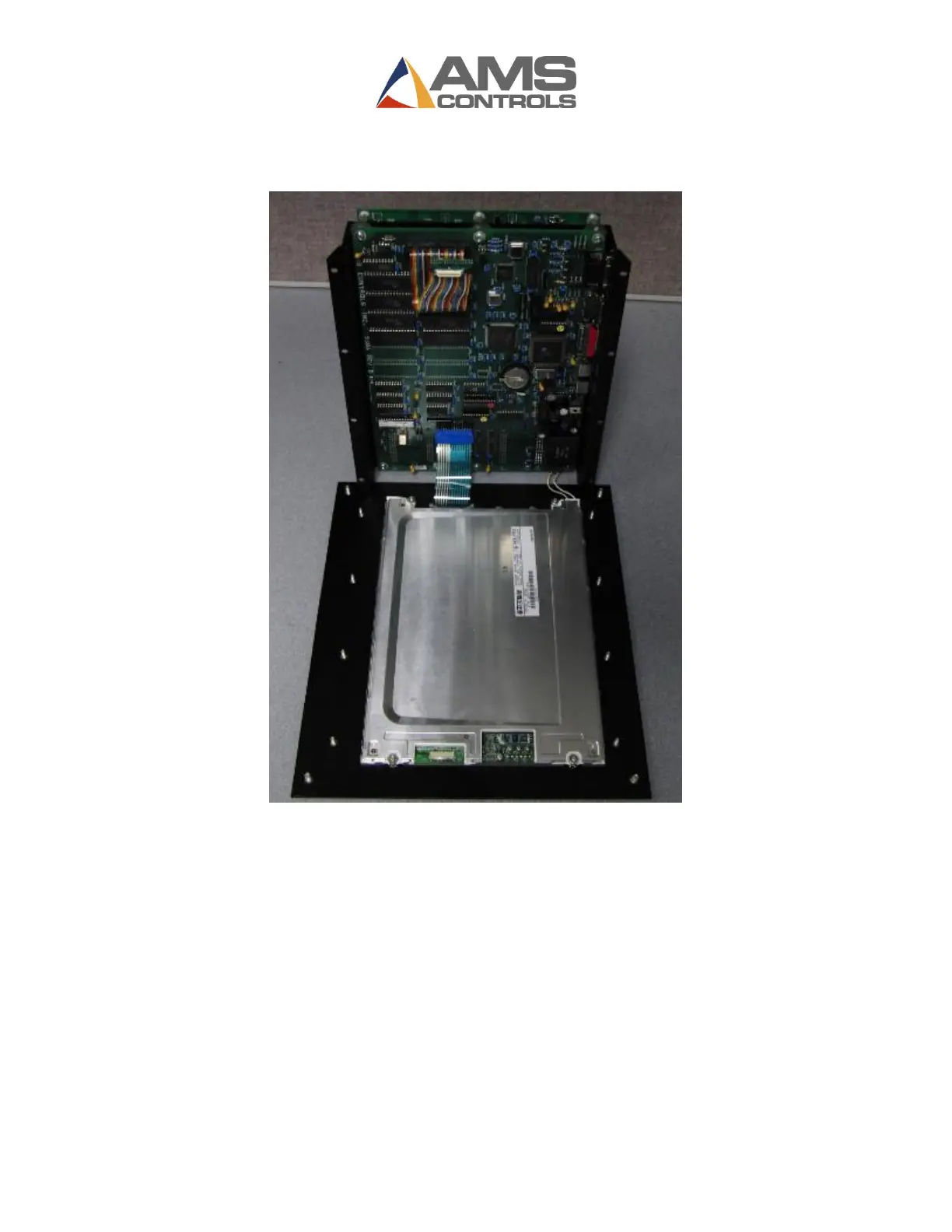

Figure 8 - Boards opened
