In stal la tion
The 1073s and 1084s are available as stand-alone modules, or in a choice of two housings.
The 3U rack houses two modules mounted horizontally in a 19” rack-mounting unit.
The 5U rack houses eight modules mounted vertically in a 19” rack-mounting unit.
Both have rear panels with XLRs for transformer balanced I/O.
The 3U rack rear panel has a fused, voltage selector IEC mains input connector. The 5U rack has a
free standing AC supply with a fused, voltage selector IEC mains input connector and connects to
the rack via a connector and a 1.5 meter cable.
Modules of any combination can be fitted into a rack unit.
User Guide Is sue 3 Page 2
1073 & 1084 Chan nel Am pli fiers In stal la tion

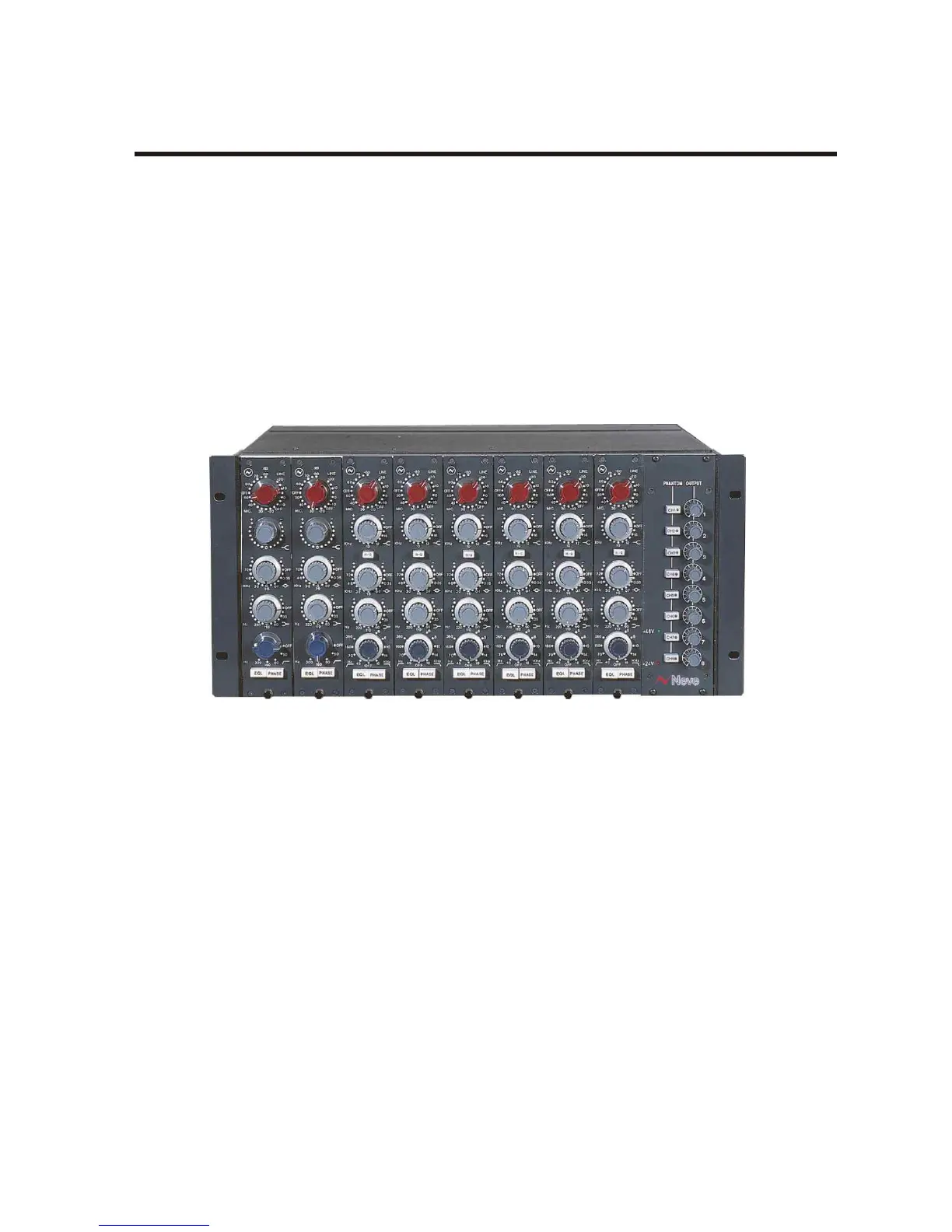

Ex am ple: 5U Rack fit ted with two 1073 mod ules and six 1084 mod ules
