Con nec tor De tails
User Guide Is sue 3 Page 5
1073 & 1084 Chan nel Am pli fiers Con nec tor De tails
Standalone 1073 & 1084

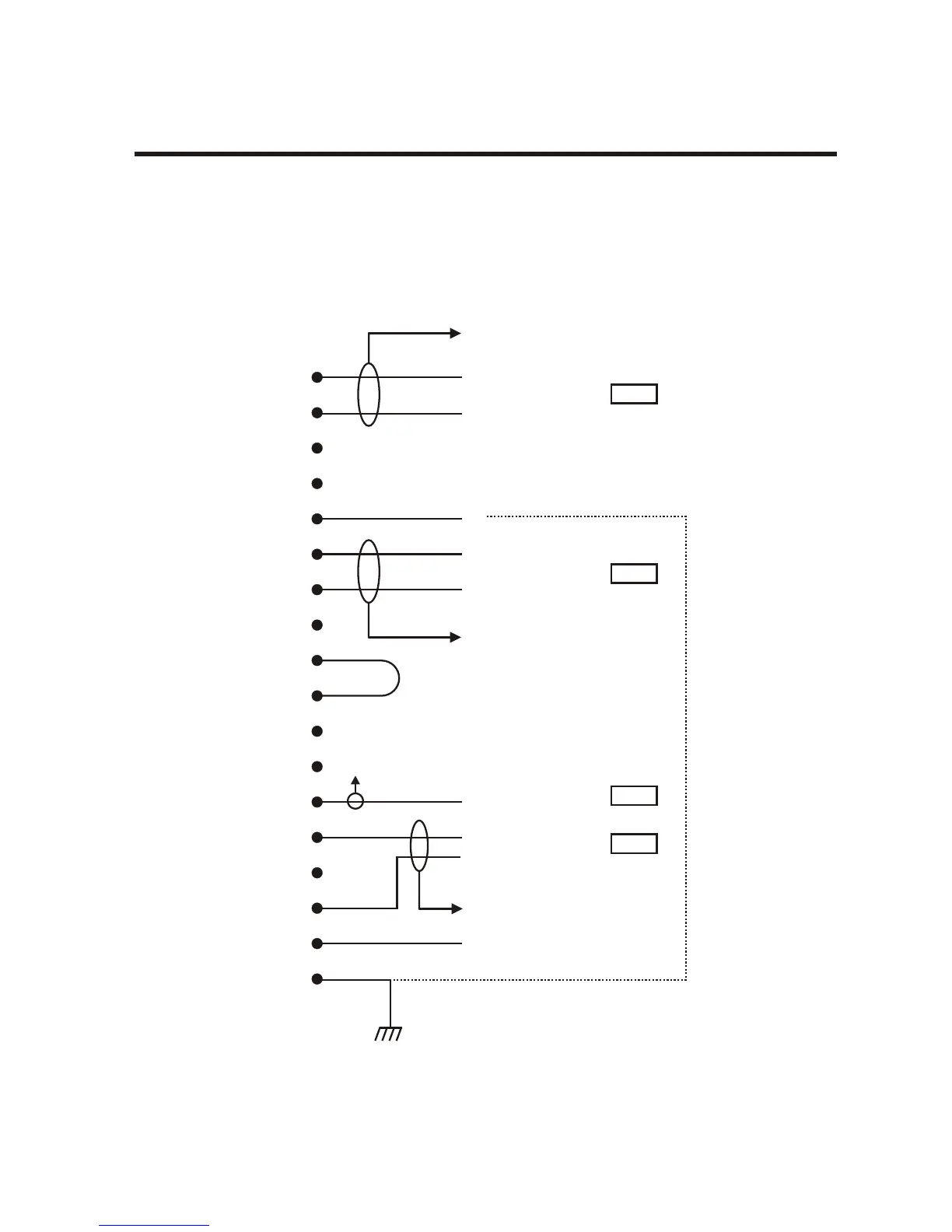

Module Wiring to 18 way Free Plug
A
B
C
D
E
F
H
J
K
L
M
N
P
R
S
T
U
V
0V
Hi
Lo
0V
Hi
Lo
Link
Unbalanced O/P
Hi
Lo
BAL O/P
+24V at 106mA
Mic I/P
Line I/P
-20dBu
-3dBu
0dBu
0dBu
Technical
Earth Link
To Pin V
To Pin V
To Pin V
