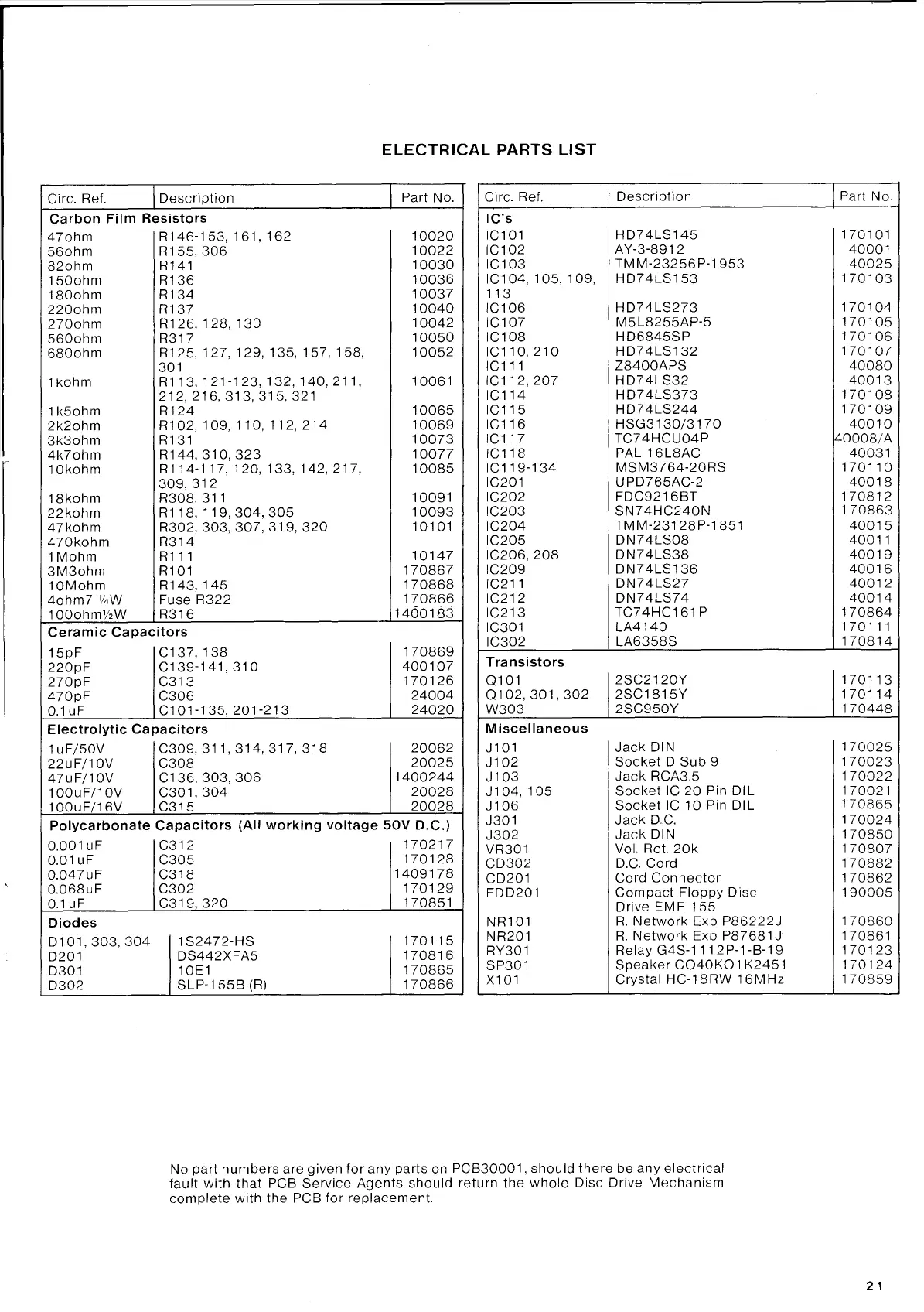

AMSTRAD CPC6128 - Electrical Parts List

ELECTRICAL PARTS LIST
Circ. Ref.
Description
Part No.
Carbon Film Resistors
470hm
R146-153, 161, 162
10020
560hm
R155,306
10022
820hm
R141
10030
1500hm
R136
10036
1800hm R134
10037
2200hm R137
10040
2700hm
R126, 128, 130
10042
5600hm
R317
10050
6800hm
R1 25, 127, 129, 135, 157, 158,
10052
301
1
kohm
R113, 121-123, 132, 140,211, 10061
212,216,313,315,321
1 k50hm R124
10065
2k2ohm
R102, 109, 110, 112,214
10069
3k30hm
R131
10073
4k7ohm
R144, 310,323
10077
10kohm
R114-117, 120, 133, 142,217,
10085
309,312
18kohm R308,311
10091
22kohm
R118,119,304,305
10093
47kohm
R302, 303, 307, 319, 320
10101
470kohm
R314
1 Mohm
R111
10147
3M30hm
R101
170867
10Mohm
R143,145
170868
4ohm7 V4W
Fuse R322
170866
100ohm1f2W
R316
1400183
Ceramic Capacitors
15pF C137,138
170869
220pF
C139-141,310
400107
270pF C313
170126
470pF C306
24004
0.1 uF
C101-135,201-213
24020
Electrolytic Capacitors
1 uF/50V
C309,311,314,317,318
20062
22uF/10V C308
20025
47uF/10V
C136, 303, 306
1400244
100uF/10V
C301,304
20028
100uF/16V
C315
20028
Polycarbonate Capacitors (All working voltage 50V D.C.)
0.001 uF
C312
170217
0.01 uF C305
170128
0.047uF
C318
1409178
0.068uF
C302
170129
0.1 uF
C319 320
170851
Diodes
D1 01,303,304
1S2472-HS
170115
D201
DS442XFA5
170816
D301
10E1
170865
D302
SLP-155B (R)
170866
Circ. Ref.
Description Part No.
IC's
IC101
HD74LS145 170101
IC102
AY-3-8912
40001
IC103
TMM-23256P-1953 40025
IC104, 105, 109,
HD74LS153 170103
113
IC106
HD74LS273 170104
IC107
M5L8255AP-5 170105
IC108
HD6845SP 170106
IC110,210
HD74LS132 170107
IC111
Z8400APS 40080
IC112,207
HD74LS32 40013
IC114
HD74LS373 170108
IC115
HD74LS244 170109
IC116
HSG3130/3170
40010
IC117
TC74HCU04P 40008/A
IC11 e
PAL 16L8AC 40031
IC119-134
MSM3764-20RS 170110
IC201
UPD765AC-2 40018
IC202
FDC9216BT
170812
IC203
SN74HC240N
170863
IC204
TMM-23128P-1851
40015
IC205
DN74LS08
40011
IC206,208
DN74LS38 40019
IC209
DN74LS136
40016
IC211
DN74LS27 40012
IC212
DN74LS74 40014
IC213
TC74HC161 P 170864
IC301
LA4140 170111
IC302
LA6358S
170814
Tra nsistors
Q101
/2SC2120Y
170113
Q1 02,301,302
2SC1815Y
170114
W303
2SC950Y
170448
Miscellaneous
J101
Jack DIN
170025
J102
Socket D Sub 9
170023
J103
Jack RCA3.5
170022
J104, 105
Socket IC 20 Pin DIL
170021
J106
Socket IC 10 Pin DIL
170865
J301
Jack DC.
170024
J302
Jack DIN
170850
VR301
Vol. Rot.
20k
170807
CD302
D.C. Cord 170882
CD201
Cord Connector 170862
FDD201
Compact Floppy Disc 190005
Drive EME-155
NR101
R. Network Exb P86222J
170860
NR201
R. Network Exb P87681 J
170861
RY301
Relay G4S-1112P-1-B-19 170123
SP301
Speaker C040K01 K2451 170124
X101
Crystal HC-18RW 16MHz 170859
No part numbers are given for any parts on PCB30001, should there be any electrical
fault with that PCB Service Agents should return the whole Disc Drive Mechanism
complete with the PCB for replacement.
21
