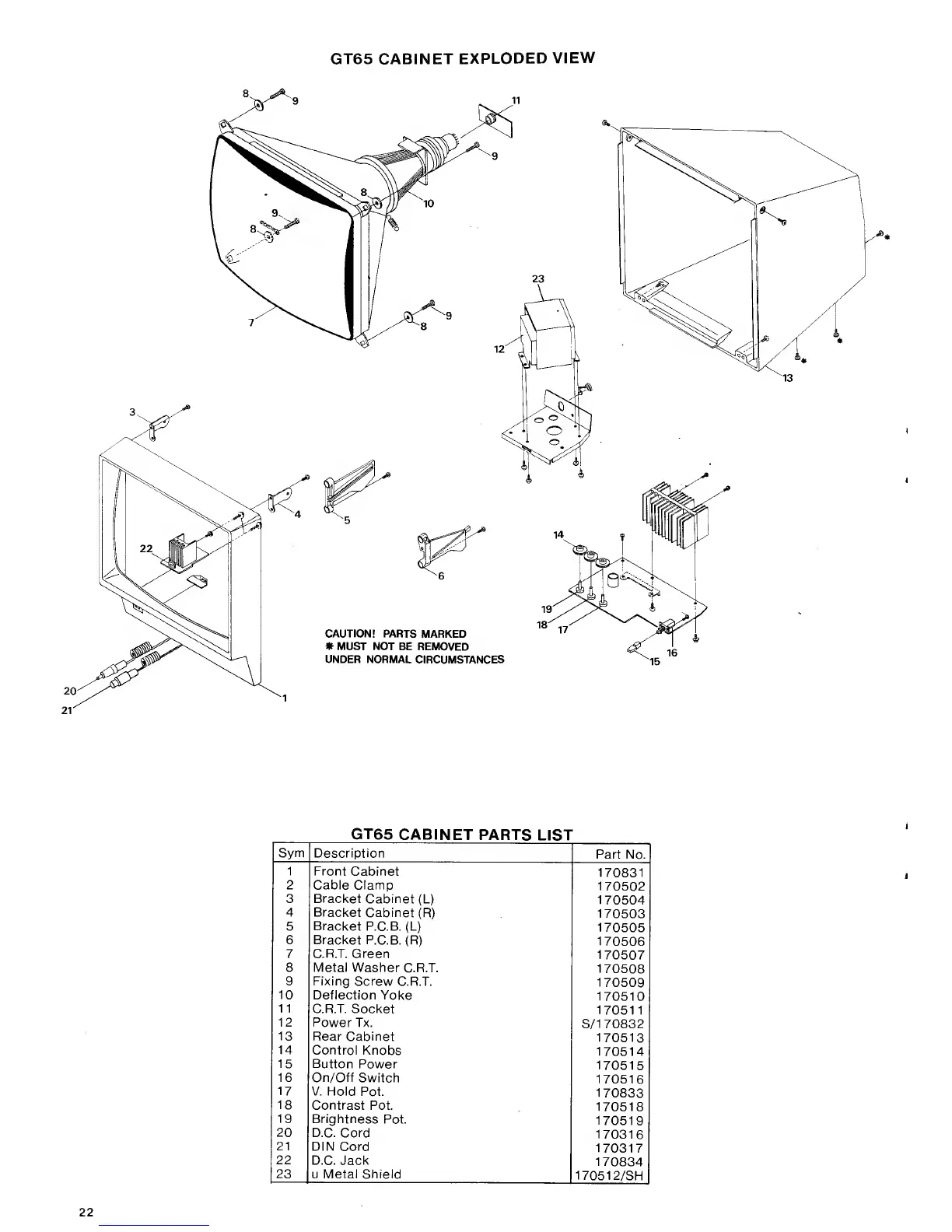

AMSTRAD CPC664 - Page 19

GT65 CABINET
EXPLODED
VIEW
y>.
CAUTION! PARTS
MARKED
* MUST NOT
BE REMOVED
UNDER NORMAL
CIRCUMSTANCES
GT65
CABINET
PARTS
LIST
Sym Description
Part No.
1 Front
Cabinet
170831
2 Cable Clamp
170502
3 Bracket Cabinet
(L)
170504
4 Bracket
Cabinet
(R)
170503
5
Bracket
P.C.B. (L)
170505
6 Bracket P.C.B.
(R)
170506
7 CRT. Green
170507
8 Metal Washer
CRT.
170508
9 Fixing Screw
CRT.
170509
10
Deflection Yoke
170510
11
CRT. Socket
170511
12 Power
Tx.
S/1 70832
13
Rear Cabinet
170513
14
Control Knobs
170514
15 Button
Power
170515
16 On/Off
Switch
170516
17
V. Hold
Pot.
170833
18
Contrast
Pot.
170518
19
Brightness
Pot.
170519
20
D.C Cord
170316
21
DIN Cord
170317
22
D.C. Jack
170834
23
u Metal Shield
170512/SH
