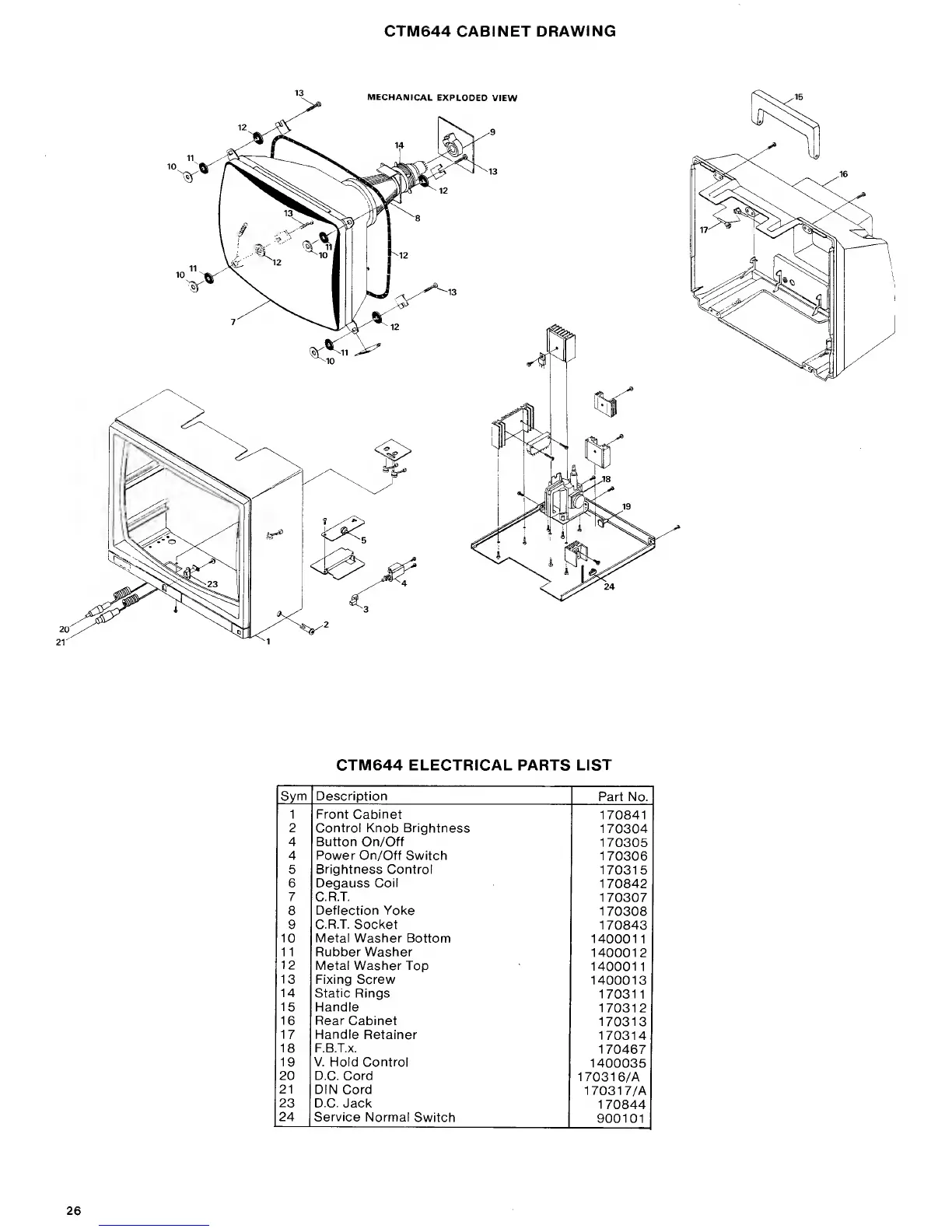

CTM644 CABINET
DRAWING
CTM644 ELECTRICAL PARTS LIST
Sym Description
Part No.
1 Front Cabinet
170841
2 Control Knob Brightness
170304
4 Button On/Off
170305
4 Power On/Off Switch
170306
5
Brightness
Control
170315
6 Degauss
Coil
170842
7 CRT.
170307
8
Deflection Yoke
170308
9
CRT. Socket
170843
10 Metal Washer Bottom
1400011
11 Rubber Washer
1400012
12
Metal Washer Top
1400011
13
Fixing Screw
1400013
14 Static
Rings
170311
15
Handle
170312
16 Rear
Cabinet
170313
17 Handle
Retainer
170314
18 F.B.T.x.
170467
19 V. Hold Control
1400035
20 D.C. Cord
170316/A
21
DIN Cord
170317/A
23
D.C. Jack
170844
24 Service
Normal
Switch
900101
26
