AMSTRAD TS80 - Page 10

10
Item
A102110
A117441
A117382
A106210
A114446
A114621
A104189
B117437
A114759
A102166
A106089
A106510
A102126
A102616
A116570
B116574
A106513
A102718
A114784
A114759
A106089
A106206
A106510
A117393
A106749
A111516
A104865
A105267

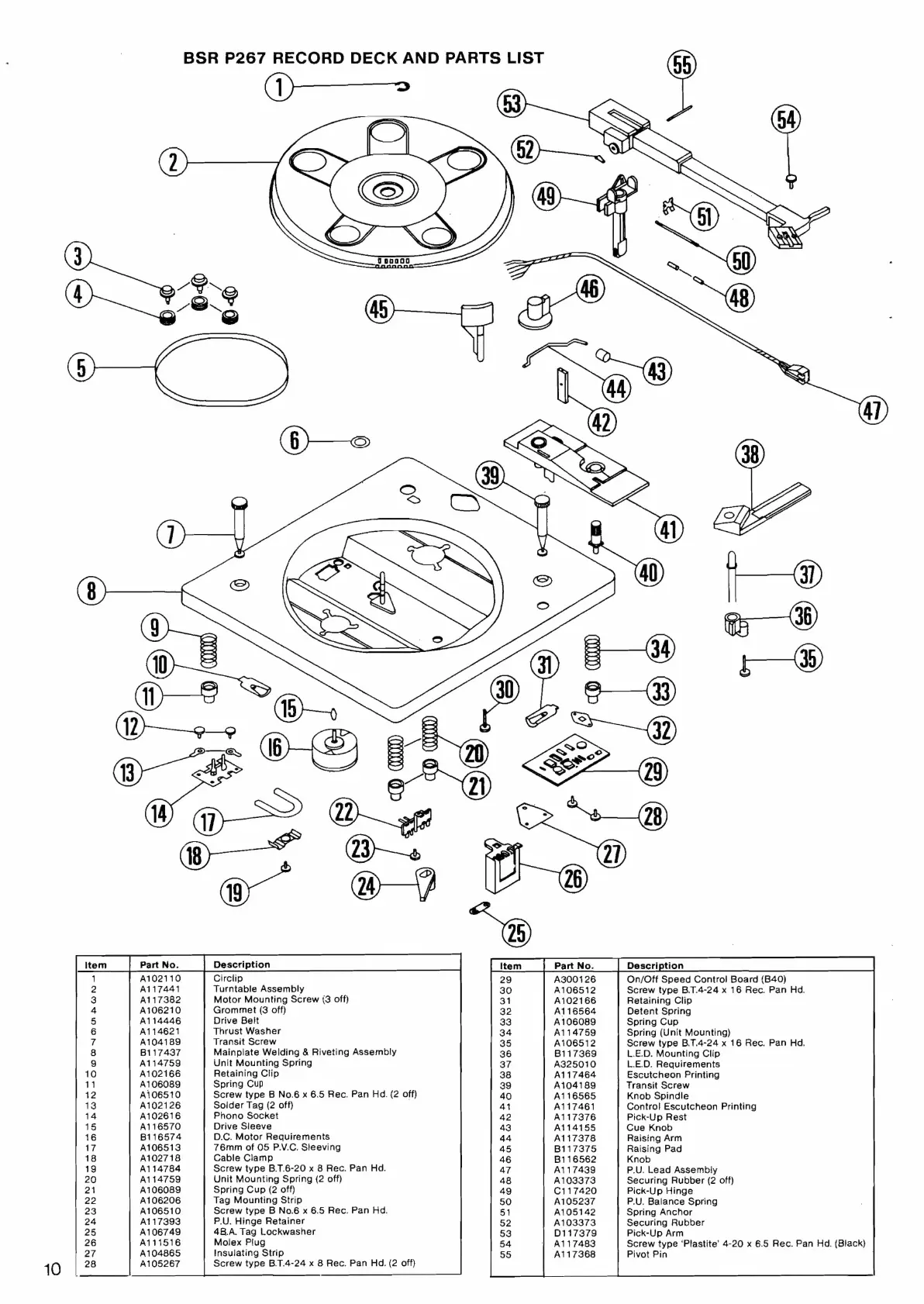

BSR P267 RECORD DECK AND PARTS LIST
| PartNo. | Description
Circlip
Turntable Assembly
Motor Mounting Screw (3 off)
Grommet (3 off}
Drive Belt
Thrust Washer
Transit Screw
Mainplate Welding & Riveting Assembly
Unit Mounting Spring
Retaining Ctip
Spring Cup
Screw type B No.6 x 6.5 Rec. Pan Hd. (2 off)
Solder Tag (2 off)
Phono Socket
Drive Sleeve
D.C. Motor Requirements
76mm of 05 P.V.C. Sleeving
Cable Clamp
Screw type B.T.6-20 x 8 Rec. Pan Hd.
Unit Mounting Spring (2 off)
Spring Cup (2 off)
Tag Mounting Strip
Screw type B No.6 x 6.5 Rec. Pan Hd.
P.U. Hinge Retainer
4B.A. Tag Lockwasher
Molex Plug
Insulating Strip
Screw type B.T.4-24 x 8 Rec. Pan Hd. (2 off}
A300126
A106512
A102166
A116564
A106089
A114759
A106512
B117369
A325010
A117464
A104189
A116565
A117461
A117376
A114155
A117378
B117375
B116562
A117439
A103373
117420
A105237
A105142
A103373
D117379
A117483
A117368
Description
On/Off Speed Control Board (B40)
Screw type B.T.4-24 x 16 Rec. Pan Hd.
Retaining Clip
Detent Spring
Spring Cup
Spring (Unit Mounting)
Screw type B.T.4-24 x 16 Rec. Pan Hd.
L.E.D. Mounting Clip
L.E.D. Requirements
Escutcheon Printing
Transit Screw
Knob Spindle
Controt Escutcheon Printing
Pick-Up Rest
Cue Knob
Raising Arm
Raising Pad
Knob
P.U. Lead Assembly
Securing Rubber (2 off)
Pick-Up Hinge
P.U. Balance Spring
Spring Anchor
Securing Rubber
Pick-Up Arm
Screw type ‘Plastite’ 4-20 x 6.5 Rec. Pan Hd. (Black)
Pivot Pin
