AMX DGX3200-ENC User Manual

Switching, Configuration, and Status
172
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
DXLink Video Settings
DXLink specific video settings display when a DXLink Twisted Pair or DXLink Fiber Transmitter or Receiver (or other DXLink
equipment) is connected to the selected input or output. These settings display in addition to the normal video settings for the
input or output described in the previous section. The Video tabbed view must be selected.
DXLink (Twisted Pair or Fiber) Transmitters (for selected video input)
Video Priority – click either the HDMI, Analog, or Manual button.
AV Source – click Analog or Digital.
Video Type – non-editable.

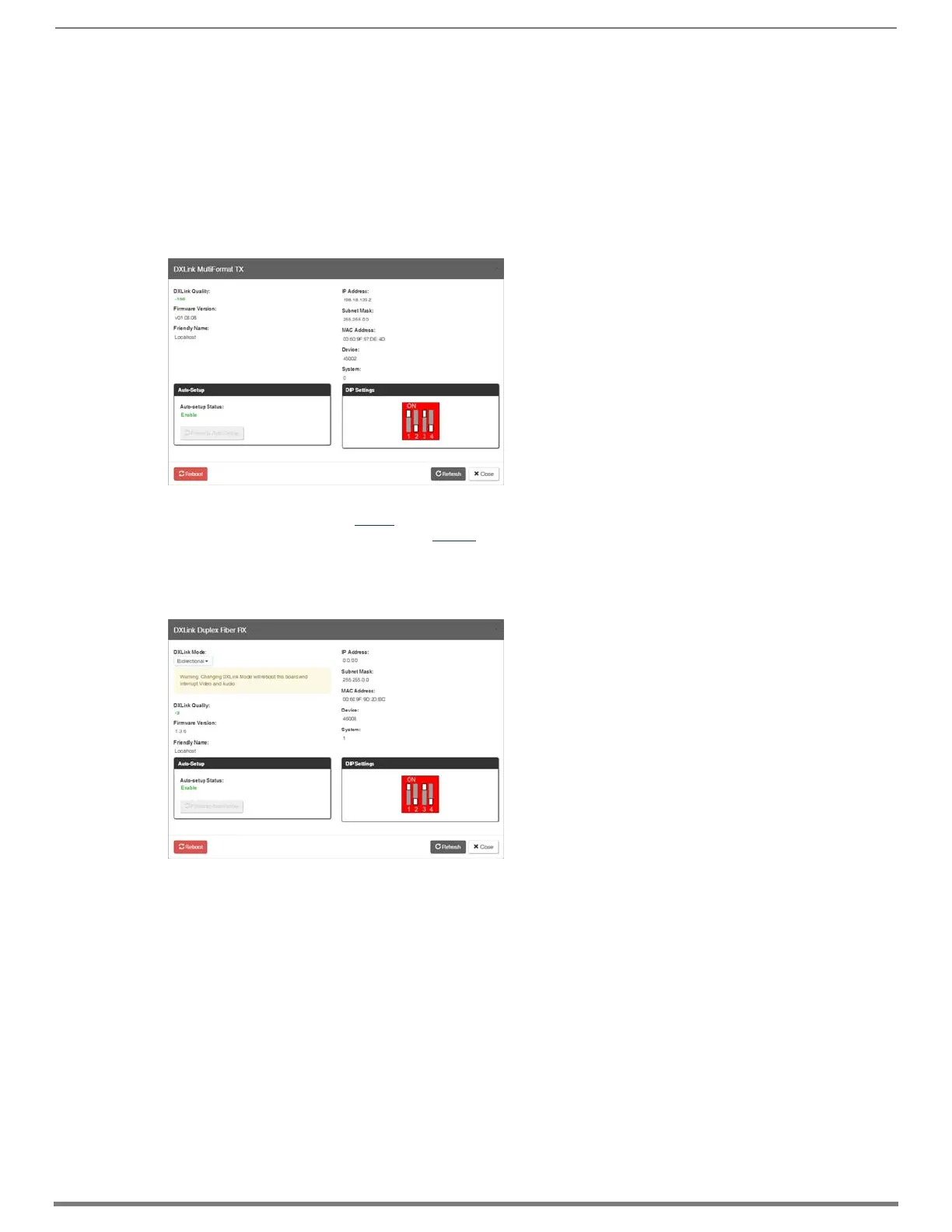

DXLink Details button – click to display additional settings for the DXLink Transmitter.
VGA Settings (DXLink Twisted Pair only) – use sliders to adjust Phase, Horizontal Shift, and Vertical Shift settings.
IMPORTANT: The DXLink settings are not asynchronous. To obtain the latest information, the Refresh button in the dialog box that
opens when the DXLink Details button is clicked must be clicked.
DXLink (Twisted Pair or Fiber) Receivers (for selected video output)
DXLink Details button – click to display additional settings for the DXLink Receiver.
TX Settings:
DXLink Quality – green = good, red = poor
DXLink Twisted Pair quality range is from -100 to 0 with
the best quality at -100 and the worst quality at 0.
DXLink Fiber quality range is from 0 to -100 with the best
quality at 0 and the worst quality at -100.
Firmware Version – current version
Friendly Name – current name
IP Address – for auto-setup, displays integrated
Master’s IP address
Subnet Mask – current setting
D. P. S. – current setting
MAC Address – current setting
Auto-Setup – Status (Enable/Disable) and Force to
Auto-setup button
DIP Settings – indicates settings on DIP switch
Reboot button – reboots TX
Refresh button – updates status of TX settings
RX Settings:
DXLink Quality – green = good, red = poor
DXLink Twisted Pair quality range is from -100 to 0 with
the best quality at -100 and the worst quality at 0.
DXLink Fiber quality range is from 0 to -100 with the best
quality at 0 and the worst quality at -100.
Firmware Version – current version
Friendly Name – current name
IP Address – for auto-setup, displays integrated
Master’s IP address
Subnet Mask – current setting
D. P. S. – current setting
MAC Address – current setting
Auto-Setup – Status (Enable/Disable) and Force to
Auto-setup button
DIP Settings – indicates settings on DIP switch
Reboot button – reboots RX
Refresh button – updates status of RX settings
