MST/D-1001 - 10.1" S Series Touch Panels
10
Modero S Series Touch Panels - Installation & Hardware Reference Manual
MST/D-1001 - 10.1" S Series Touch Panels
MST-1001 (Tabletop)
MST-1001 Specifications

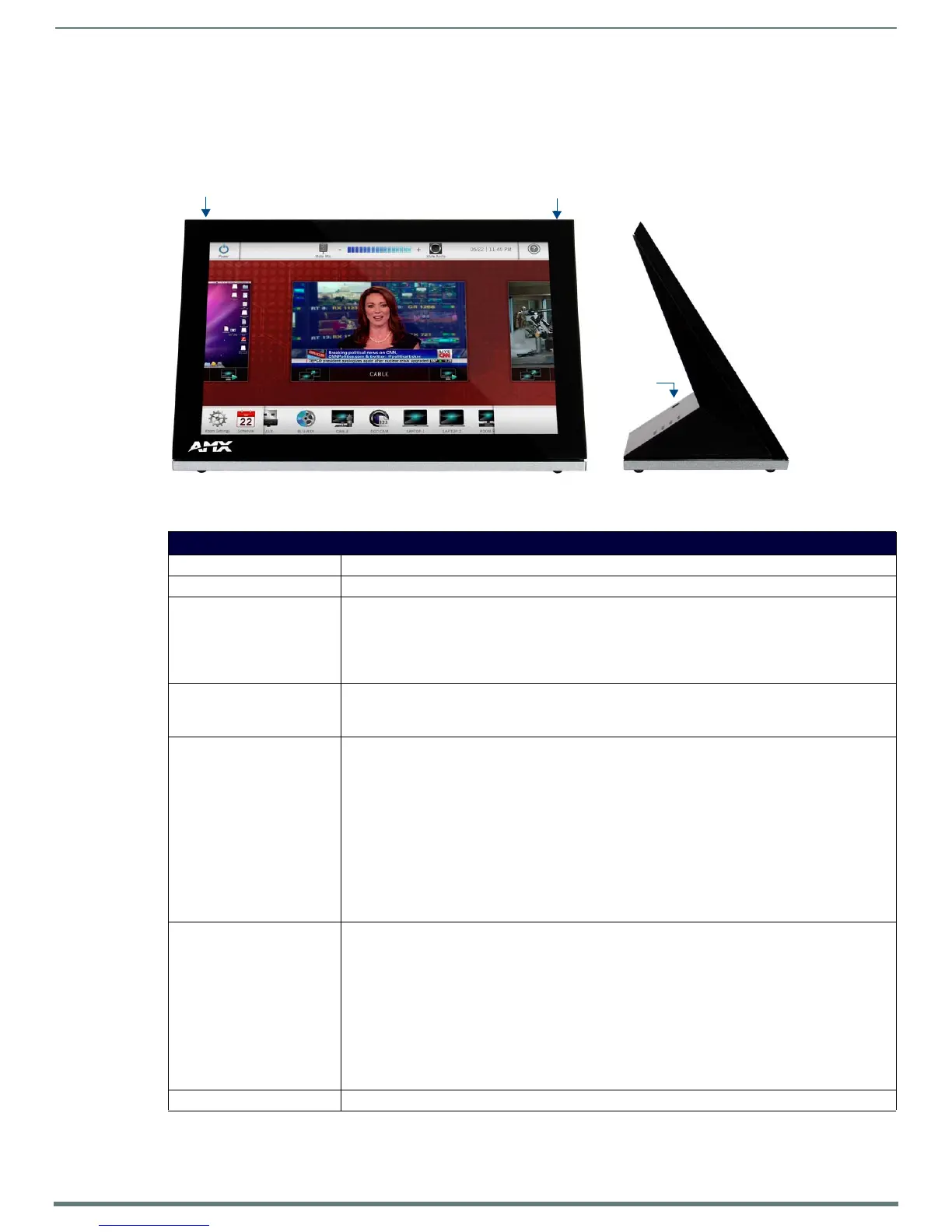

FIG. 6 MST-1001
MST-1001 Specif ications
DIMENSIONS (HWD) 6 13/16" x 10 1/16" x 2" (174mm x 255mm x 51mm)
WEIGHT 2.6 lbs (1.179 Kg)
POWER CONSUMPTION • Full-On: 14W (max)
•Typical: 7.5W
•Standby: 4.5W
• Shutdown: 0.7W
• Start-Up Inrush Current: Not applicable due to PoE standard
EXTERNAL POWER SUPPLY
REQUIRED
Optimal performance requires use of one of the following AMX PoE power supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
CERTIFICATIONS • FCC Part 15 Class B
• CE EN 55022
• CE EN 55024
• CE EN 60950-1
•IEC 60950-1
• C-Tick CISPR 22 Class B
• IC CISPR 22 Class B
•UL 60950-1
• VCCI CISPR 22 Class B
•RoHS
•WEEE
TOUCH SCREEN DISPLAY • Display Type: TFT Active Matrix Color LCD
• Display Size (WH): Landscape: 9.1" x 5.9" (230mm x 149mm), 10.8" (274mm) diagonal
• Viewable Area (WH): Landscape: 8.5" x 5.4" (217mm x 136mm ), 10.0" (256mm) diagonal
• Resolution: Landscape: 1280x800
• Aspect Ratio: Landscape: 16:9
• Brightness: 350 cd/m2
• Contrast Ratio: 800:1
• Color Depth: 16.7M colors
• Illumination: LED
•Touch Overlay: Resistive
VIEWING ANGLE 85°/85°/85°/85° (Up/Down/Left/Right)
Sleep Button
Microphone
USB Port
