Installation
18
MXD/T-1000 10.1" Modero® X Series Touch Panels
11. Test the incoming wiring by attaching the panel connections to their terminal locations and applying
power. Verify that the panel is receiving power and functioning properly to prevent repetition of the
installation.
12. Latch the panel onto the top hooks on the back box and push it down (Landscape) onto the bottom snaps
or on the left side and push it to the right (Portrait) (FIG. 19). Press gently but firmly on the ends until the
snaps “click” to lock it down.

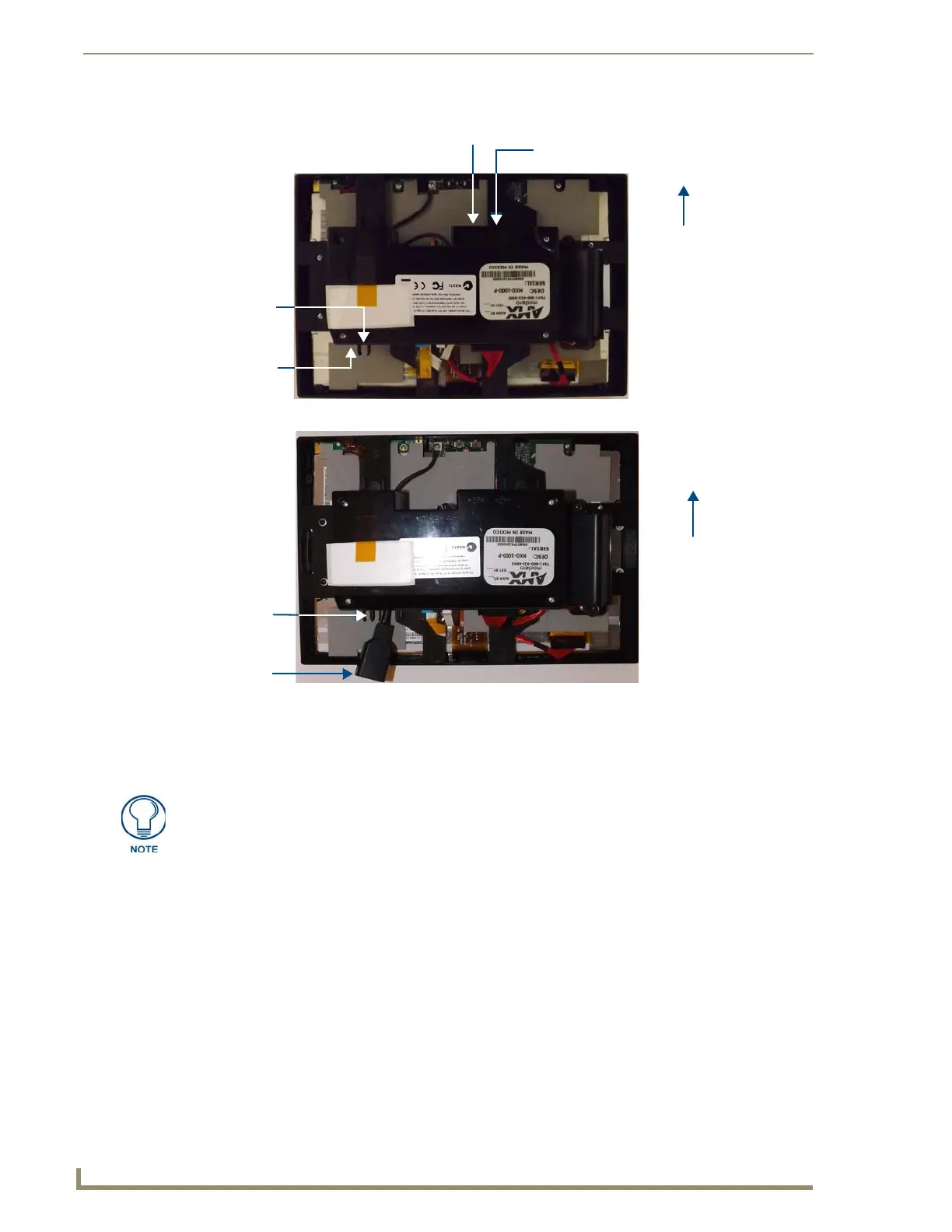

FIG. 17 Rear of the MXD-1000 (Portrait)
FIG. 18 Rear of the MXD-1000 (detail of the RJ45 connection)
RJ45
Port
USB
Port
Micro-USB
Port
Top
RJ45
cable
clip
Do not disconnect the connectors from the touch panel. The unit must be installed
with the attached connectors before being inserted into the mounting surface.
