MXD/T-1000 10.1" Modero® X Series Touch Panels
Connector Locations
With the unit facing you, the two USB ports for peripherals are located on the rear right corner of the device
(FIG. 3). The RJ45 connector for PoE, as well as a 5-pin Micro-USB port, is also located on the back of the
device.
In addition to its speaker, the MXT-1000 also utilizes its Micro-USB port for video output from camera video
and microphone output.
MXT-1000 Specifications (Cont.)
Video:
Supported Video Codecs: • MPEG2-TS: MPEG-2 Main Profile @High Level up to 720p at 25 fps (decode
only)
• MJPEG up to 720p at 25 fps (decode only)
Streaming/File Formats: MPEG-TS for MPEG2; HTTP for MJPEG
Video Conferencing: External application using on-board camera and microphone through
Micro-USB connection.
Audio:
Streaming/File Formats: WAV, MP3
Intercom: Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG)
Operating Environment: • Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
• Power ("Heat") Dissipation: On: 27.3 BTU/hr, Standby: 10.9 BTU/hr
Dimensions (HWD):
6 14/16" x 9 14/16" x 4 14/16" (174 mm x 252 mm x 124 mm)
Weight:
3.0 lbs (1.36 Kg)
Certifications: • FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
•IC
• IEC/EN-60950
•RoHS
Included Accessories: • MXT-1000 Installation Guide (93-5968-03)
• MXA-CLK Modero X Series Cleaning Kit (FG5968-16)
• HPG-10 .75-inch HydraPort .75-IN. Grommet (FG570-01)
• MXA-USB-C USB Cover Kit (FG5968-18)
Other AMX Equipment: • PS-POE-AT, High-Power PoE Injector (FG423-81)
• PS-POE-AF-TC, POE Injector, 802.3af Compliant (FG423-83)
• MXA-BT Bluetooth USB Adaptor (FG5968-19)
• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)
• NXA-ENET8POE, Gigabit PoE Ethernet Switch (FG2178-62)
• NXA-ENET8-2POE, Gigabit Switch, 8 Port POE, 2 Port SFP (FG2178-63)

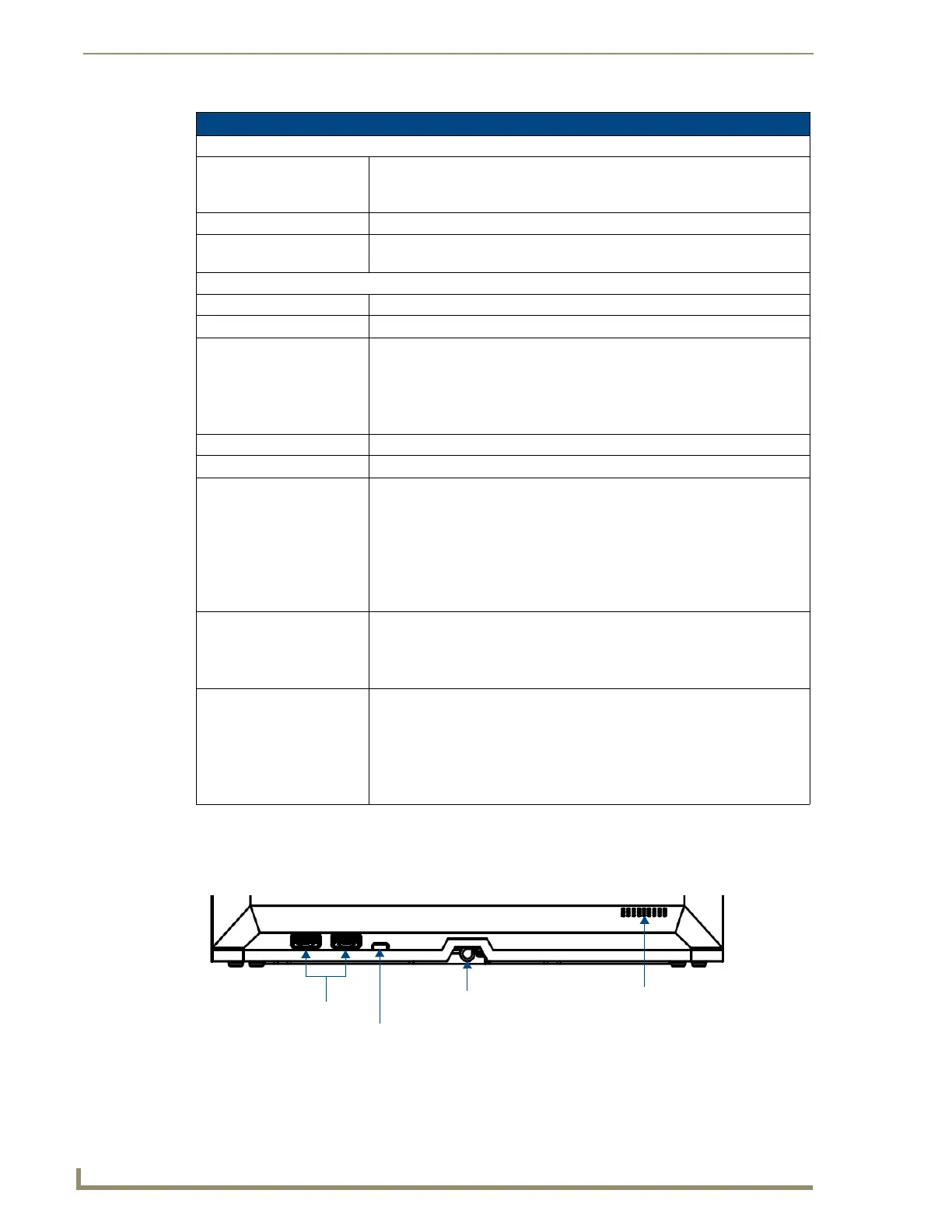

FIG. 3
MXT-1000 USB port location
Micro-USB
USB Ports
Entry for RJ45/
PoE Cable
Port
Speaker
