MXD/T-700 7" Modero X Series® Touch Panels

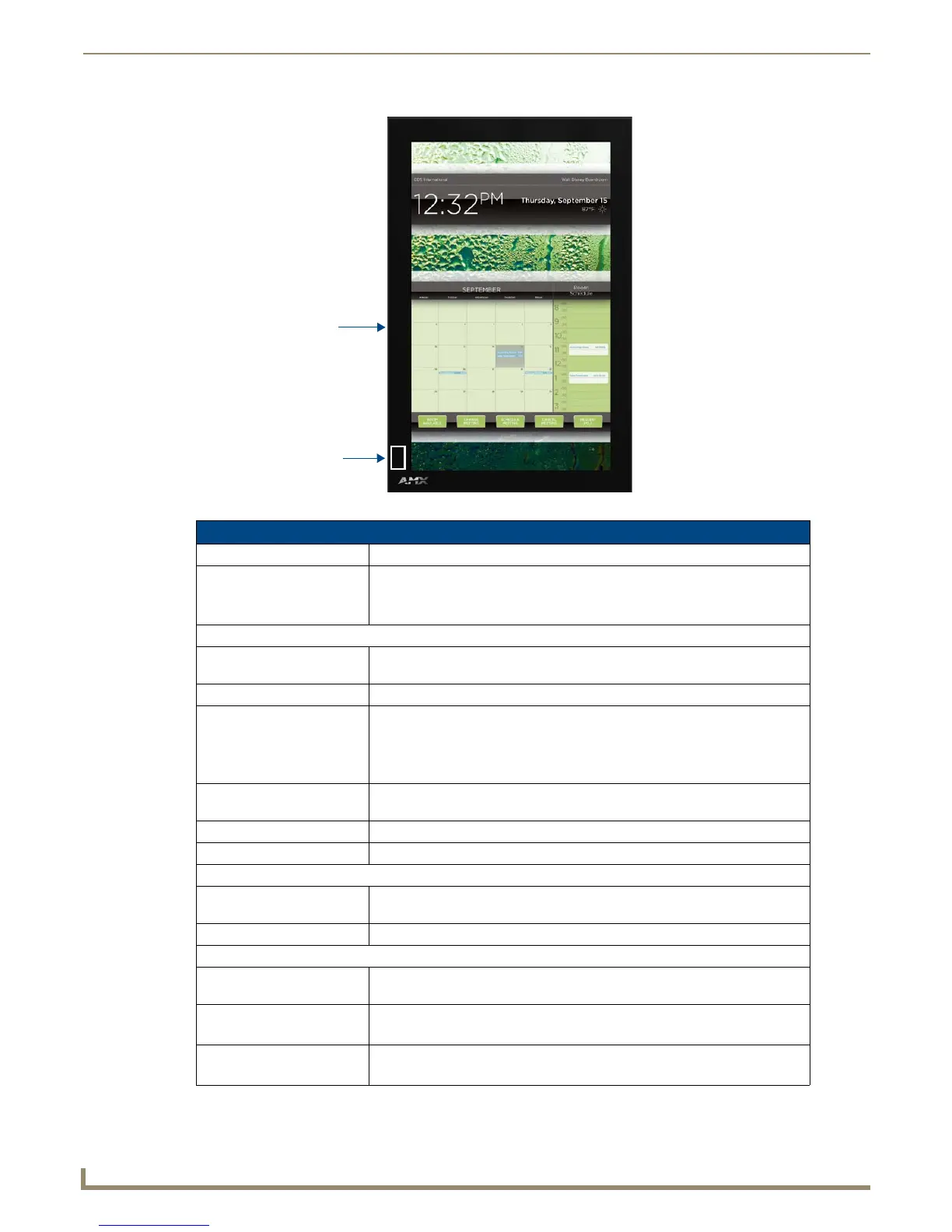

FIG. 5 MXD-700 (Portrait Wall Mount)
MXD-700 Specifications
Power Requirements: PoE (Power over Ethernet), 802.3af, class 3
Power Consumption: • Full-On: 8W maximum
• Standby: 3.2 W
• Shutdown: 1 W
Front Panel Components:
NFC Transceiver: Antenna and transceiver for Near Field Communications device detection and
interaction.
Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness.
Motion Sensor: Proximity detector to wake the panel when it is approached.
• Typical Range: 1 foot (30.48 cm)
• Maximum Range: 3 feet (91.44 cm)
• Range width: 10 degrees
Sleep Button: Single button on edge of panel for placing panel in sleep mode, for powering off
the panel, and for accessing the Settings Pages.
Microphone: -42dB ± 3dB sensitivity FET microphone
Speakers: 4 ohm, 2 Watt, 300Hz cutoff frequency
Rear Panel Components:
USB Port: USB connector used for keyboard and mouse connections, or for firmware
uploads.
Ethernet 10/100 Port: 10/100 Base-T RJ-45 connector for Ethernet connectivity and PoE.
Touch Panel Display:
Display Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide viewing
angle technology
Display Size: • Landscape: 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
• Portrait: 4.8" x 7.3" (122 mm x 186 mm), 8.8" (222 mm) diagonal
Viewable Area
(W x H):
• Landscape: 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
• Portrait: 3.54" x 6.05" (90 mm x 154 mm), 7.0" (178 mm) diagonal
