Installation
14
MXD/T-700 7" Modero X Series® Touch Panels
To disconnect and reconnect the MXT-700’s Ethernet cable to allow use of a hole smaller than 1.00” in diameter:
1. On a soft surface, turn the MXT-700 face-down to access the bottom of the device.
2. Remove the clamp holding the Ethernet cable (FIG. 11) until the Ethernet cable moves freely.
3. Remove the Ethernet cable connector and pull the cable out of the clamp.
4. Pass the Ethernet cable (ECA5968-05) through the hole, with the RJ45 connector on the other side of the
installation surface from the device.
5. Press the Ethernet cable back into the clamp. Do NOT tighten the clamp at this time.
6. Using a nonconductive item such as a wooden stick, reinsert the Ethernet cable connector into the device. Use the
stick to ensure that the connector is properly seated.
7. Tighten the clamp to secure the Ethernet cable. Make sure the clamp is around the bundled black cable, not the
individual wires
8. Connect the RJ45 connector to its incoming Ethernet cable and apply power.

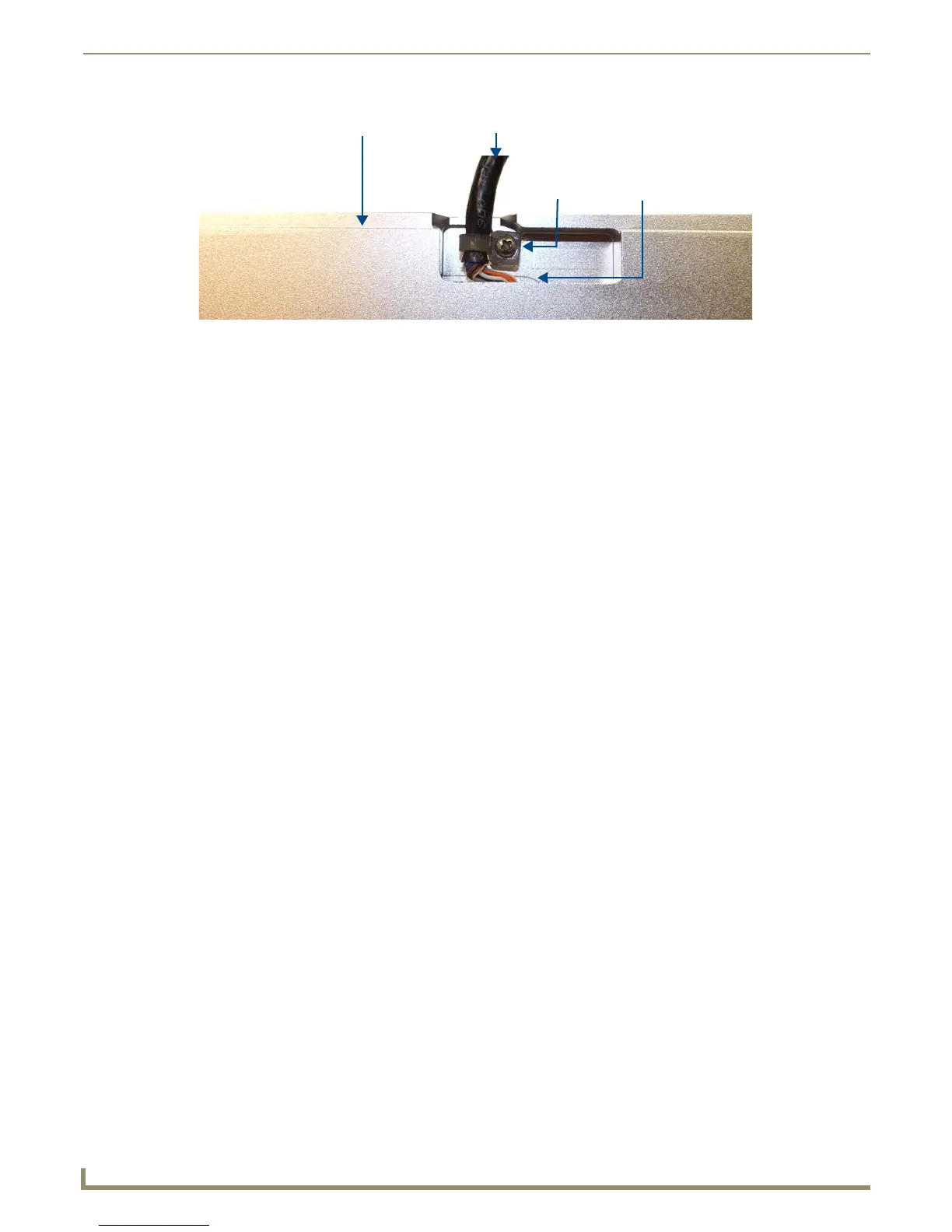

FIG. 11 Bottom of the MXT-700
Ethernet Cable
Connector
Clamp
MXT-700
