Installation
18
MXD/T-700 7" Modero X Series® Touch Panels
To install the back box:
1. Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.
2. For best results, use the MXD-700 Installation Template (68-5968-04) to ensure proper placement (FIG. 18). The
template is marked on one side with directions for both landscape and portrait installations to ensure that the touch
panel and back box are properly aligned.
3. After ensuring proper placement, cut out the mounting surface for the back box, using the MXD-700 Installation
Template as a guide.
The maximum recommended torque to screw in the locking tabs on the plastic back
box is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening the tab screws,
such as with powered screwdrivers, can strip out the locking tabs or damage the
plastic back box.

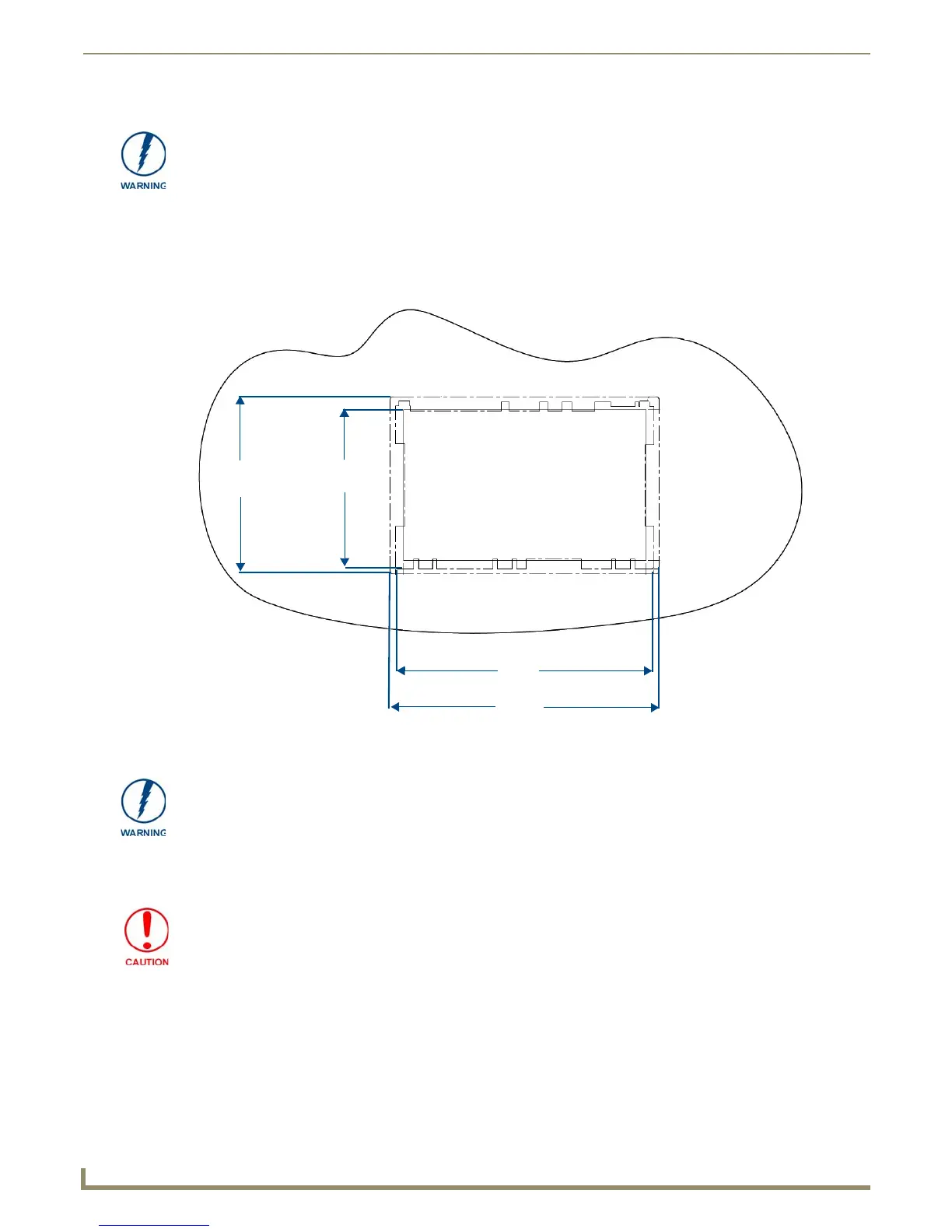

FIG. 18 MXD-700 Installation Template
7 5/16"
6 9/16"
4 1/16"
4 13/16"
(10.32 cm)
(12.22 cm)
(18.50 cm)
(16.67 cm)
Using the included template to select the final placement of the back box is highly
recommended. The outside edges of the template are the same dimensions as the
touch panel, which allows you to troubleshoot possible conflicts with wall edges,
doors, and other potential obstacles.
Making sure the actual cutout opening is slightly smaller than the provided
dimensions is highly recommended. This action provides the installer with a margin
for error if the opening needs to be expanded. Too little wall material removed is
always better than too much.
