PLB-AMP8 8-Channel Audio Power Amplifier
Product Information
The PLB-AMP8 (FIG. 1) provides eight channels of amplification. The gain for each channel can
be controlled from a variety of points, including PHASTLink devices, push-button controls at the
back of the amplifier, and via a PC, using the amplifier's properties page in the Landmark software.
Individual LEDs above each channel indicate selected channels. Channel volume levels (0-99) for
selected channels are displayed on LEDs at the back of the amplifier.
Product Specifications

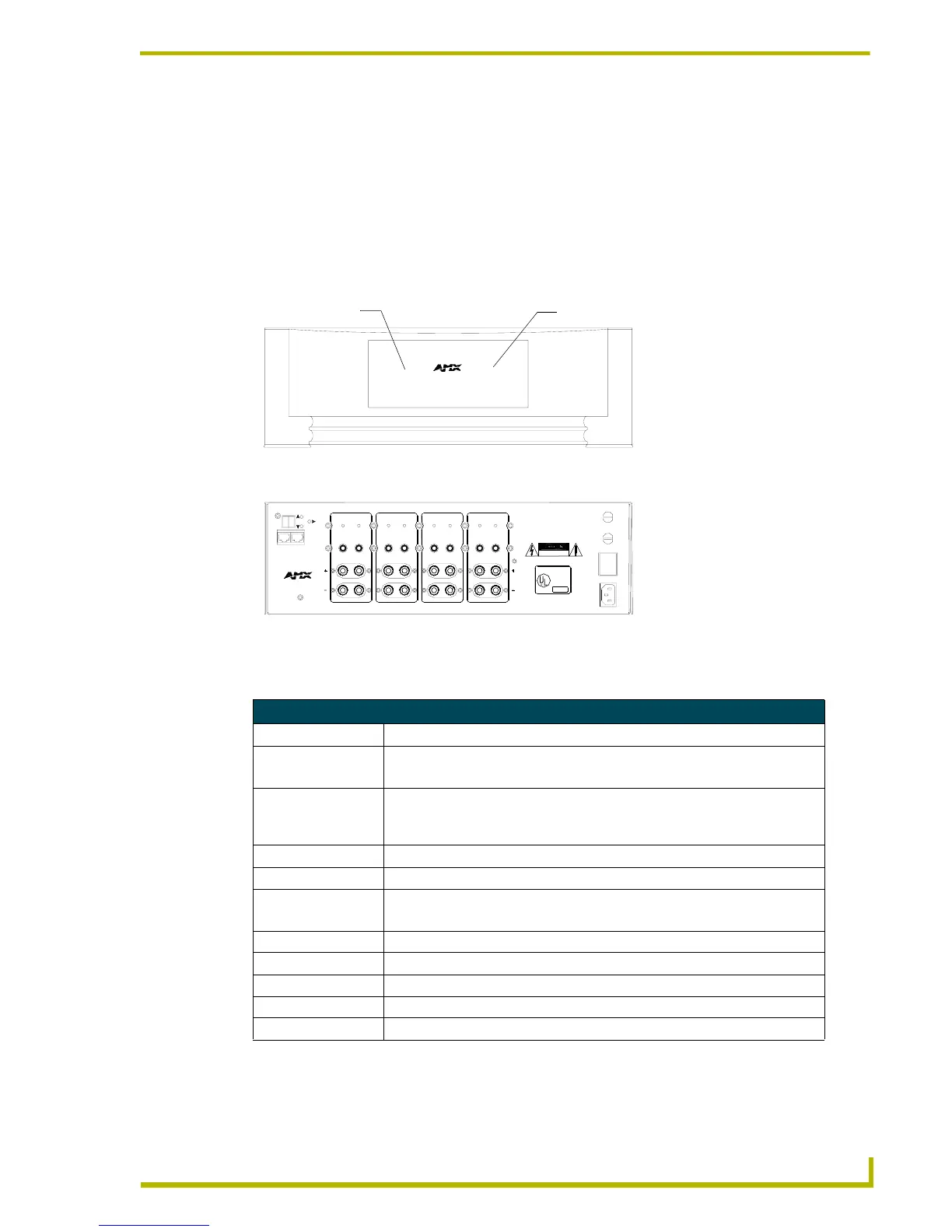

FIG. 1 PLB-AMP8 8-Channel Audio Power Amplifier (front and rear views)
PLB-AMP8 Specifications
Dimensions 5.56" x 17.13" x 15.25" (14.12 cm x 43.51 cm x 38.74 cm)
Power • 115 (Domestic use) VAC, 60 Hz, 4.2 A (idle state)
• 9 A maximum current draw
LEDs • Power LED (green)
• Link LED (red) - conditions are full on/off and blinking (used for ID mode
recognition)
Number of Channels 8
Level Steps 100-step resolution
Manual Setup • LED level display
• Channel select, level buttons
Audio 1-8 Inputs 8 RCA female phone jacks
Speaker 1-8 Outputs 8 Stereo terminal speaker binding posts (16 total)
Wiring 2 RJ-45 PhastLink ports
S/N Ratio >92db
THD < .03%
