VOLTAGE CONTROLLED AMPLIFIER
The VCA is hard wired in series after the filter. The VCA is used to change the output
level of the synth over time.

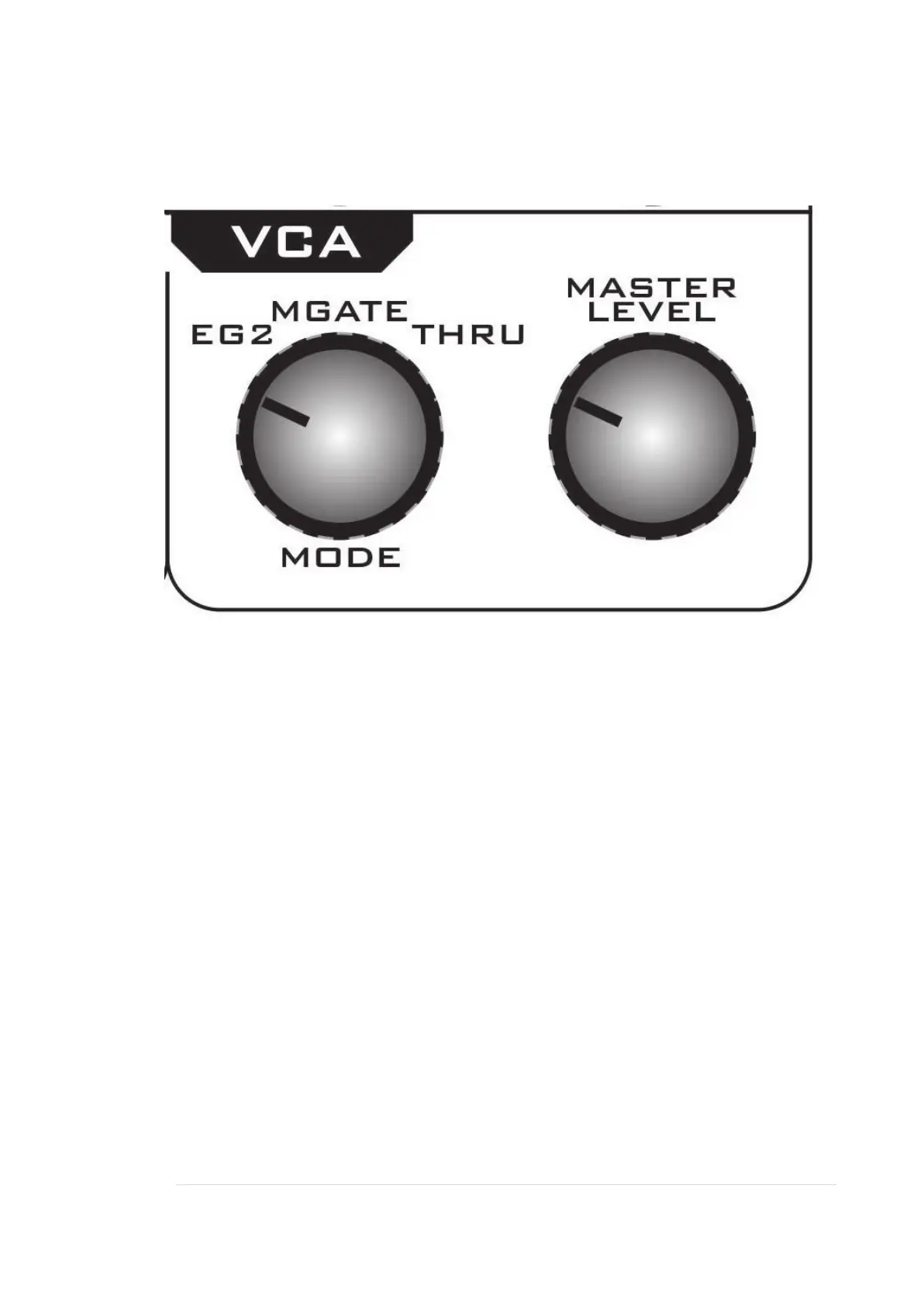

MODE
Use to select what is used to modulate the VCA.
EG2
Envelope 2 is the source.
MGATE
MIDI gate (note on/off) is the source.
THRU
The VCA is held open (drone / always on).
MASTER LEVEL
This is the final level control of the ‘final’ audio (post VCA) that is fed out of the rear
panel audio out jack.
