BST100 MANUAL
3
5. Operation Instruction
The tester is powered by the vehicle battery. Please connect the RED clamp to the positive terminal,
and connect the BLACK clamp to the negative terminal. Ensure two clamps are fully and firmly
connected to the terminals of battery.

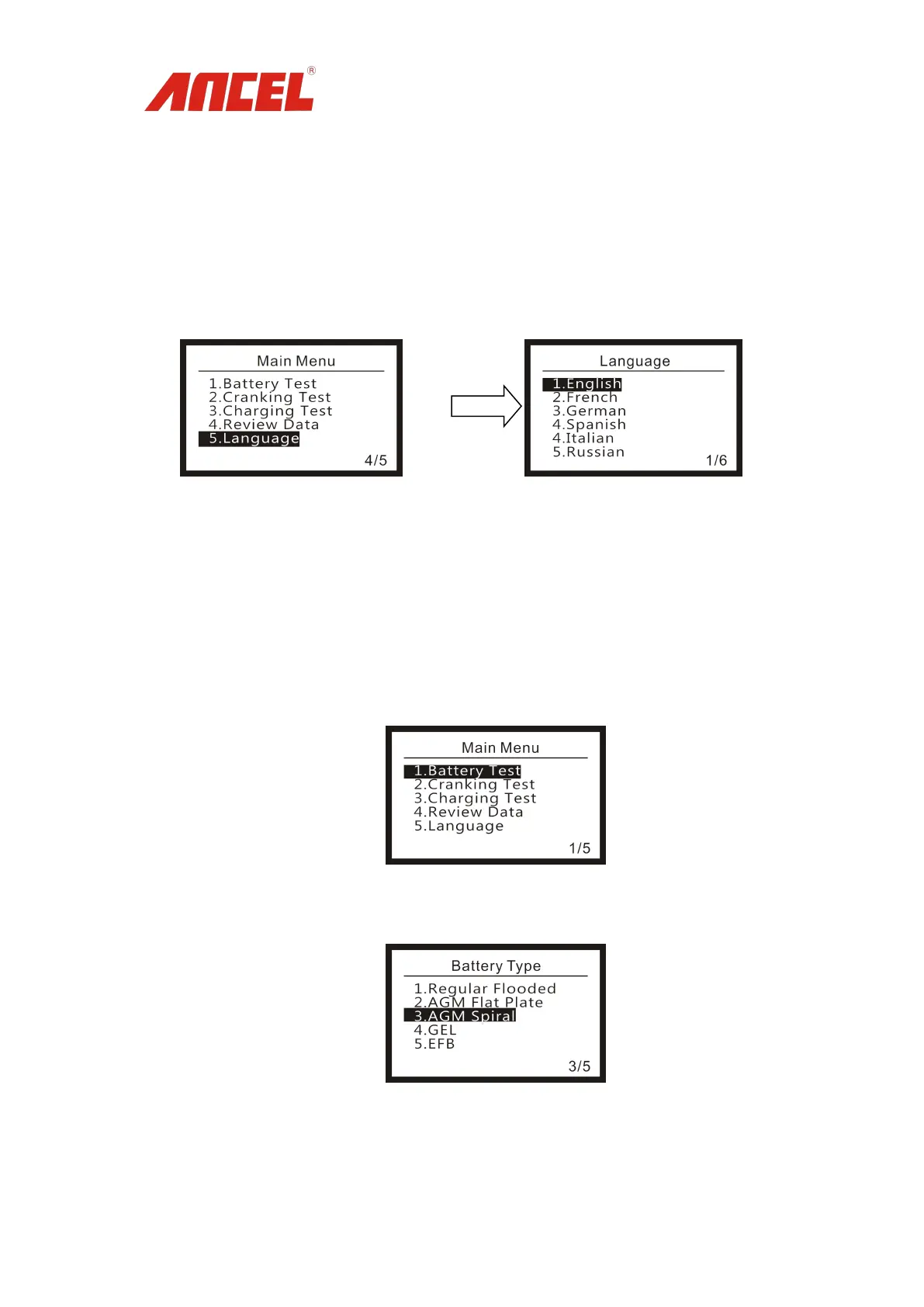

Select language as below.
5-1. Battery Test
5-1-1.
If the engine is running, please turn off the engine first and switch the key to off position. The
voltage value will be higher than the normal situation due to the checked battery is fully charged
after the vehicle runs for a while. Please turn on the headlights for 2 to 3 minutes, then check the
battery when it’s voltage value drops to the normal value.
5-1-2.
Press <▲> <▼> to select “1. Battery Test” and press <ENTER> to continue.
5-1-3.
Press <▲> <▼> to select “Battery Type” and press <ENTER> to continue.
5-1-4.
Press <▲> <▼> to select testing standard which is displayed on the battery rating label, and press
<ENTER> to continue.
