BST100 MANUAL
4
5-1-5.

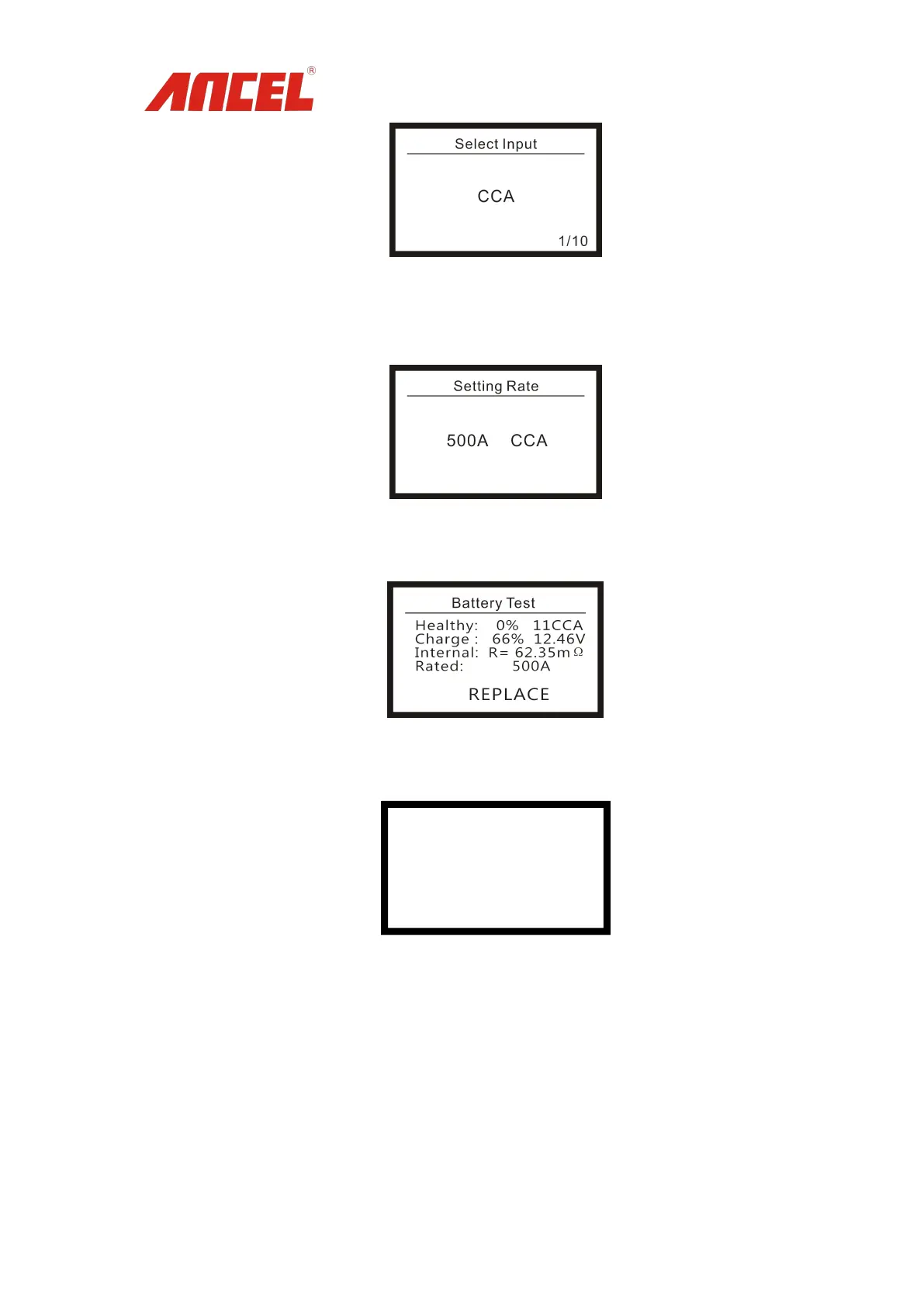

Press <▲> <▼> to select battery rating value which is displayed on the battery rating label.
5-1-6.
Press <ENTER> to start Battery Test. The test result will be displayed as below.
5-1-7.
Press <ESC> to return to main menu as below.
TESTER RESET
5-2. Cranking Test
5-2-1.
The engine and all other accessory loads must be off during test to obtain accurate result.
5-2-2.
Press <▲> <▼> to select “2. Cranking Test” .
